2 Installing Components

This chapter describes how to install components.

2.1 Install Antenna (optional)

If the selected ED-IPC3600 series device includes 4G and Wi-Fi functions, the antenna need to be installed before using the device.

Preparation:

The corresponding antennas have been obtained from the packaging box. If there are multiple antennas, they can be distinguished by the labels on the antennas.

Steps:

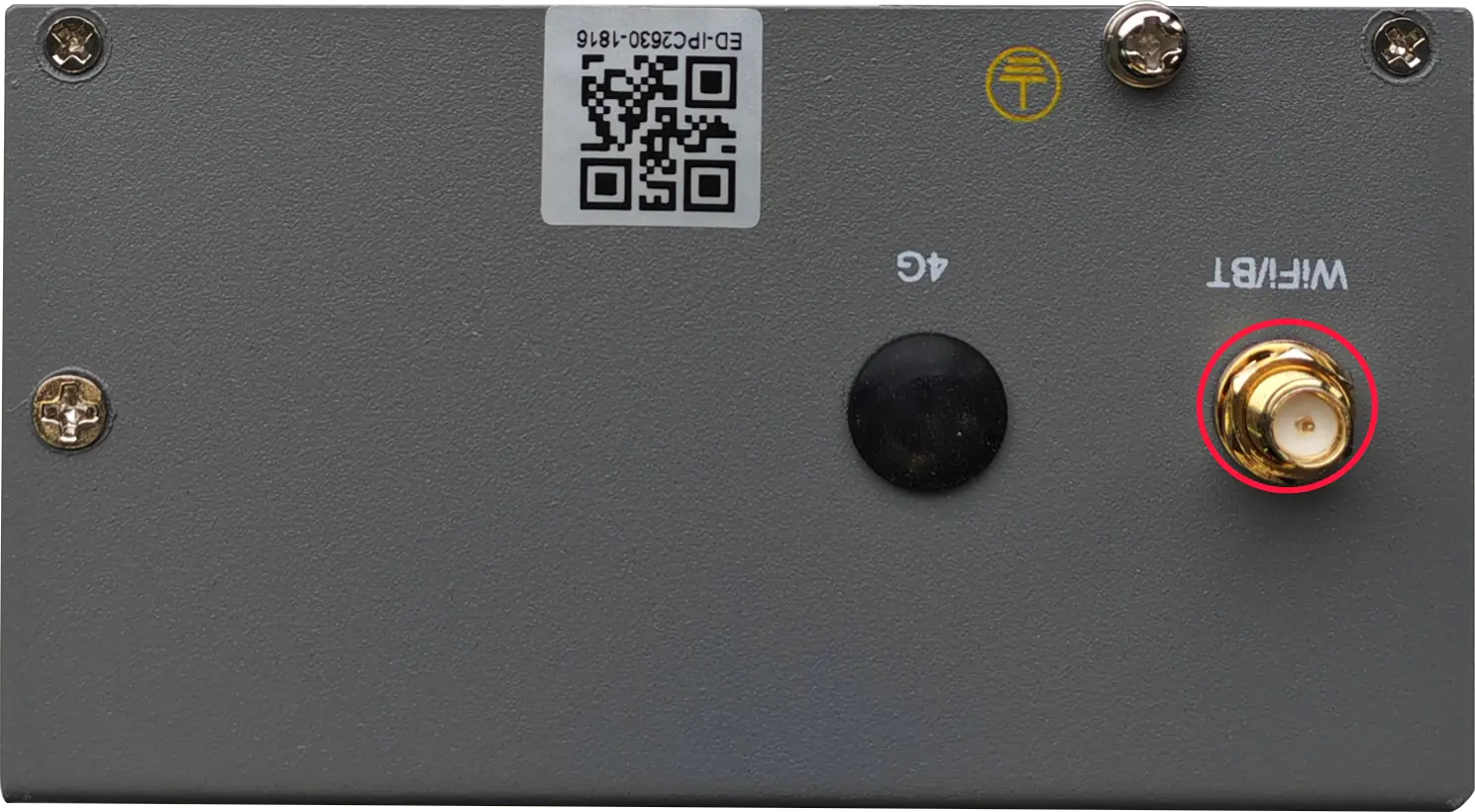

  1. Locate the antenna port where the antenna is to be installed, as shown in the red box in the figure below.
  1. Align the ports on both sides of the device and the antenna, then tighten them clockwise to ensure that they will not fall off.

2.2 Install Micro SD Card

Preparation:

The Micro SD card has been obtained.

Steps:

  1. Locate the Micro SD card slot where the Micro SD is to be installed, as shown in the red box below.

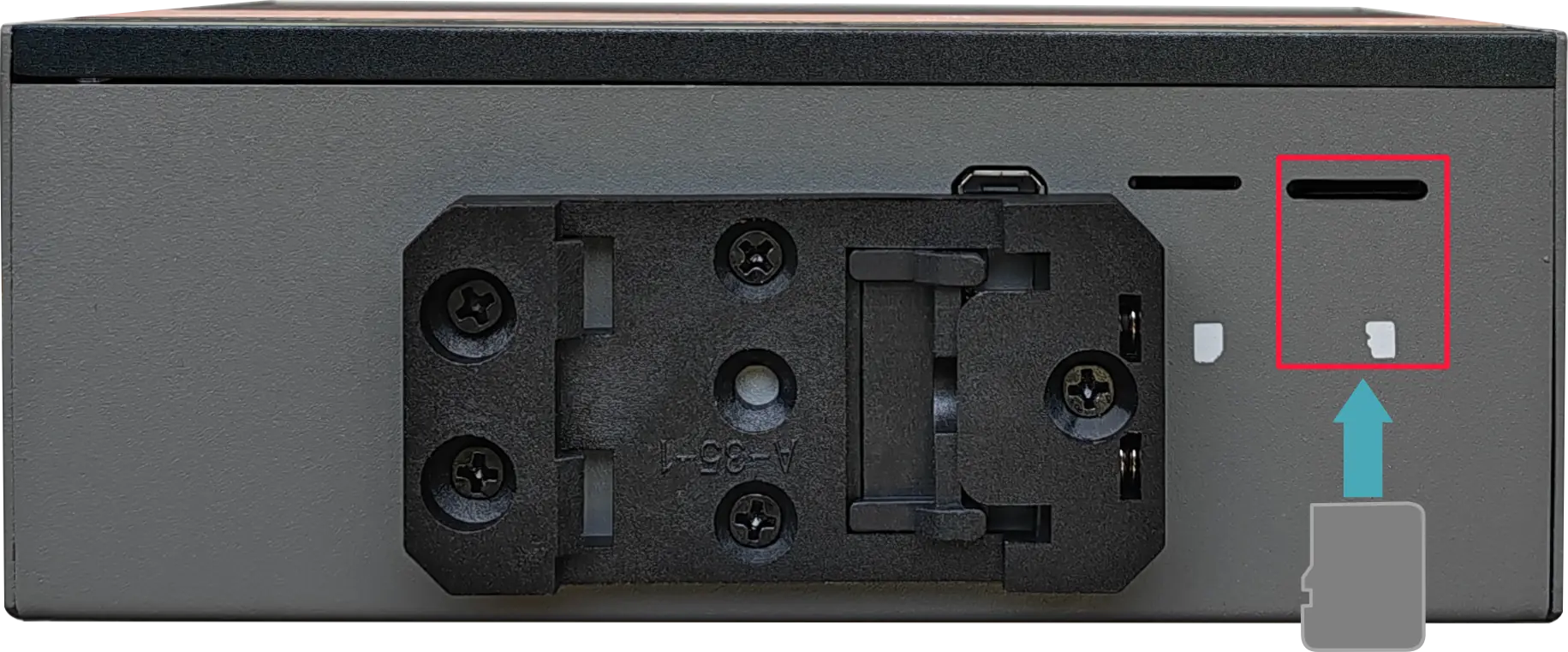

  1. Insert the Micro SD card with the chip side up into the corresponding card slot, and hear a sound to indicate that the installation is complete.

2.3 Install Nano SIM Card (optional)

If the selected ED-IPC3600 series device includes 4G function, the SIM card need to be installed before using the device.

Preparation:

The 4G Nano SIM card has been obtained.

Steps:

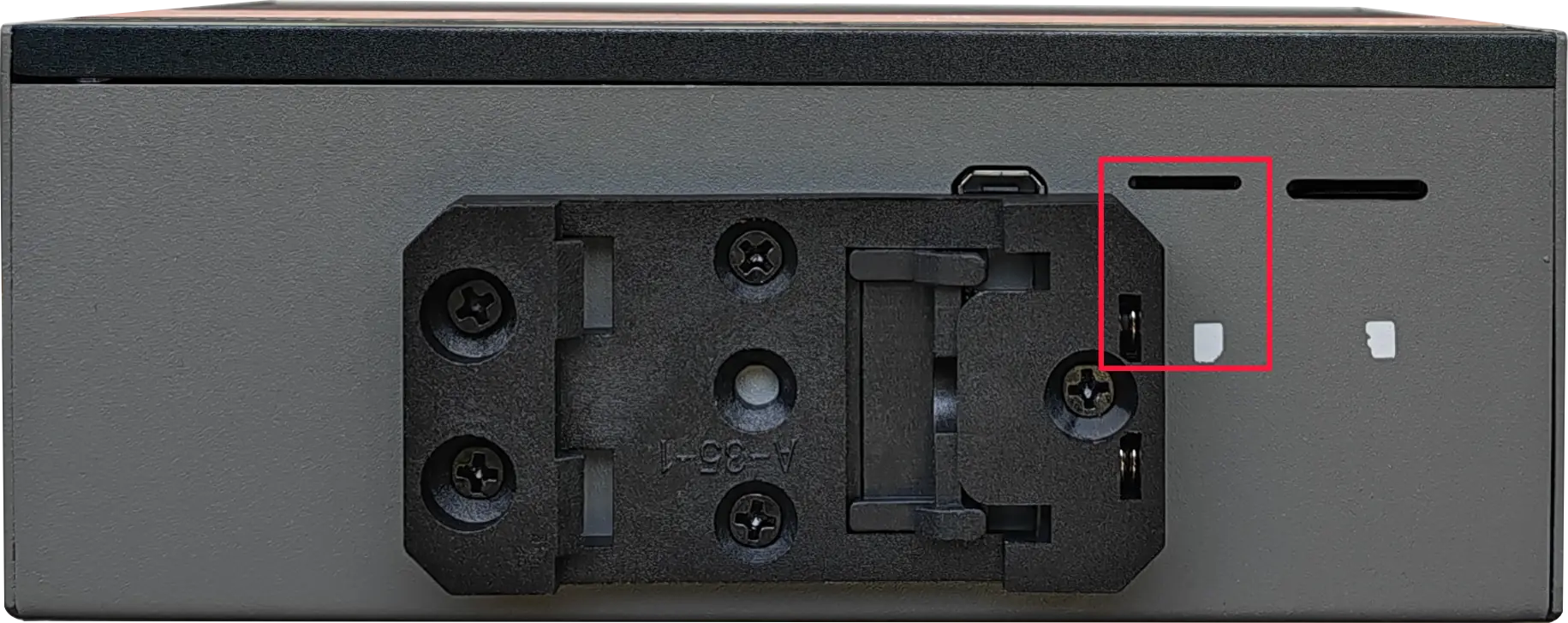

  1. Locate the Nano SIM card slot where the Nano SIM card is to be installed, as shown in the red box below.

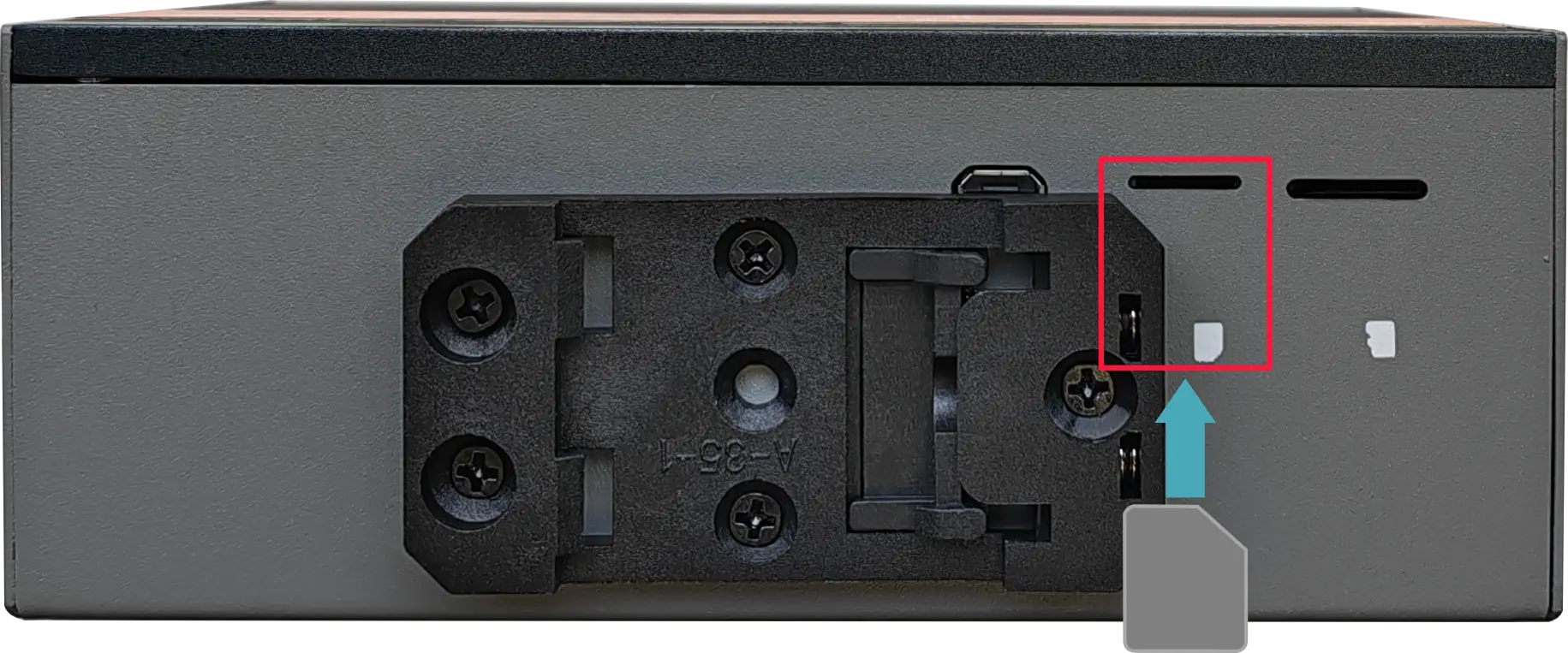

  1. Insert the Nano SIM card with the chip side up into the corresponding card slot, and hear a sound to indicate that the installation is complete.
