3 Installing Device

ED-HMI3630-133C device supports ​front embedded installation. The standard packaging includes the embedded installation Mounting kit (ED-ACCHMI-Front).

Preparation：

  • The ​ED-ACCHMI-Front Mounting kit has been acquired (includes ​4 × M4*10 screws, ​4 × M4*16 screws, and ​4 buckles).

  • A cross screwdriver has been prepared.

Steps：

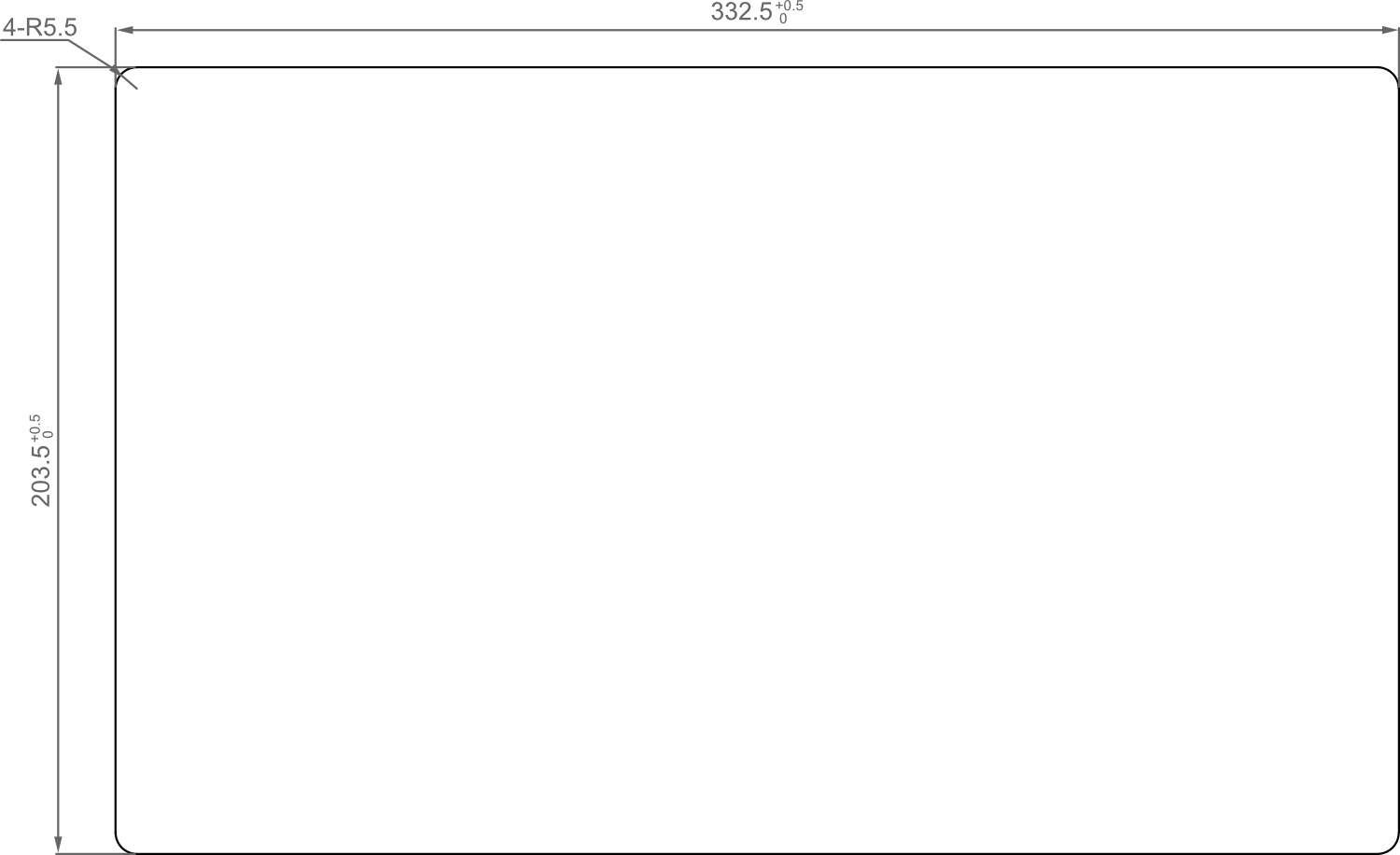

  1. Determine the cutout dimensions on the cabinet based on the ED-HMI3630-133C’s size, as shown in the figure below.

Unit: mm

install-1

  1. Drill a hole on the cabinet according to the aperture size defined in Step 1.

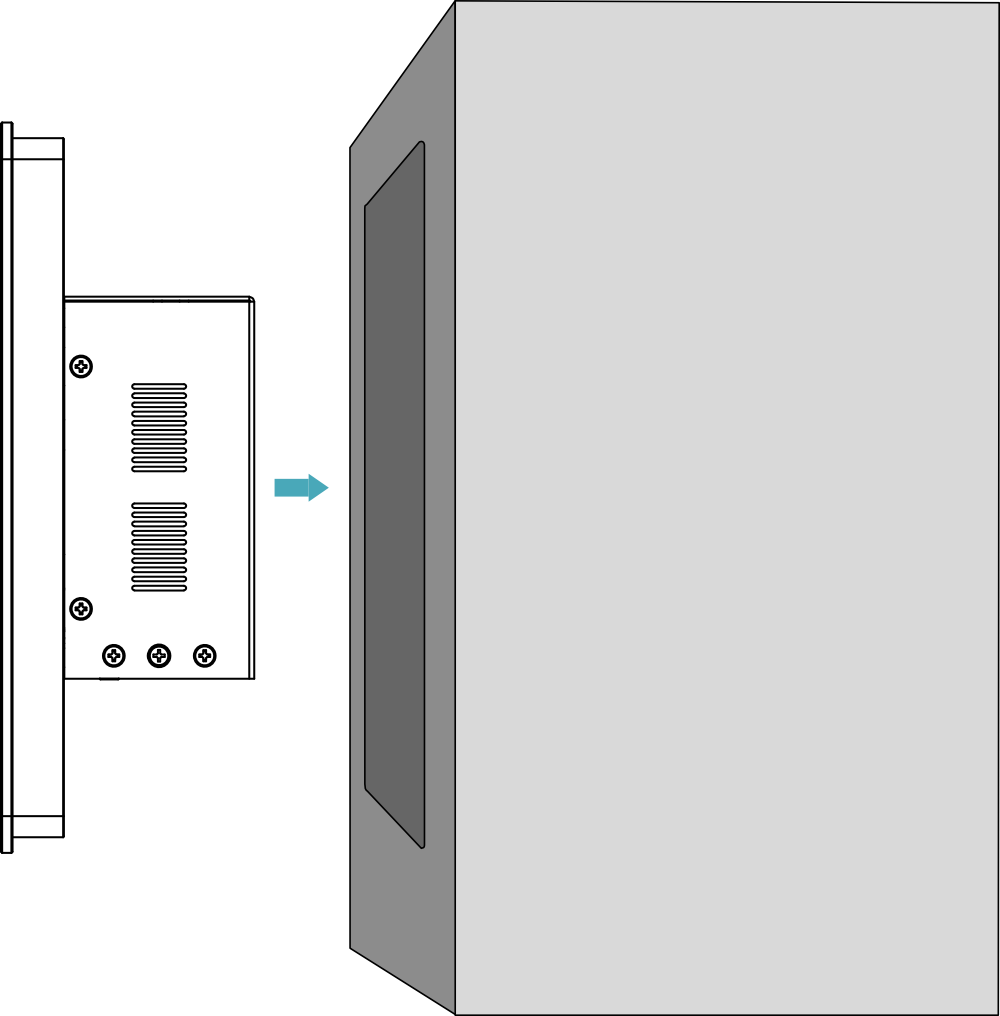

  2. Embed the ED-HMI3630-133C into the cabinet from the exterior side.

    install-2

  3. Align the screw hole (unthreaded hole) of the buckles with the buckle mounting holes on the device side.

    install-3

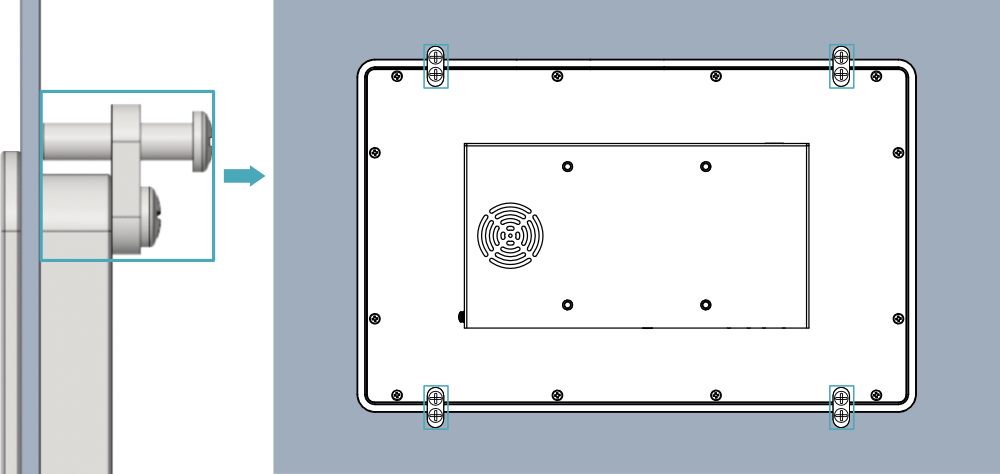

  4. Insert four M4*10 screws through the unthreaded holes of the buckle. Tighten clockwise with a screwdriver to secure the buckle to the device. Then, insert four M4*16 screws through the threaded holes of the buckle. Press them against the inner surface of the cabinet chassis and drive clockwise with a screwdriver until full thread engagement is achieved.

install-4
