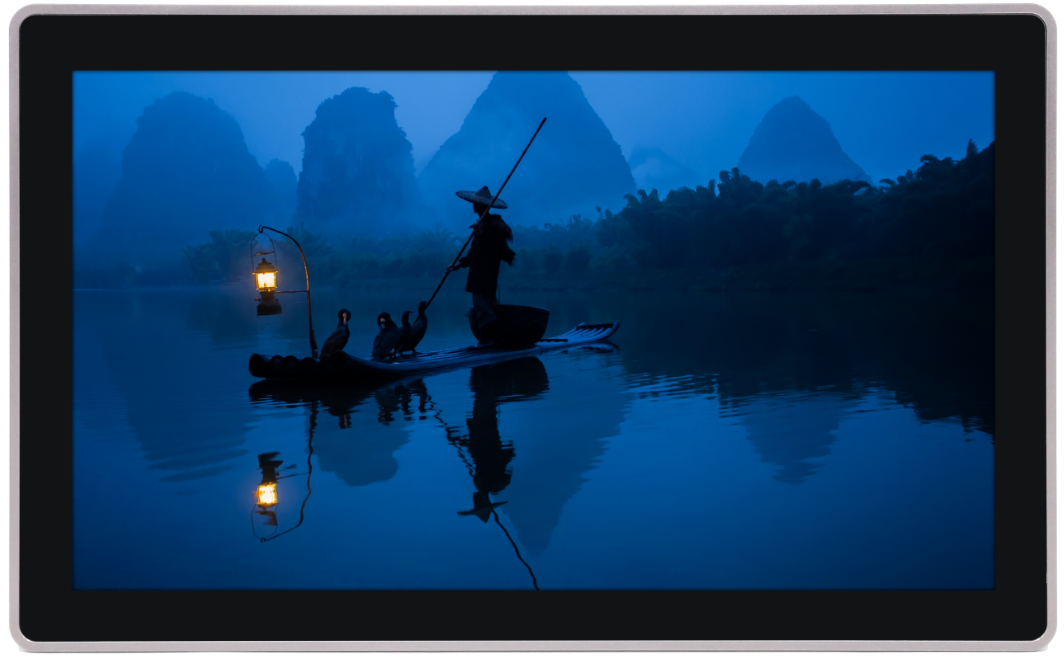

13.3-inch Industrial HMI Based on Raspberry Pi 5
- 13.3" TFT, resolution 1920x1080, multi-point capacitive touch screen
- Broadcom BCM2712 2.4GHz quad-core 64-bit Arm Cortex-A76 CPU
- Up to 16GB LPDDR4 RAM, 64GB SD Card storage
- 1 x Gigabit ethernet port, 2 x USB 3.0, 2 x USB 2.0
- 1 stereo audio output, support headphone and speaker
- 12V power input on DC Jack connector
- Support backlight adjustment via DDCUI software
- Embedded installation, compatible with VESA standard bracket installation
|  |
| System |
|---|
| CPU | Broadcom BCM2712 2.4GHz quad-core 64-bit Arm Cortex-A76 |
| VPU | H.265 (HEVC), up to 4Kp60 decode |
| GPU | OpenGL ES 3.1 & Vulkan 1.2 |
| Memory | Options for 8GB, 16GB LPDDR4X-4267 |
| Storage | 64GB SD Storage Card |
| Software |
|---|
| Operating System | Raspberry Pi OS (Desktop) 64-bit
Raspberry Pi OS (Lite) 64-bit |
| Side I/O |
|---|
| 1000M Ethernet | 1 x adaptive 10/100/1000M ethernet port, RJ45 connector. It can be used to access the network. |
| USB 2.0 | 2 x USB 2.0 ports, dual layer Type-A connector, each channel supports up to 480Mbps transmission rate. |
| USB 3.0 | 2 x USB 3.0 ports, dual layer Type-A connector, each channel supports up to 5Gbps transmission rate. |
| Audio | 1 x 3.5mm audio jack, stereo audio output |
| Speaker | 1 x PA output, built-in a 4Ω 5W speaker. |
| Power | 1 x DC Jack port, support 12V power input. |
| SD Card Slot | 1 x Micro SD card slot, which is used to install Micro SD card. It supports booting the OS from SD card. |
| Buttons and Indicators |
|---|
| PWR | 1 x Red power indicator, using to check the status of device power-on and power-off. |
| PWR/ACT | 1 x Power/System status indicator, red and green, using to view the status of device power-up and system read/write. |
| Brightness Adjustment Button | 2 x Brightness adjustment buttons for increasing and decreasing the brightness. |
| Volume Adjustment Button | 2 x Volume adjustment buttons for increasing and decreasing the volume. |
| Mute Button | 1 x Mute button for mute and unmute audio. |
| ON/OFF Button | 1 x power button, which is used to turn on and turn off the device. |
| LCD |
|---|
| Type | 13.3" TFT |
| Resolution | 1920 x 1080 |
| Color Number | 16.7M |
| Active Area | 293.76mm (H) x 165.24mm (V) |
| Backlight | LED |
| Luminance | 450cd/m2 |
| Contrast Ratio | 1500:1 |
| Response Time | 25ms |
| Viewing Angle (CR≥10) | 80° (L) / 80° (R) / 80° (U) / 80° (D) |
| Touch Screen |
|---|
| Type | Capacitive Touch Screen |
| multi-touch | Up to 5 points |
| Communication Method | USB |
| Transmittance | ≥83％ |
| Surface Hardness | ≥6H |
| Electrical Characteristics |
|---|
| Input Voltage | 12V DC (±10%) |
| Power Consumption | 33W (Max) |
| Mechanical Characteristics |
|---|
| Dimensions | 340.2mm x 211.2mm x 46.5mm (WxDxH) |
| Weight | About 2.1kg |
| Installation | Embedded front installation and VESA bracket mounting |
| Wireless |
|---|
| Wi-Fi | Dual-band 802.11ac Wi-Fi |
| Bluetooth | Bluetooth 5.0 / Bluetooth Low Energy (BLE) |
| Environmental |
|---|
| Operating Temperature | -20°C ~ 50°C |
| Storage Temperature | -25°C ~ 60°C |
| Ambient humidity | 5% ~ 95% (non-condensing) |
Unit: mm
- 1 x ED-HMI3010-133C Unit
- 1 x Mounting Kit (including 4 x buckles, 4xM4*10 screws and 4xM4*16 screws)
