3 Installing the device

ED-HMI3010-116C device supports ​front embedded installation. The standard packaging includes the embedded installation Mounting kit (ED-ACCHMI-Front).

Preparation:

  • The ​ED-ACCHMI-Front Mounting kit has been acquired (includes ​4 × M4*10 screws, ​4 × M4*16 screws, and ​4 snaps).
  • A cross screwdriver has been prepared.

Steps:

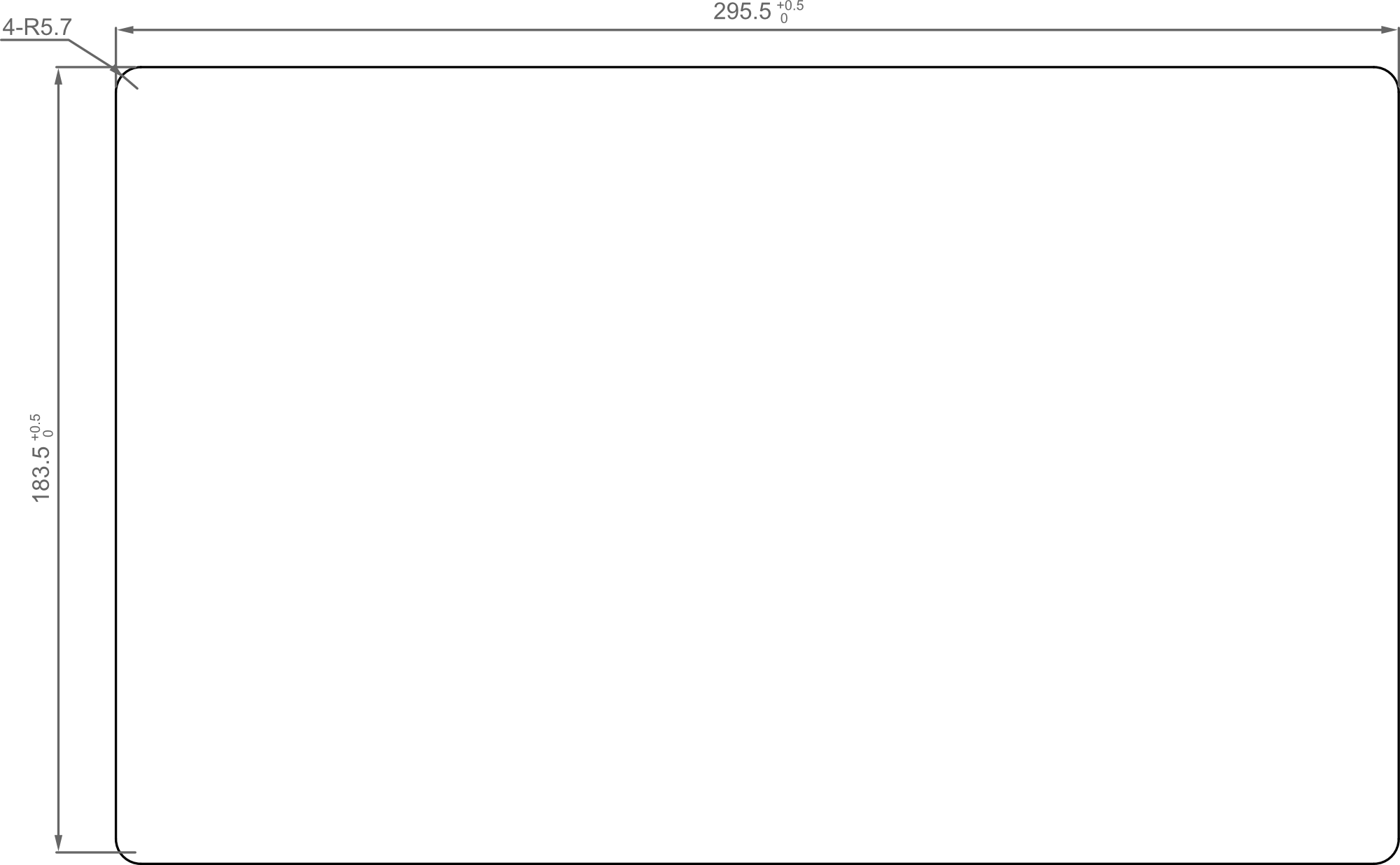

  1. Determine the cutout dimensions on the cabinet based on the ED-HMI3010-116C’s size, as shown in the figure below.

Unit: mm

1

  1. Drill holes on the cabinet according to the aperture size defined in Step 1.

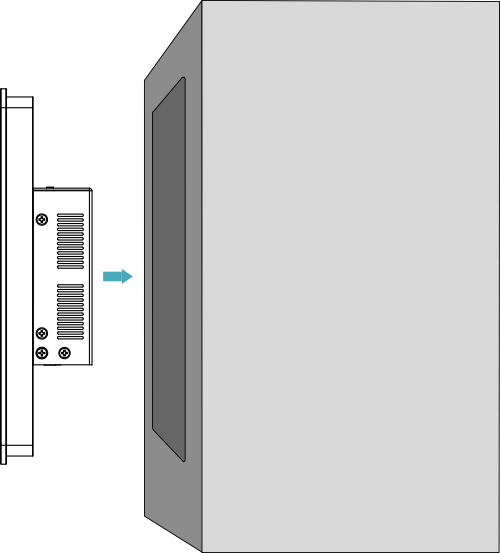

  2. Embed the ED-HMI3010-116C into the cabinet from the exterior side.

2
  1. Align the screw holes (non-threaded) of the snaps with the snap mounting holes on the device side.
3

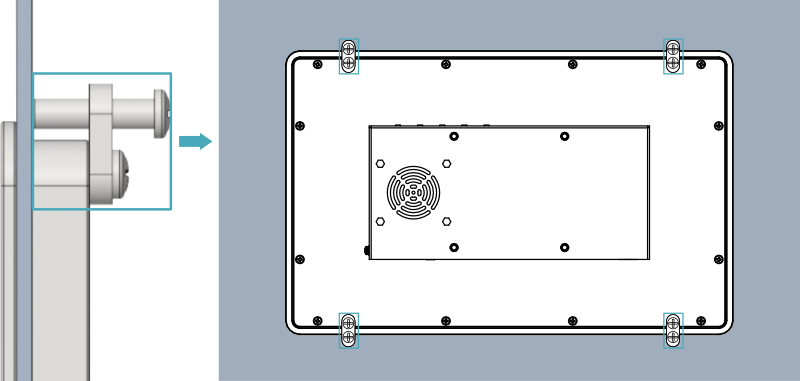

  1. Secure the snaps to the device.
  • Use ​4 × M4*10 screws to fasten the snaps to the device by threading them through the non-threaded holes and tightening them clockwise.
  • Then, use ​4 × M4*16 screws to secure the snaps to the cabinet: Insert them through the threaded holes of the snaps, press against the interior side of the cabinet, and thread them clockwise until fully tightened.
4
