2 Product Appearance and Structure

Introduces the physical appearance and structural features of the product.

2.1 Product Appearance

Describes the exterior design and interfaces of the product.

TIP

The mounting tabs shown in the illustration are for reference only and are not included as standard.

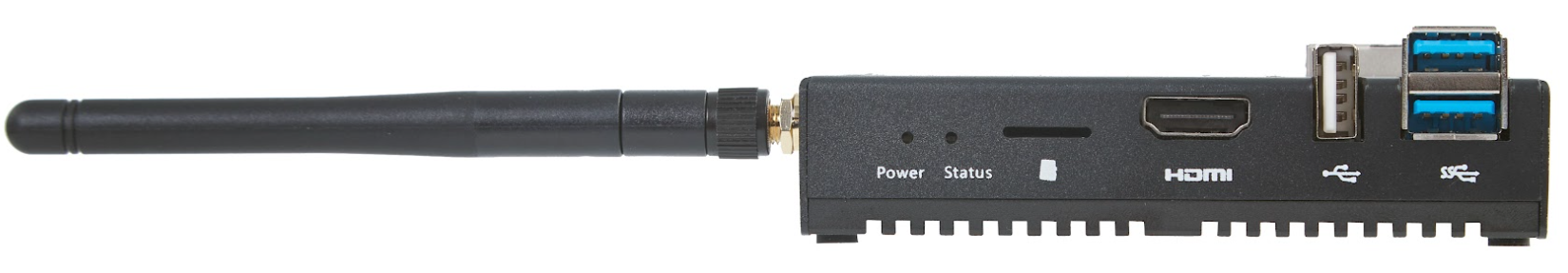

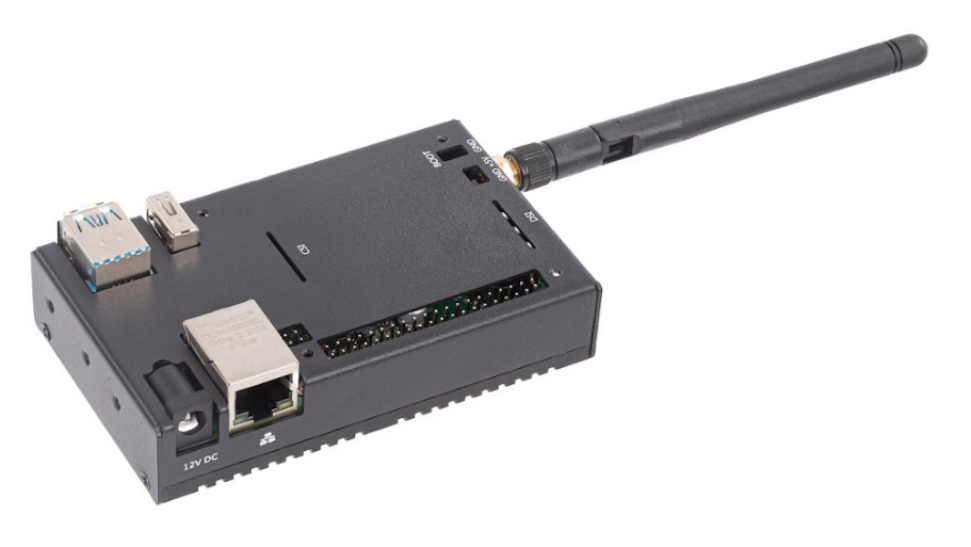

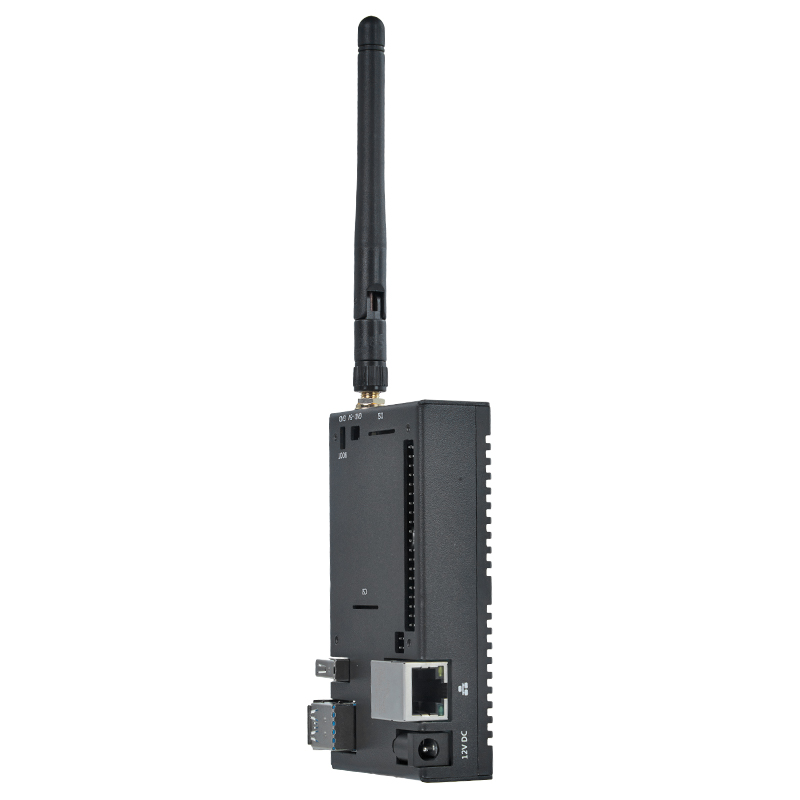

2.2 Product Photos

Physical product images from multiple perspectives.

2.3 Dimensions

unit: mm，tolerance：±0.1mm

2.4 Installation

The ED-CM4NANO supports DIN rail mounting. The standard package does not include the rail mounting bracket (ED-ACC-DRBNANO). Please purchase the ED-ACC-DRBNANO bracket before installation. For specific installation steps, refer to ED-ACC-DRBNANO Installation.
