3 Booting the Device

This chapter introduces how to connect cables and boot the device.

3.1 Connecting Cables

This section describes how to connect cables.

Preparation:

  • The 8-core Gigabit Ethernet port to RJ45 cable and 12-core power IO cable to be connected have been obtained.

  • A DC 24V 2A power adapter and auxiliary wiring connector have been prepared.

  • Prepare the connectors and wiring tools required for the 12-core power IO cable as needed.

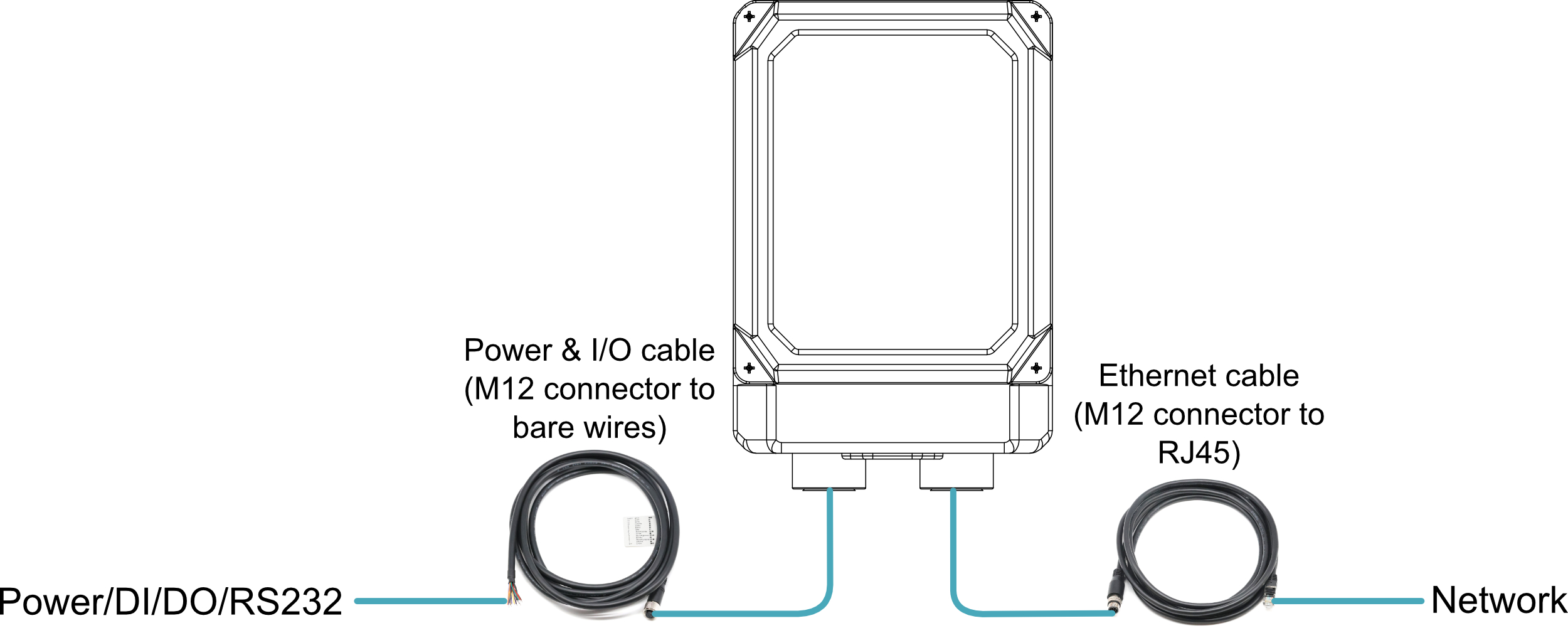

Schematic diagram of connecting cables:

For the pin definitions and wiring methods of each interface, see 1.6 Interface.

3.2 Booting The System For The First Time

The ED-AIC3000-120 series equipment has no power switch. After the power is connected, the system will start.

  • The power indicator is always on, indicating that the device is powered normally.

  • The working status indicator light is always on, indicating that the system starts normally.

After the system starts, the default user name and password are used for login. Because the camera cannot be connected to the monitor, it is necessary to log in to the system remotely through the PC.

The factory image of ED-AIC3000-120 series devices enables VNC by default, and sets the device IP to a static IP: 192.168.1.10. Users can remotely connect to the device through VNC and enter the device's desktop system. For specific operations, refer to Connect to the device desktop via vnc.

TIP

Default username: pi; default password: raspberry.
