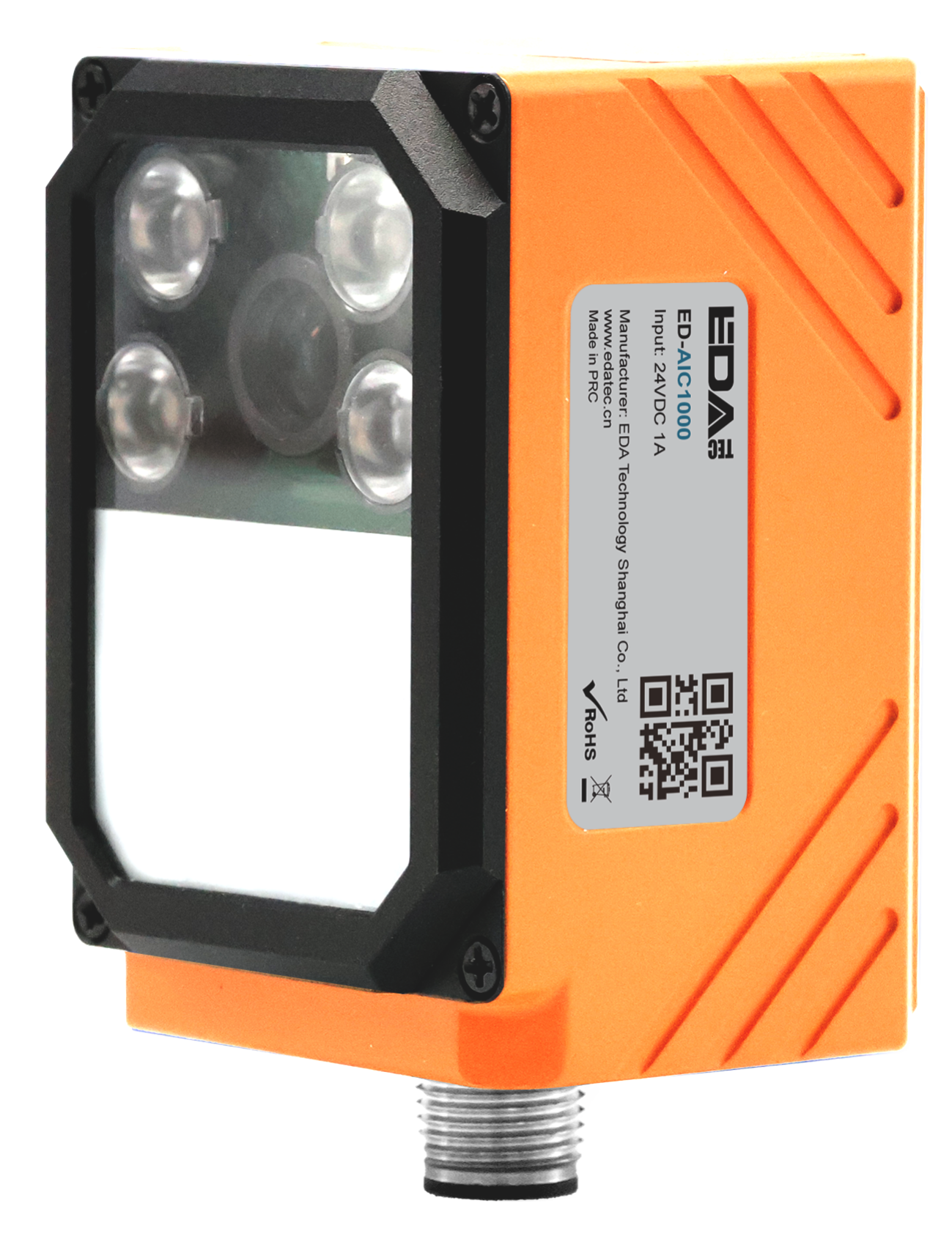

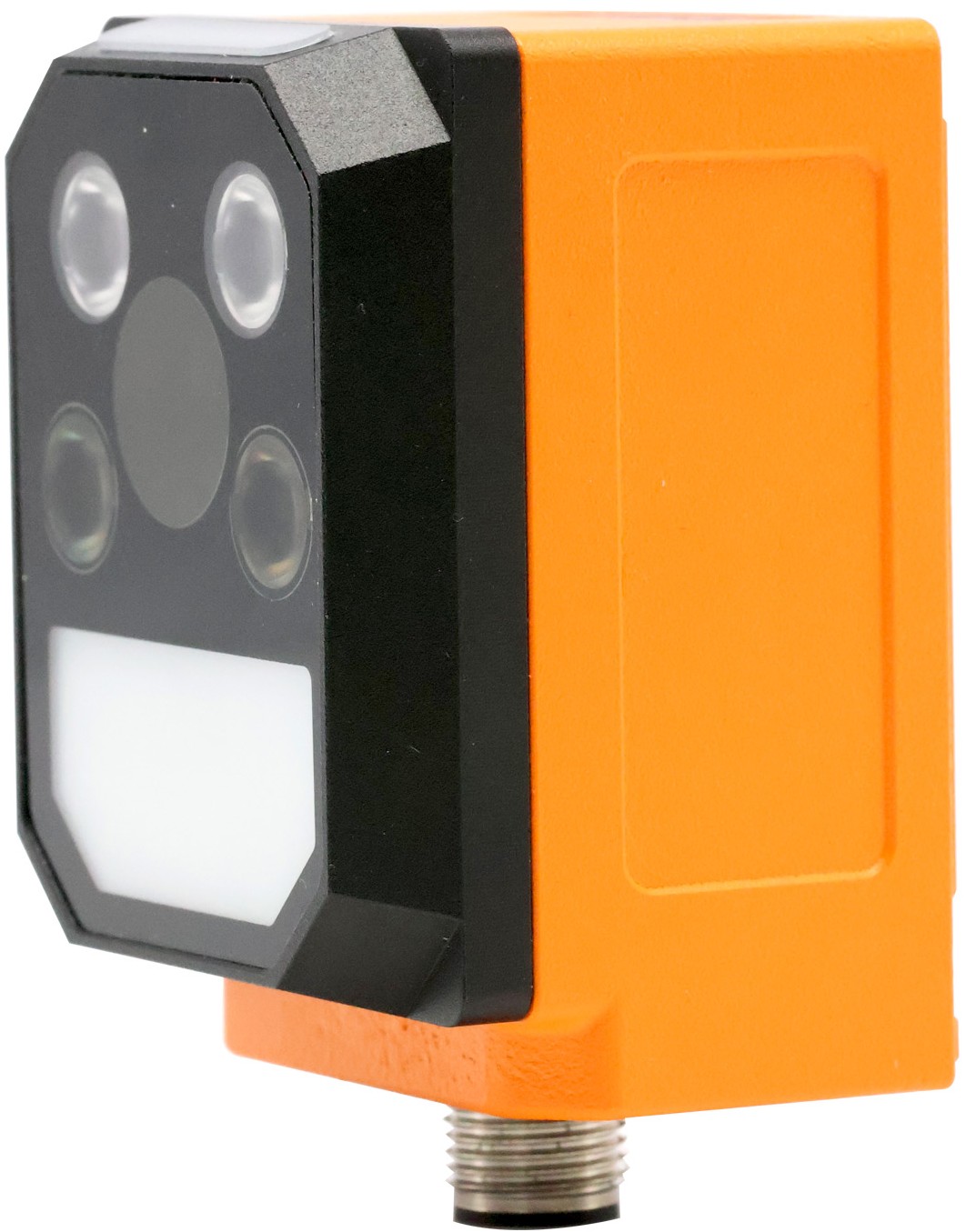

Industrial Smart Camera Based on Raspberry Pi CM0
- 1GHz quad-core 64-bit Arm Cortex-A53 processor
- 512MB SDRAM, 8GB or 16GB eMMC storage available
- Utilizes a 1.3MP image sensor with a sampling rate of up to 120 FPS for ultra-fast image acquisition
- Equipped with a motorized auto-focus module for automatic zoom
- Integrated modular lighting design, with each lighting zone independently controllable
- Optional barcode reading functionality; based on Windows configuration software for easy configuration, deployment, and operation
- Orange industrial aluminum alloy housing, supports bracket mounting
|  |
| System |
|---|
| CPU | 1GHz quad-core 64-bit Arm Cortex-A53 processor |
| VPU | H.264/MPEG-4 video decoding, 1080p@30fps
H.264 encoding, 1080p@30fps |
| GPU | OpenGL ES 1.1/2.0 graphics processing |
| Memory | 512MB SDRAM |
| Storage | 8GB or 16GB eMMC storage available |
| Software |
|---|
| Operating System | Raspberry Pi OS (Lite) 64-bit-bookworm (Debian 12) |
| Communication Protocols | Modbus TCP, TCP/IP, and UDP |
| Panel I/O |
|---|
| Power & I/O (12-Pin) | 1 x Power & I/O Connector, 12-Pin aviation connector. External signals are accessed via a Power & I/O Cable (12-Pin M12 female to bare wire/RJ45), including power input, 100M Ethernet, RS232, trigger, and DO. - 1 x DC IN: 2-Pin, supports DC 24V input, signal definition DC-/DC+
- 1 x 100M Ethernet: 4-Pin, signal definition TX+/TX-/Rx+/RX-
- 1 x RS232: 2-Pin, signal definition RS232_TX/RS232_RX
- 1 x DO: 2-Pin, signal definition DO/COMMON_OUT
- 1 x Trigger: External trigger signal, 2-Pin, signal definition Trigger/COMMON_IN
|
| Indicator |
|---|
| Power | 1 x Power indicator, indicates camera power on/off status |
| Fault | 1 x Fault indicator, indicates camera fault status |
| Status | 1 x Status indicator, indicates camera operational status |
| Network | 1 x Network indicator, indicate network link and data communication status |
| Lighting and Lens |
|---|
| Lighting | 3 lighting zones, default red light, each zone supports independent configuration |
| Lens | Supports optional 6mm, 8mm, or 12mm M12 fixed-focal-length lenses
Includes motorized auto-focus module for automatic focusing
|
| Performance Characteristics |
|---|
| Image Sensor | 1.3MP, Global Shutter |
| Frame Rate | Up to 120 FPS |
| Aiming Point | Red LED round dot |
| Electrical Characteristics |
|---|
| Input Voltage | DC 24V (±10%)
A DC 24V 1A power adapter is recommended. |
| Power Consumption | 24W (Max) |
| Mechanical Characteristics |
|---|
| Dimensions | 75.3mm x 47mm x 46mm |
| Weight | About 120g |
| Installation | Bracket mounting, mounting bracket optional |
| Environmental & Regulatory |
|---|
| Operating Temperature | 0°C ~ 50°C |
| Storage Temperature | -40°C ~ 70°C |
| Ambient Humidity | 5% ~ 90% (non-condensing) |
Unit: mm
| Model | Description | Stocking Level |
|---|
| ED-AIC1000-013G06M-0008100 | 512MB DDR, 8GB eMMC, 1.3MP sensor, global shut, 6mm M12 lens with motorized autofocus and red lighting | Preview |
| ED-AIC1000-013G08M-0008100 | 512MB DDR, 8GB eMMC, 1.3MP sensor, global shut, 8mm M12 lens with motorized autofocus and red lighting | Preview |
| ED-AIC1000-013G12M-0008100 | 512MB DDR, 8GB eMMC, 1.3MP sensor, global shut, 12mm M12 lens with motorized autofocus and red lighting | Preview |
TIP
If you require products with other configurations, please contact our sales team separately.
Optional cables and mounting accessories are available.
| Ordering Code | Description | Picture |
|---|

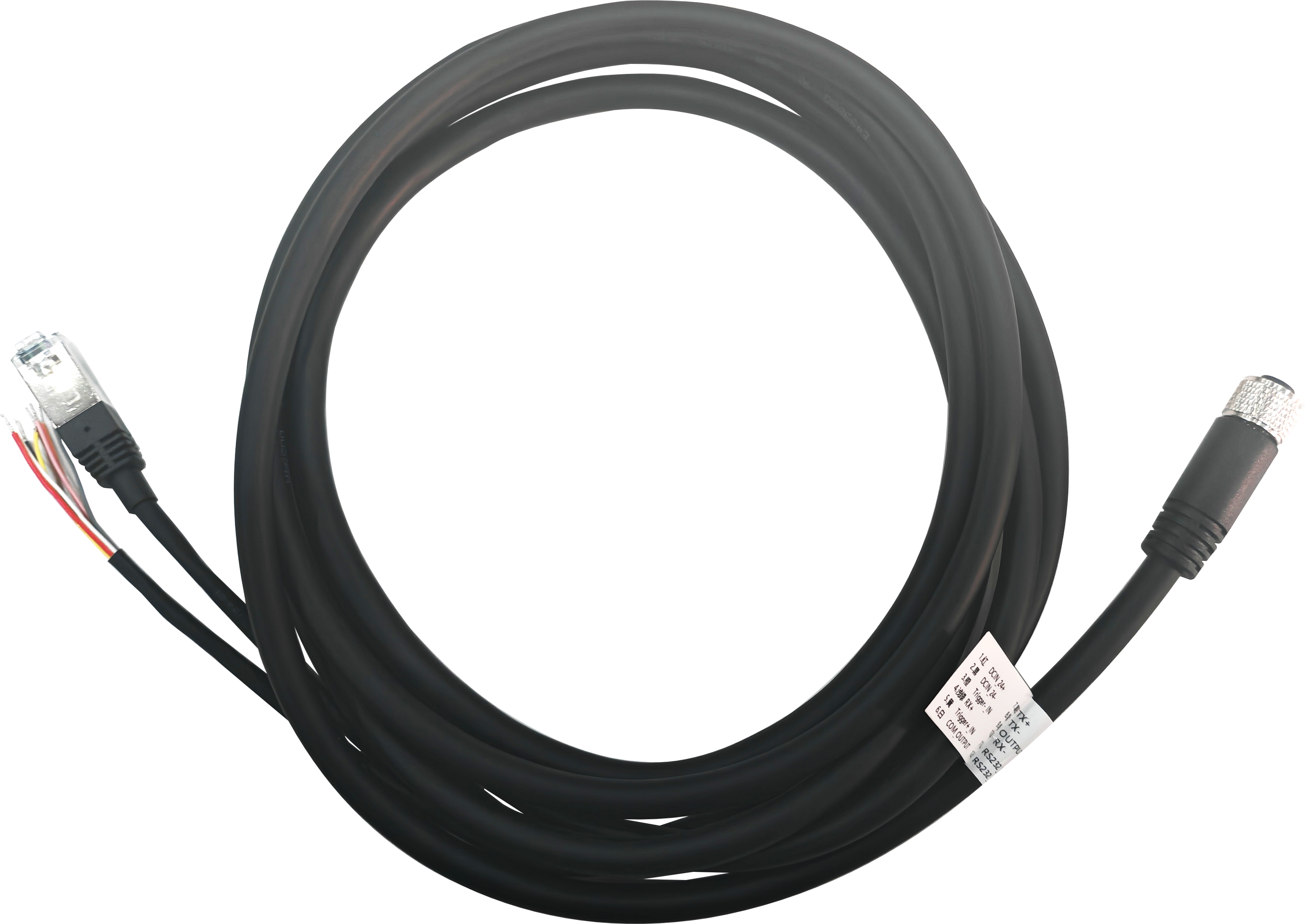

| ED-ACC-AIC-PWR-D-03 | Power & I/O Cable, 12-Pin M12 female to bare wire/RJ45, 3 meters |  |
| ED-ACC-AIC-DW-FIX001 | Mounting Bracket for fixing device
3 x M4*8 Screws (with 3 spring washers and 3 flat washers)
1 x M6*10 Screw (with 1 spring washer and 1 flat washer) |  |
