ED-BKT-LA
Wall-mounted bracket for ED-CM4SEN
Specifications
| Mechanical Characteristics | |
|---|---|
| Material | Galvanized steel sheet + Powder coating process |
| Color | Black |
| Weight | About 16g |
| Installation | Wall-mounted |
| Compatible Model | ED-CM4SEN |

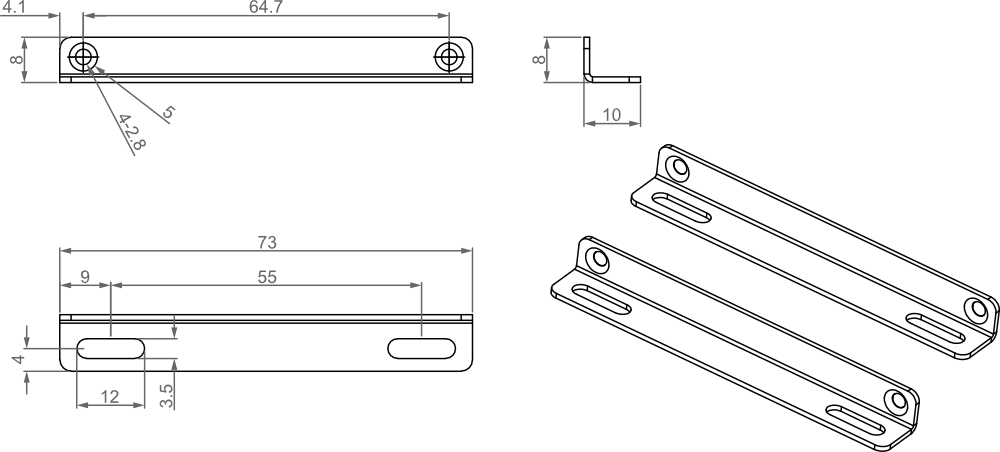

Dimensions
- Unit: mm
- Tolerance: 0.5-6±0.05, 6-30±0.1, 30-120±0.15
Ordering Code
| Model | Description |
|---|---|
| ED-BKT-LA | Wall-mounted bracket for ED-CM4SEN |

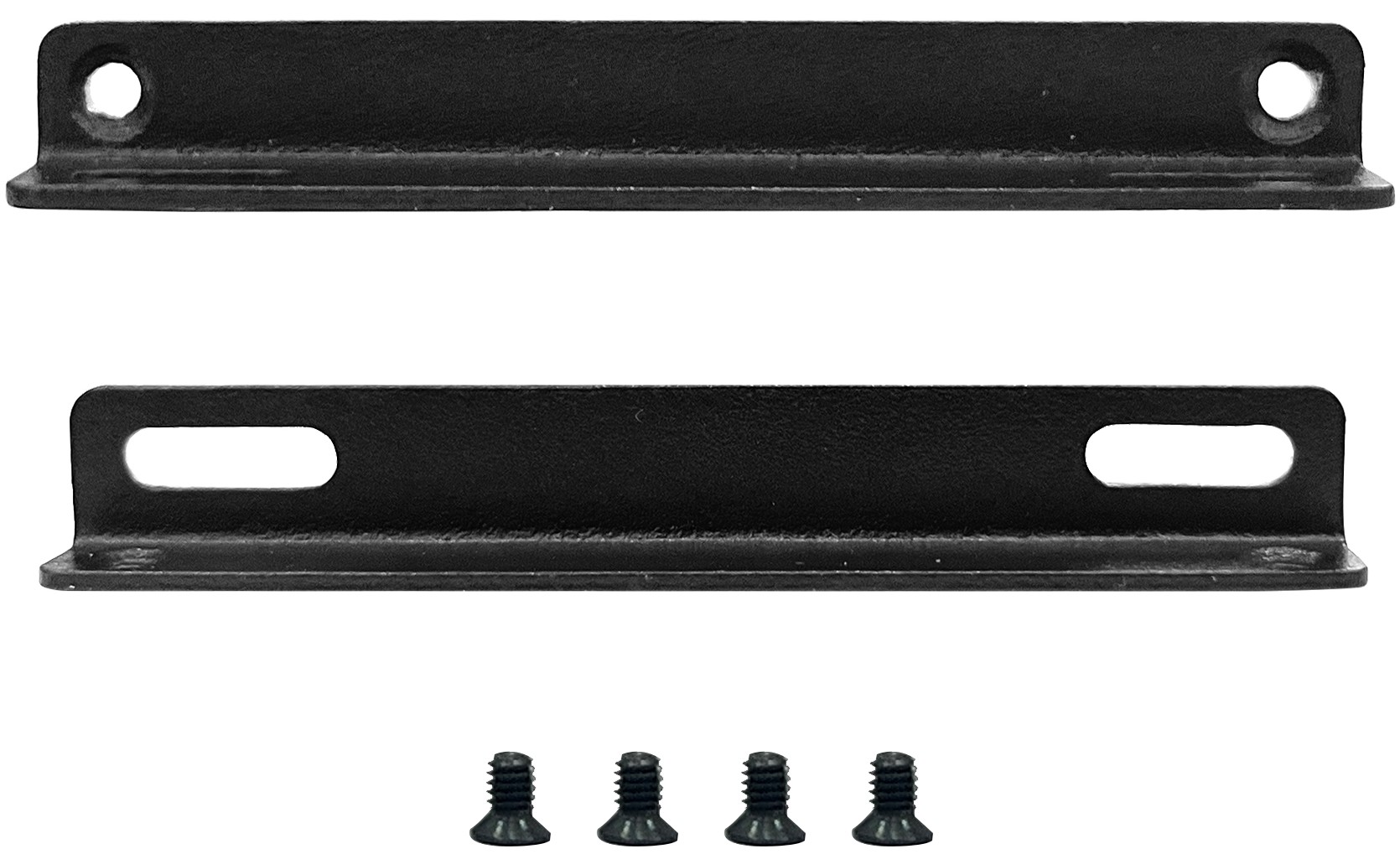

Package Contents
- 1 x ED-BKT-LA (with 4 M2.5*6 screws)
Installation
Parts List
| NO. | Name | Quantity (PCS) |
|---|---|---|
| ① | ED-BKT-LA (includes left and right brackets) | 1 |
| ② | M2.5*6 screw | 4 |
| ③ | ED-CM4SEN (Not provided) | 1 |
Steps

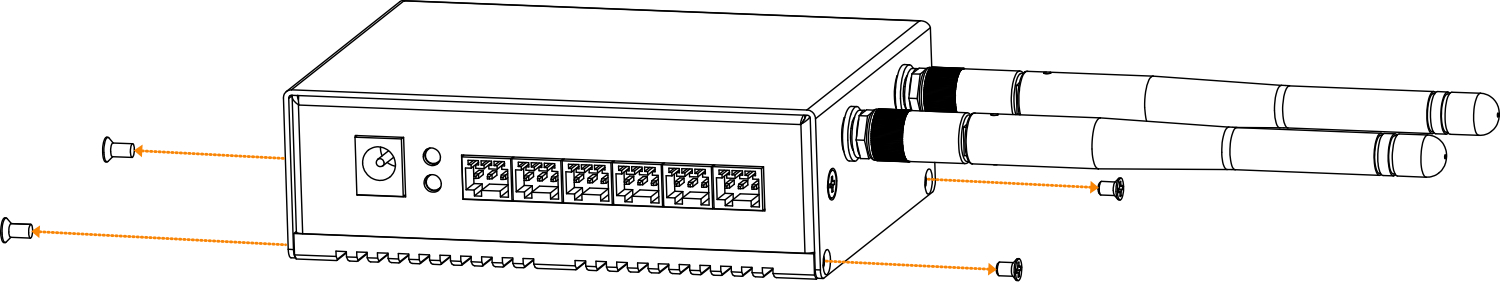

- Use a Phillips screwdriver to unscrew the four M2.5 screws on the side of the ED-CM4SEN counterclockwise.

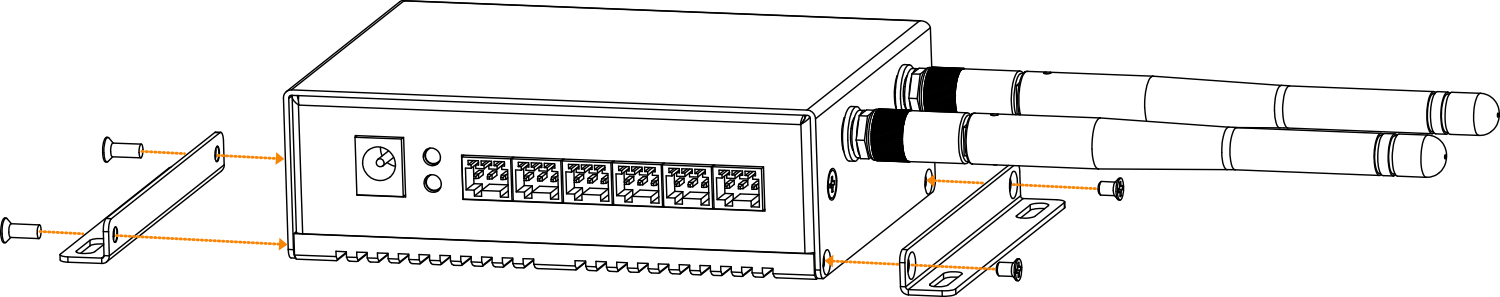

- Align the left and right brackets of the ED-BKT-LA with the screw holes on both sides of the ED-CM4SEN, insert the four M2.5*6 screws, and tighten them clockwise with a Phillips screwdriver to secure the ED-BKT-LA to the sides of the ED-CM4SEN.
TIP
The "four M2.5*6 screws" in this step refer to the screws included as standard with the ED-BKT-LA.

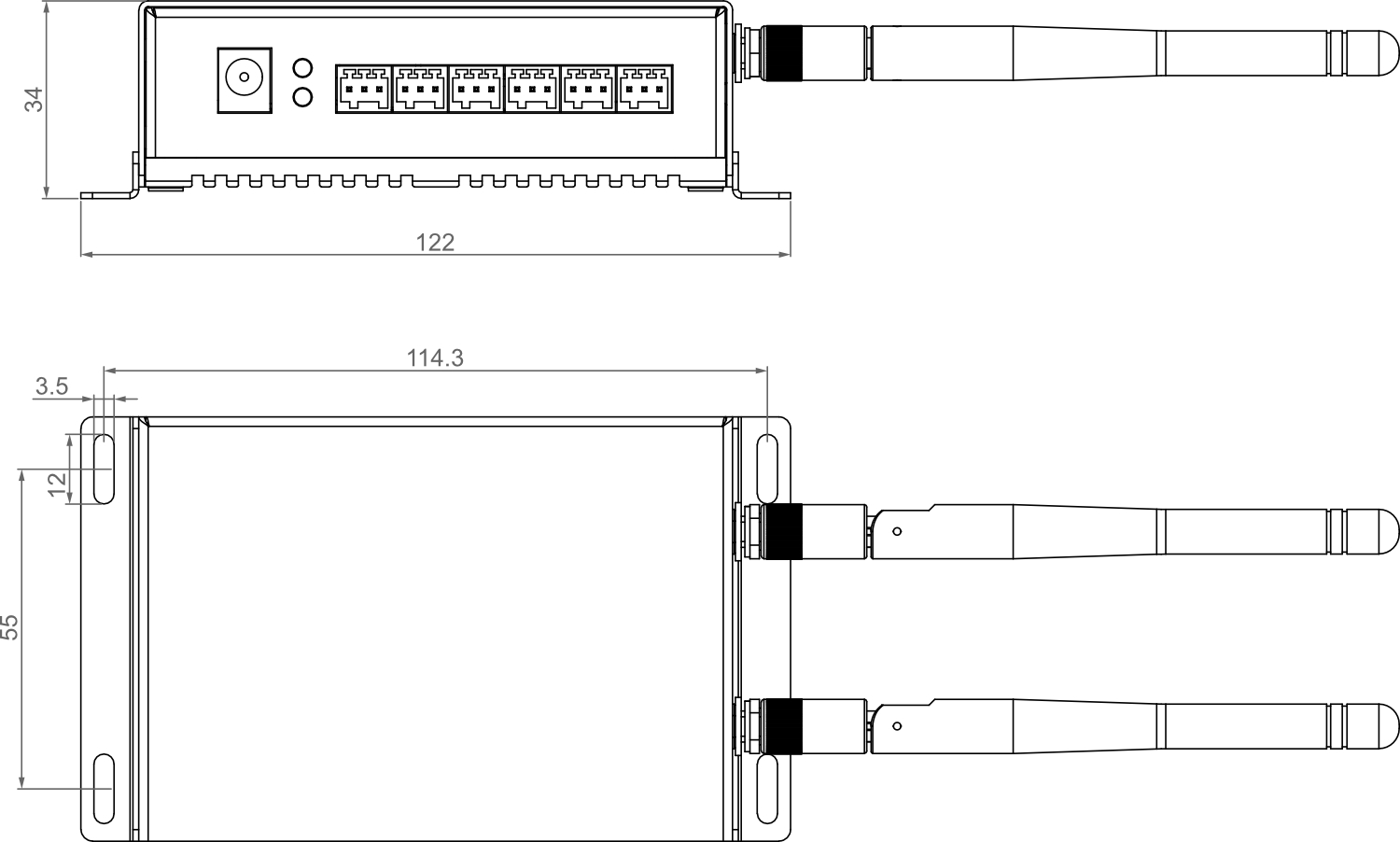

- Based on the spacing and diameter of the wall-mounting screw holes of the ED-BKT-LA left and right brackets (refer to the diagram below), drill holes in the wall accordingly, then proceed with wall-mounted installation of the device.
- Unit: mm
- Tolerance: 0.5-6±0.05, 6-30±0.1, 30-120±0.15
