ED-ANT-B
Dual-Band Wi-Fi Rod Antenna
The ED-ANT-B is a Wi-Fi rod antenna specifically designed for ED-IPC and ED-HMI devices. By installing it to the antenna interface of the device, it can significantly enhance Wi-Fi signal transmission and reception capabilities, thereby effectively improving the stability and reliability of the device's Wi-Fi network connection.
Specifications
| Basic Parameters | |
|---|---|
| Antenna Structure | Rod Antenna |
| Working Frequency | 2400MHz ~ 2500MHz 5150MHz ~ 5850MHz |
| Peak Gain | 2450MHz: 2.5 dBi 5500MHz: 2.8 dBi |
| Antenna Efficiency | 2450MHz: 59.7% 5500MHz: 45.5% |
| VSWR | ≤2 |
| Polarization | Linear Polarization |
| Radiation Pattern | Omni-directional |
| Impedance | 50 ohm |
| Power Handing | 50W dBm |
| Interface | SMA (Female) |
| Overall Dimensions | 108mm x 10mm |
| Weight | About 10g |
| Antenna Input Characteristics Testing | Using the Agilent E5071C vector network analyzer |
| Antenna Radiation Characteristics Testing | Using the SATIMO SG24 chamber |
| Operating Temperature | -35 °C to +75 °C |
| Storing Temperature | -35 °C to +75 °C |

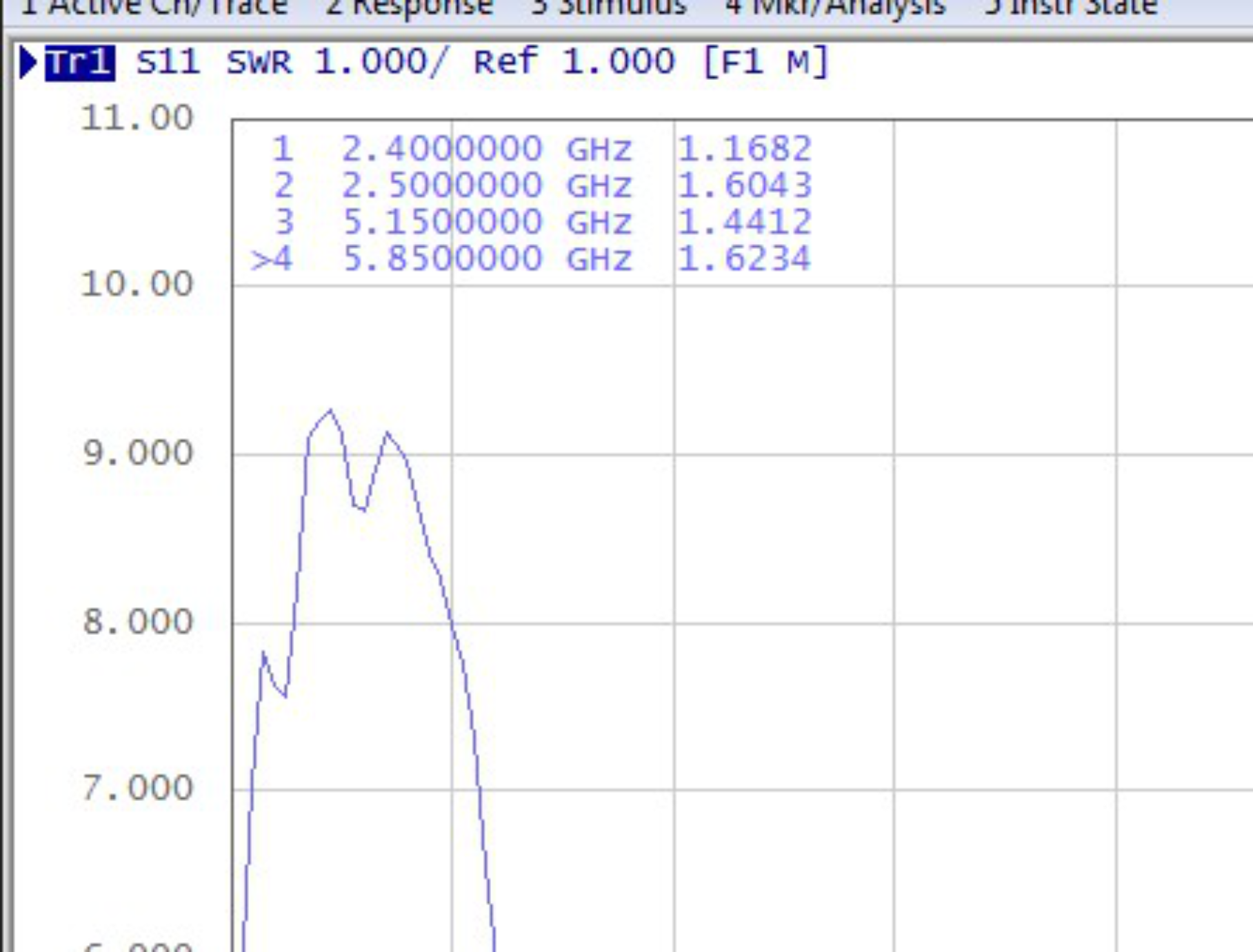

Wireless VSWR Testing

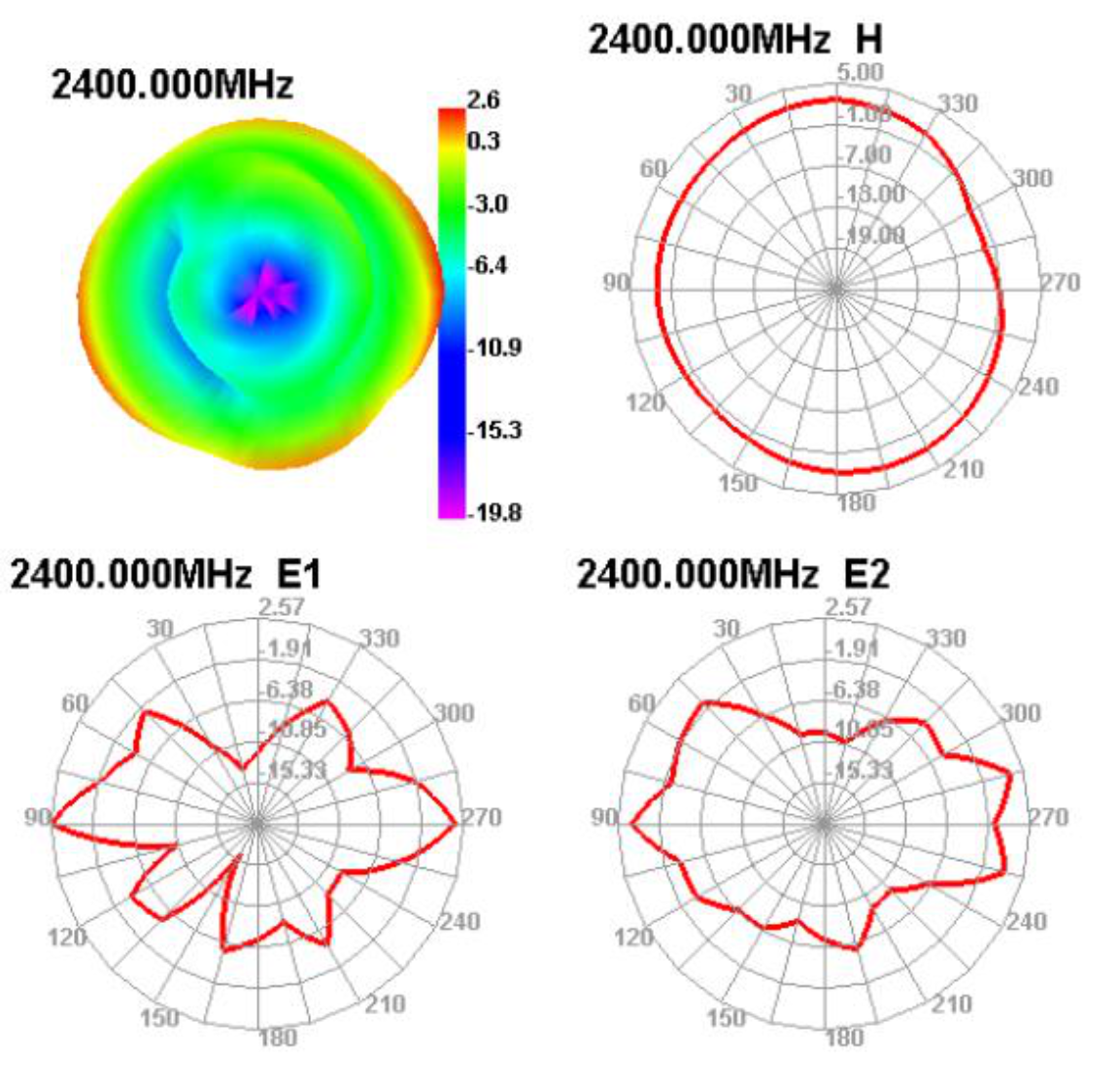

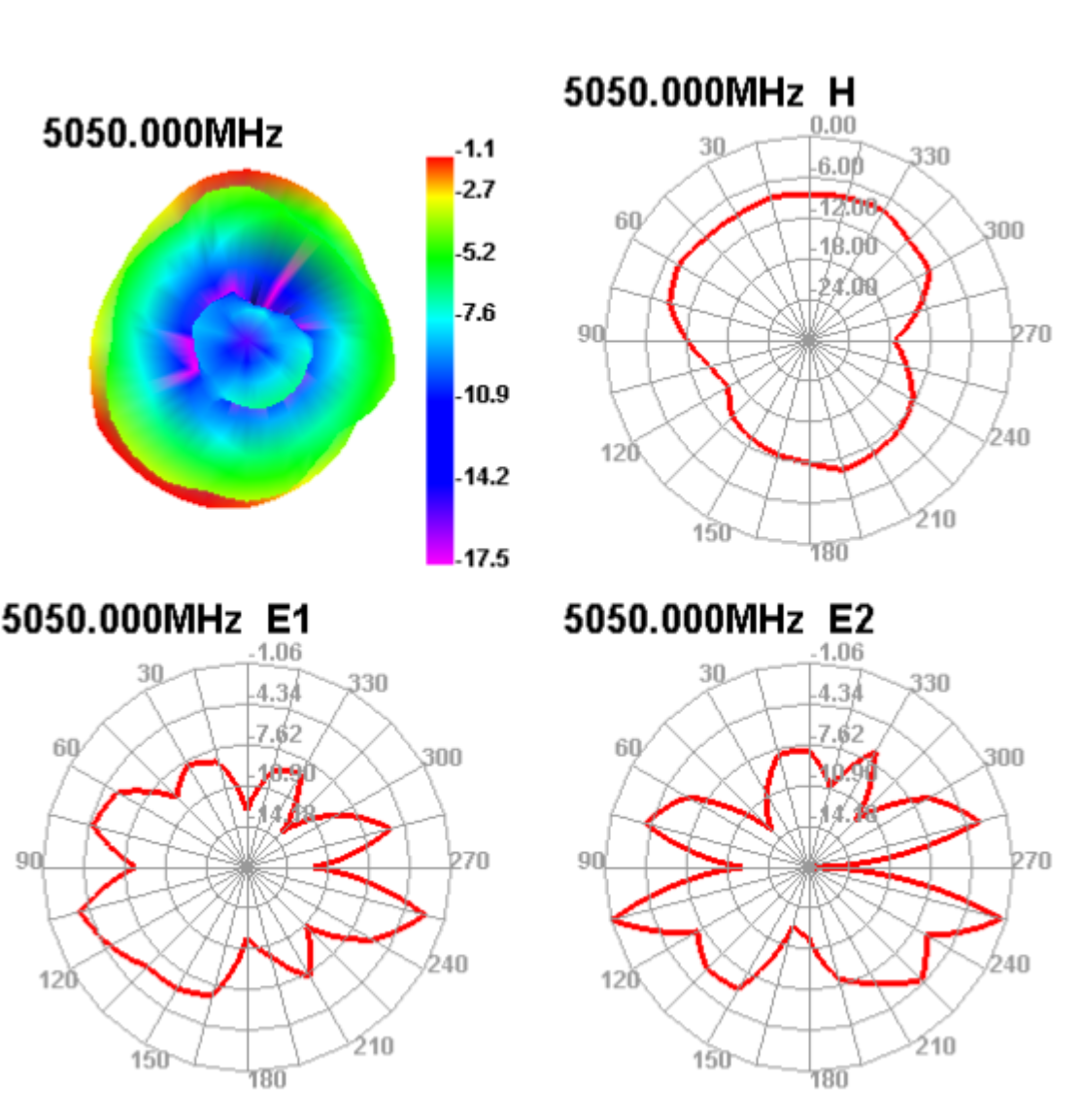

Antenna Radiation Pattern
Efficiency and Gain
| Frequency (MHz) | Gain (dB) | Efficiency (dB) | Efficiency (%) |
|---|---|---|---|
| 2400 | 2.2 | -2.6 | 55.3 |
| 2410 | 2.5 | -2.6 | 55.3 |
| 2420 | 2.7 | -2.4 | 56.9 |
| 2430 | 2.7 | -2.4 | 57.0 |
| 2440 | 2.7 | -2.5 | 56.5 |
| 2450 | 2.5 | -2.2 | 59.7 |
| 2460 | 2.3 | -2.2 | 60.3 |
| 2470 | 2.3 | -2.2 | 60.5 |
| 2480 | 2.4 | -2.1 | 61.6 |
| 2490 | 2.6 | -2.1 | 62.0 |
| 2500 | 2.6 | -2.2 | 60.7 |
| 5150 | 2.3 | -4.7 | 34.2 |
| 5200 | 2.2 | -4.3 | 37.4 |
| 5250 | 2.0 | -4.5 | 35.2 |
| 5300 | 2.5 | -3.8 | 42.0 |
| 5350 | 2.6 | -3.5 | 44.9 |
| 5400 | 2.3 | -3.6 | 43.6 |
| 5450 | 2.4 | -3.6 | 44.2 |
| 5500 | 2.8 | -3.4 | 45.5 |
| 5550 | 2.8 | -3.1 | 49.0 |
| 5600 | 2.9 | -3.1 | 49.5 |
| 5650 | 2.9 | -3.1 | 49.0 |
| 5700 | 3.0 | -3.1 | 48.5 |
| 5750 | 2.6 | -3.3 | 47.2 |
| 5800 | 2.6 | -3.4 | 45.4 |
| 5850 | 2.8 | -3.3 | 46.5 |
Dimensions
Unit: mm
Ordering Code
| Model | Description |
|---|---|
| ED-ANT-B | Dual-Band Wi-Fi Rod Antenna |
Packing List
- 1 x ED-ANT-B
Installation
Parts List:
| NO. | Name | Quantity (PCS) |
|---|---|---|
| ① | ED-ANT-B | 1 |
| ③ | ED-IPC2100 (Not provided) | 1 |
TIP
Here, only the ED-IPC2100 device is taken as an example for introduction.
Preparation:
The antenna has been retrieved from the packaging box.
Steps:
- Locate the antenna interface on the device side, as shown in the marked position in the figure below.
- Align the interfaces on both the device and the antenna, then tighten the antenna clockwise until it is securely attached to prevent dislodgement.
