2 Installing The Device

The ED-PAC3630 supports ​DIN rail installation. A ​DIN rail mounting bracket​ is pre-installed as standard.

Steps:

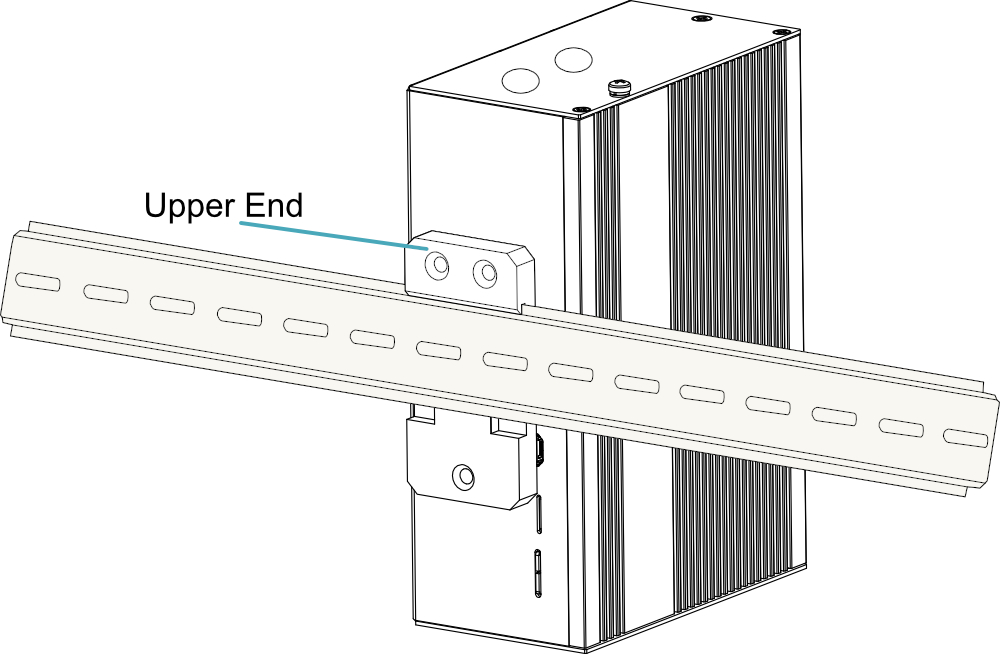

  1. Position the device​ with the side containing the ​mounting bracket​ facing the DIN rail to be installed. ​Hook the upper part of the bracket​ onto the ​top edge of the DIN rail.

    install1

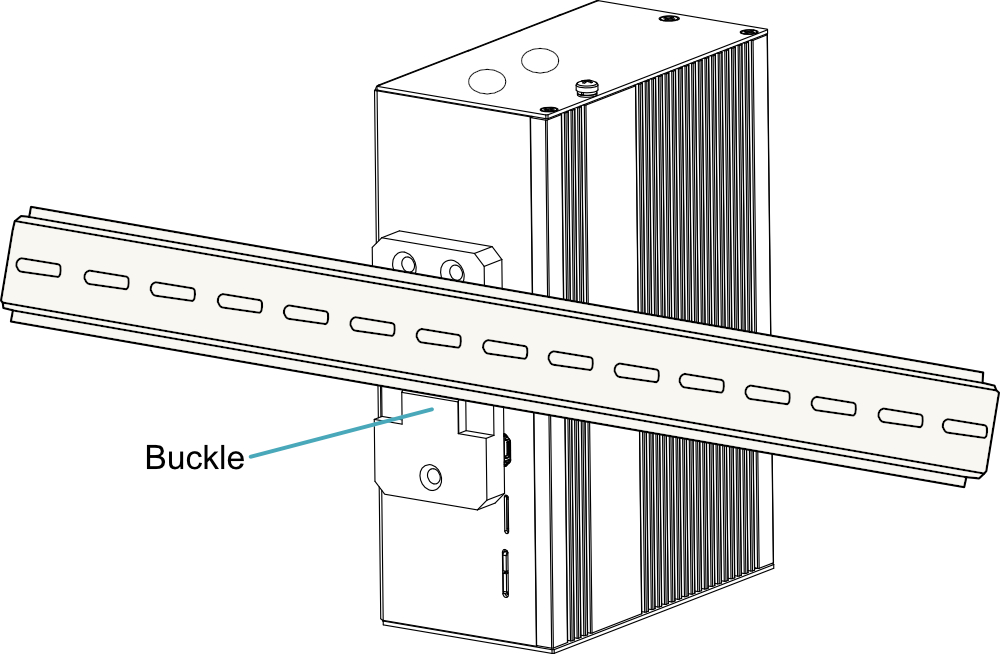

  2. Press down​ on the ​locking tab​ at the ​lower part of the bracket​ until it ​snaps into place​ on the DIN rail, ​completing the installation.

    install2
