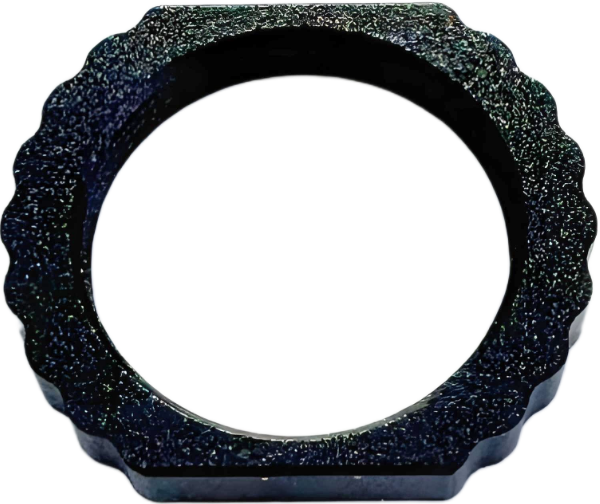

M12 Lens Locking Ring
ED-ACCLENS-M12-LR is designed to securely fasten and stabilize the M12 lens, ensuring proper alignment within its mounting system. This locking ring provides robust support, preventing any movement or misalignment, making it an essential component for maintaining the integrity and performance of your optical setup.
| Mechanical Characteristics |
|---|
| Height | 2.6±0.02mm |
| Diameter | 14±0.02mm |
| Color | Black |
| Material | Aluminum Metal |
| Weight | About 0.55g |
| Unit | mm |
| Size Tolerance | ±0.02 |
| Angle Tolerance | ±1° |
| Model | Description |
|---|
| ED-ACCLENS-M12-LR | Locking ring for M12 mount lense |
| Item | Description |
|---|
| OEM | Offered |
| Sample | Available |
