ED-LENS-M12-230390-08

1/2.3" 8 Megapixel wide range M12 lens

Overview

ED-LENS-M12-230390-08 lens can be used on various cameras with M12 interfaces. This 3.9mm M12 lens provides a 77.5° Horizontal Field of View on 1/2.3" sensors.

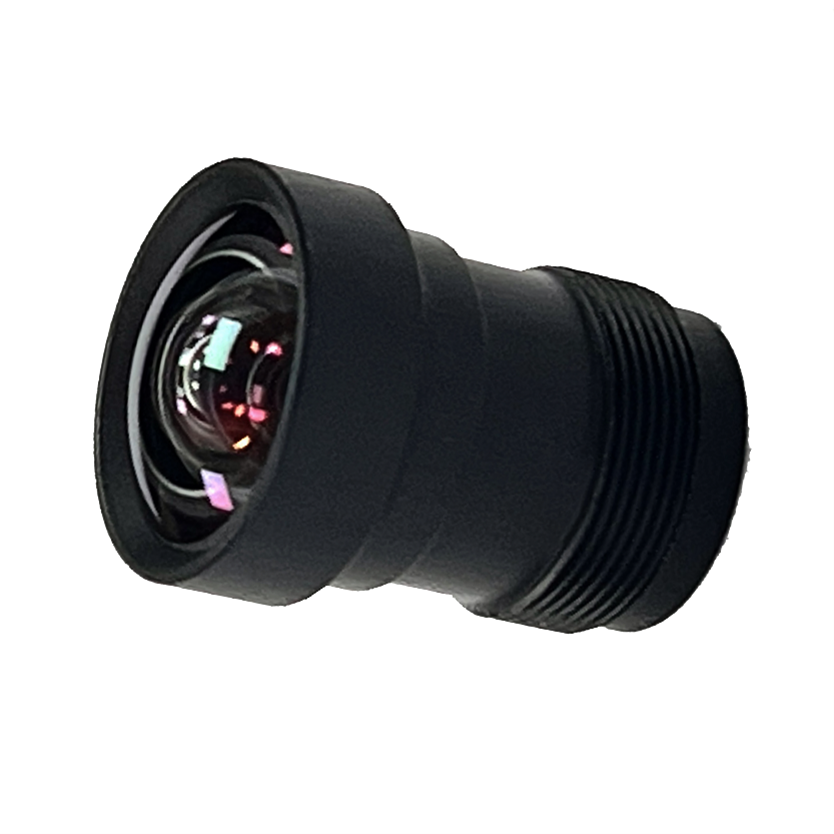

230390-08-lens-1

Specifications

Resolution8 Megapixel
Optical format1/2.3"
Image CircleΦ8.0
TTL (Total Track Length)22.15mm
EFL (Effective Focal Length)3.9mm
ApertureF2.8
MountM12×P0.5
FOV (Field of View) DxHxV1/2.3"(OV34810)1/2.7"(IMX415)1/2.8"(OV2735)
D90°78°80.5°
H77.5°71°72.8°
V61°43°44.8°
TV Distortion< 0.5%< 0.12%< 0.16%
CRA (Chief Ray Angle)< 14.2°< 12.4°< 12.82°
Relative Illuminance>68.16%>80%>79.03%
MOD (Minimum Object Distance)0.3m
BFL (Back Focal Length)4.49mm
MBF (Mechanical Back Focal)3.48mm
Structure4G2P
OperationFocusManual
Iris apertureFixed
Dimension (mm)Φ14×18.67
Weigh (g)5.6
Working Temperature-30ºC to +75ºC

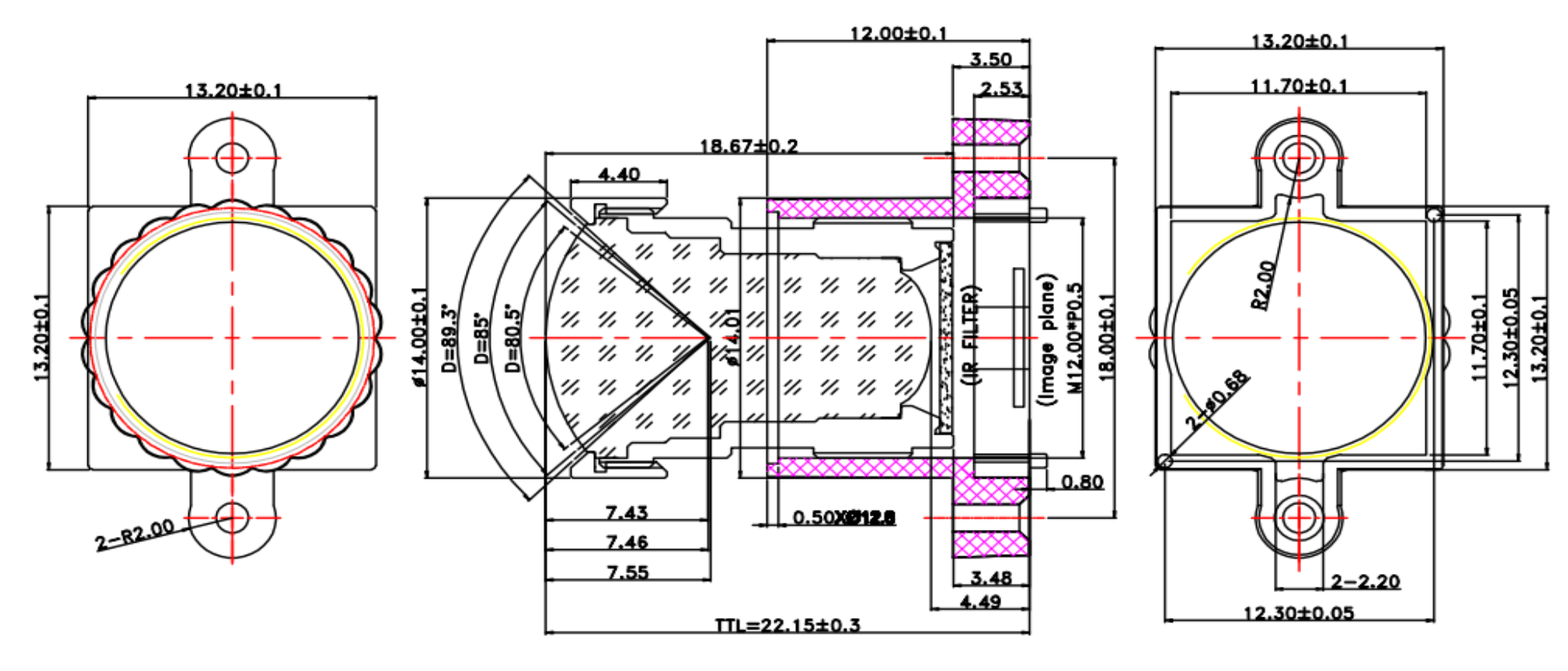

Mechanical Drawing

230390-08-lens-2
Unitmm
Size Tolerance0-10±0.05, 10-30±0.1, 30-120±0.2
Angle Tolerance±2°

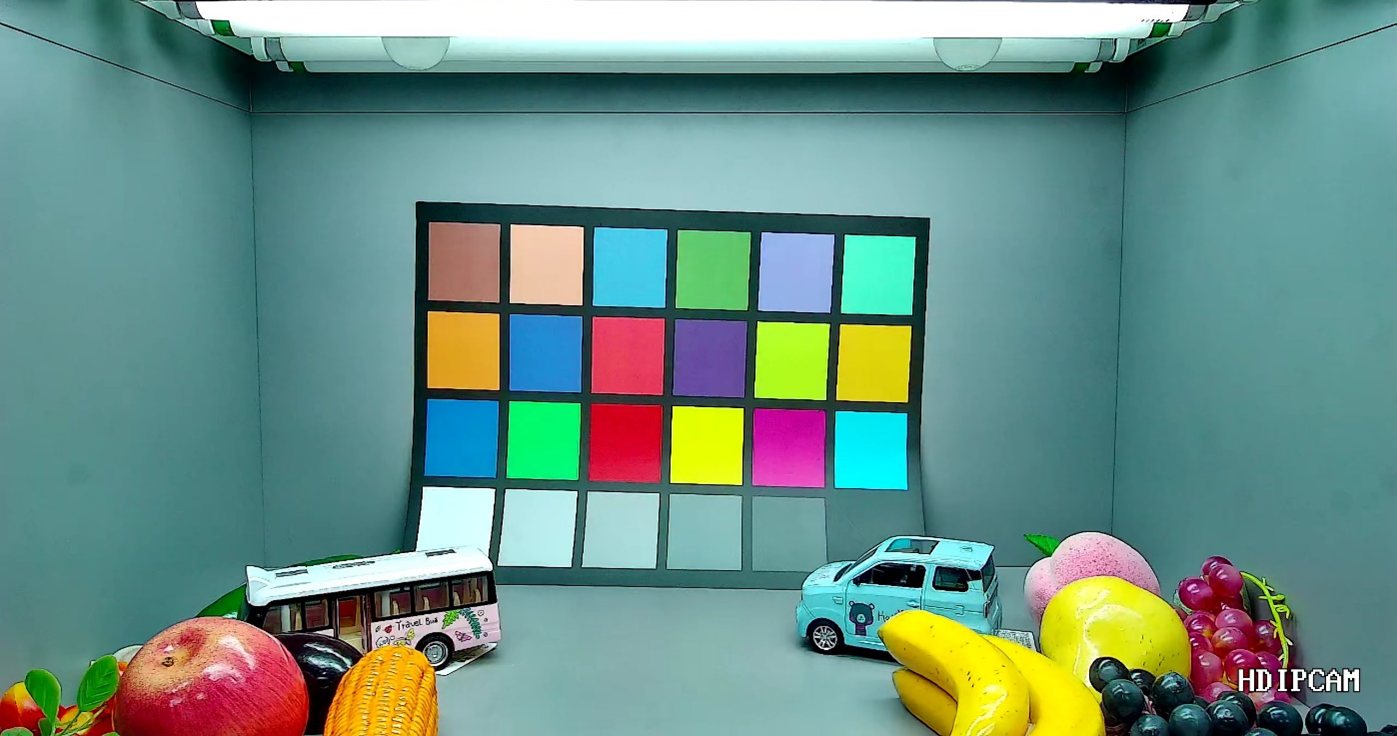

Actual Photo

Below picture was taken by camera module with this lens in the lab, it just gives a reference about the Field of View and resolution of the lens, it may be different with the pictures taken in different light environment and other different conditions.

230390-08-lens-3

Ordering Code

230390-08-lens-4

Selection Guide

More details about Ordering Code, please check Selection Guide.
