ED-LENS-M12-230270-08-12

1/2.3" 8 Megapixel wide range M12 lens

Overview

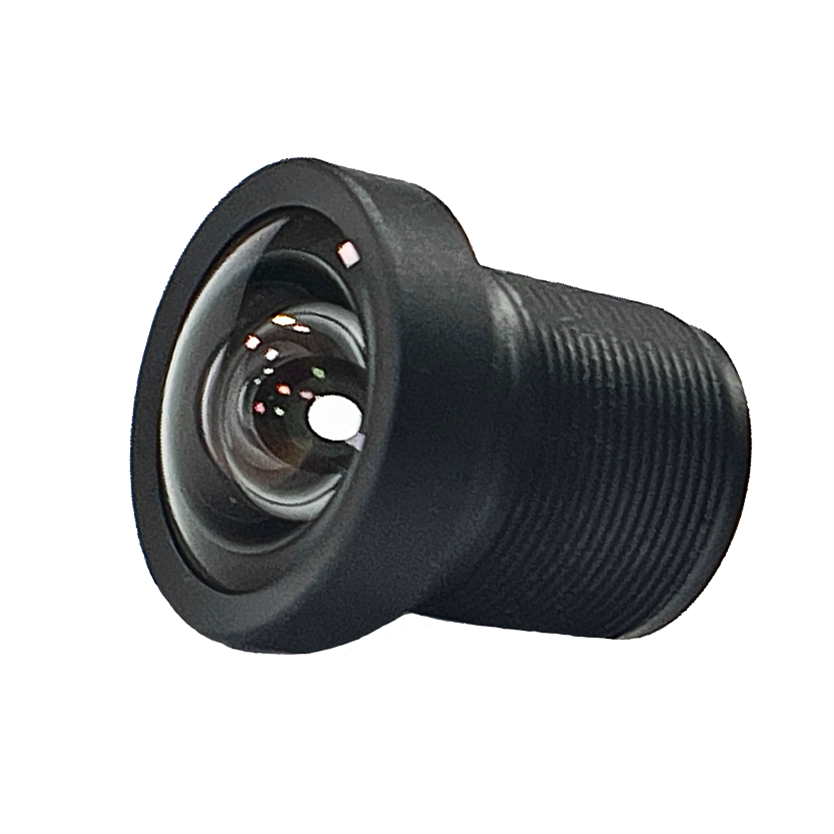

ED-LENS-M12-230270-08 lens can be used on various cameras with M12 interfaces. This 2.7mm M12 lens provides a 100° Horizontal Field of View on 1/2.3" sensors.

Specifications

Resolution		8 Megapixel
Optical format		1/2.3"
Image Circle		Φ8.3
TTL (Total Track Length)		22.50mm
EFL (Effective Focal Length)		2.7mm
Aperture		F2.8
Mount		M12×P0.5
FOV (Field of View) DxHxV		1/2.3"(IMX477)	1/2.5"(IMX317)	1/2.8"(IMX415)
	D	113°	108°	101°
	H	100°	97°	92.8°
	V	82.7°	67°	60.3°
TV Distortion		<-1.5%	<-1.3%	<-1.0%
CRA (Chief Ray Angle)		< 20.76°	< 18.97°	< 16.7°
Relative Illuminance		>52.04%	>58.7%	>66.57%
MOD (Minimum Object Distance)		0.3m
BFL (Back Focal Length)		4.97mm
MBF (Mechanical Back Focal)		4.07mm
Structure		5G2P
Operation		Focus	Manual
		Iris aperture	Fixed
Dimension (mm)		Φ16×18.3
Weigh (g)		6.4
Working Temperature		-30ºC to +75ºC

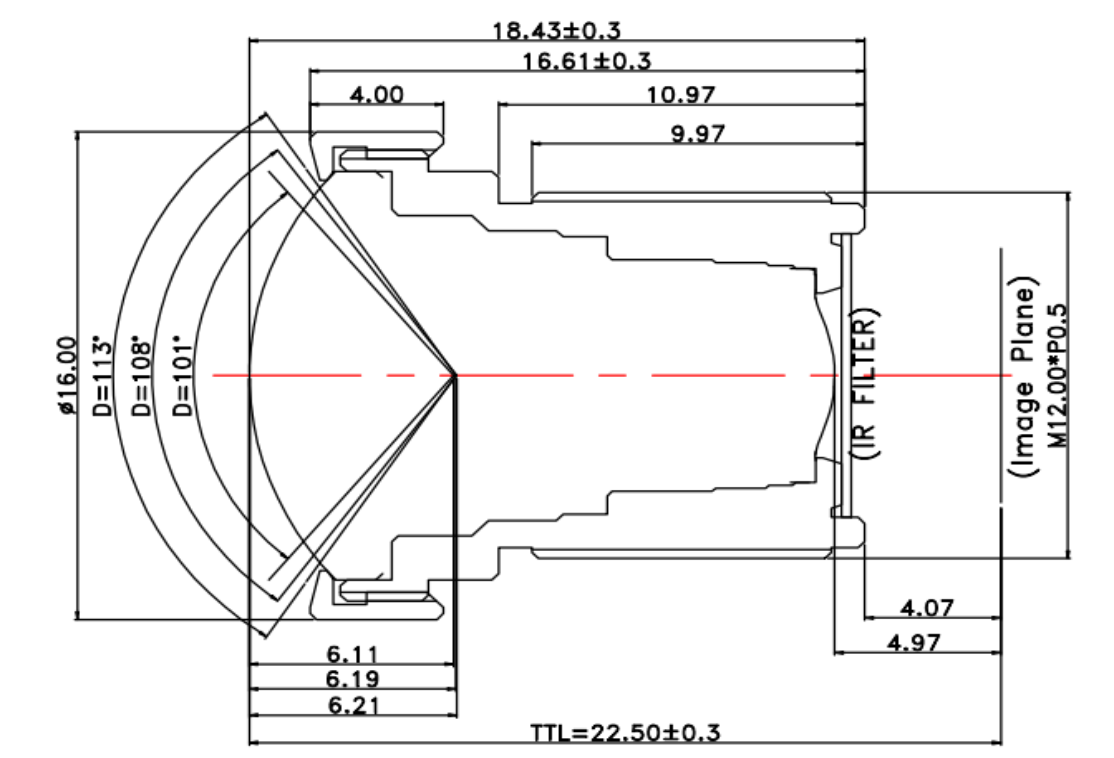

Mechanical Drawing

Unit		mm
Size Tolerance		0-10±0.05, 10-30±0.1, 30-120±0.2
Angle Tolerance		±2°

Below picture was taken by camera module with this lens in the lab, it just gives a reference about the Field of View and resolution of the lens, it may be different with the pictures taken in different light environment and other different conditions.

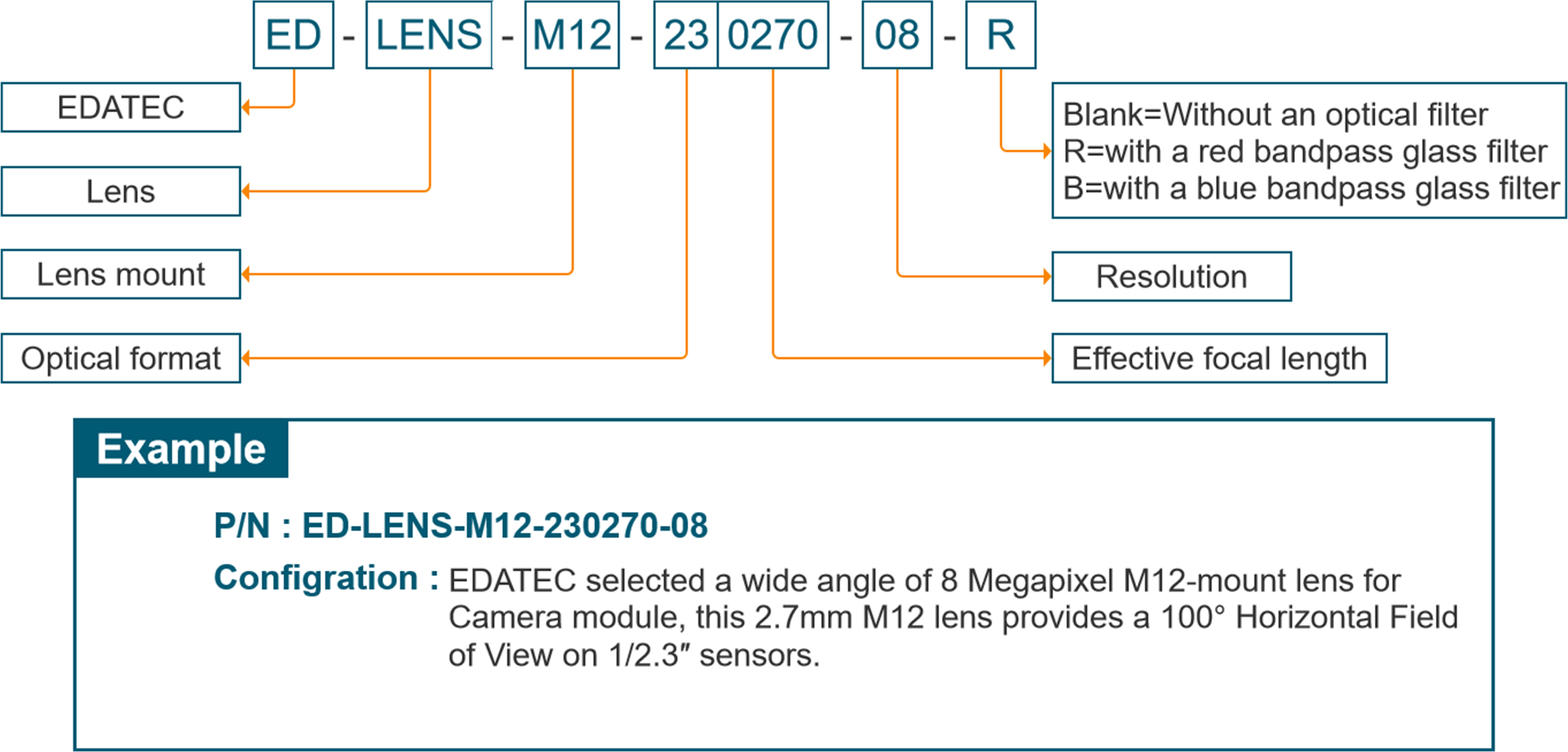

Ordering Code

Selection Guide

More details about Ordering Code, please check Selection Guide.
