ED-LENS-M12-180520-04

1/1.8" 4 Megapixel wide range M12 lens

Overview

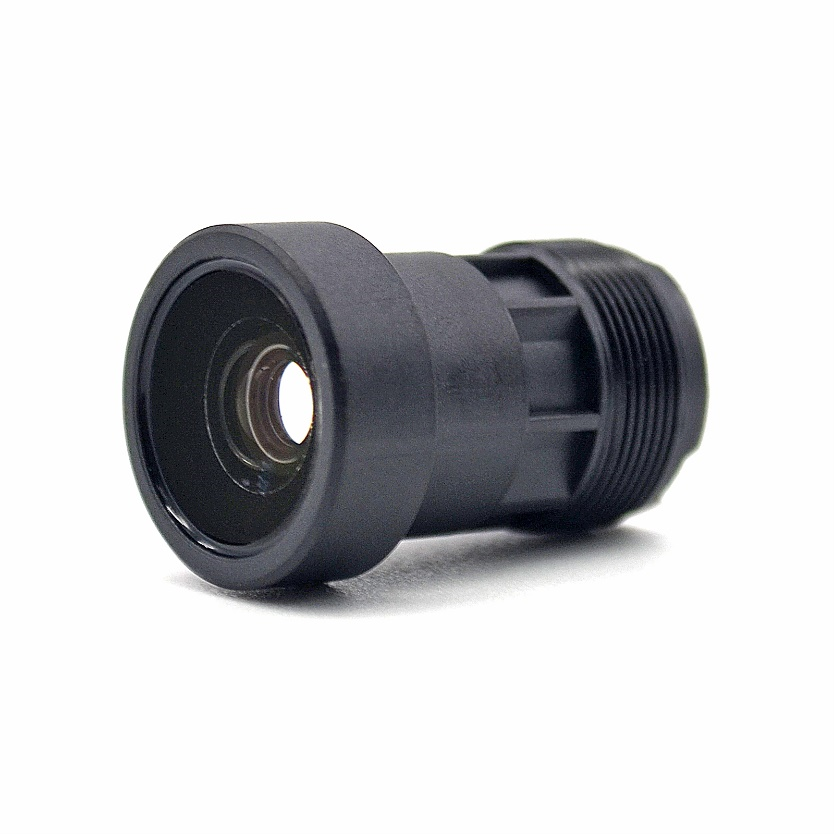

ED-LENS-M12-180520-04 lens can be used on various cameras with M12 interfaces. This 5.2mm M12 lens provides a 92.3° Horizontal Field of View on 1/1.8" sensors.

Specifications

Resolution		4 Megapixel
Optical format		1/1.8"
TTL (Total Track Length)		25.02mm
EFL (Effective Focal Length)		5.2mm
Aperture		F1.6
Mount		M12
FOV (Field of View) DxHxV		1/1.8"
	D	111°
	H	92.3°
	V	48.5°
Optical Distortion		-42%
CRA (Chief Ray Angle)		≤15.01°
MOD (Minimum Object Distance)		0.3m
BFL (Back Focal Length)		5.21mm
MBF (Mechanical Back Focal)		4.95mm
Structure		7G1P
Operation		Focus	Manual
		Iris aperture	Fixed
Dimension (mm)		Φ14×20.7
Weigh (g)		10
Working Temperature		-30ºC to +70ºC

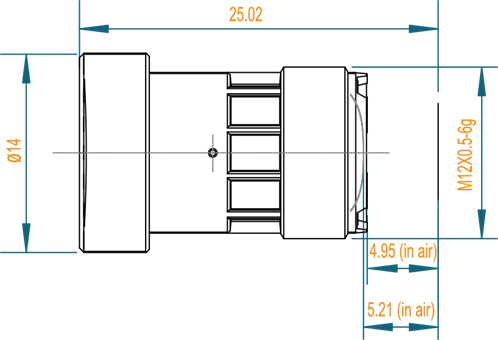

Mechanical Drawing

Unit		mm
Size Tolerance		0-10±0.1, 10-30±0.3, 30-120±0.5
Angle Tolerance		±2°

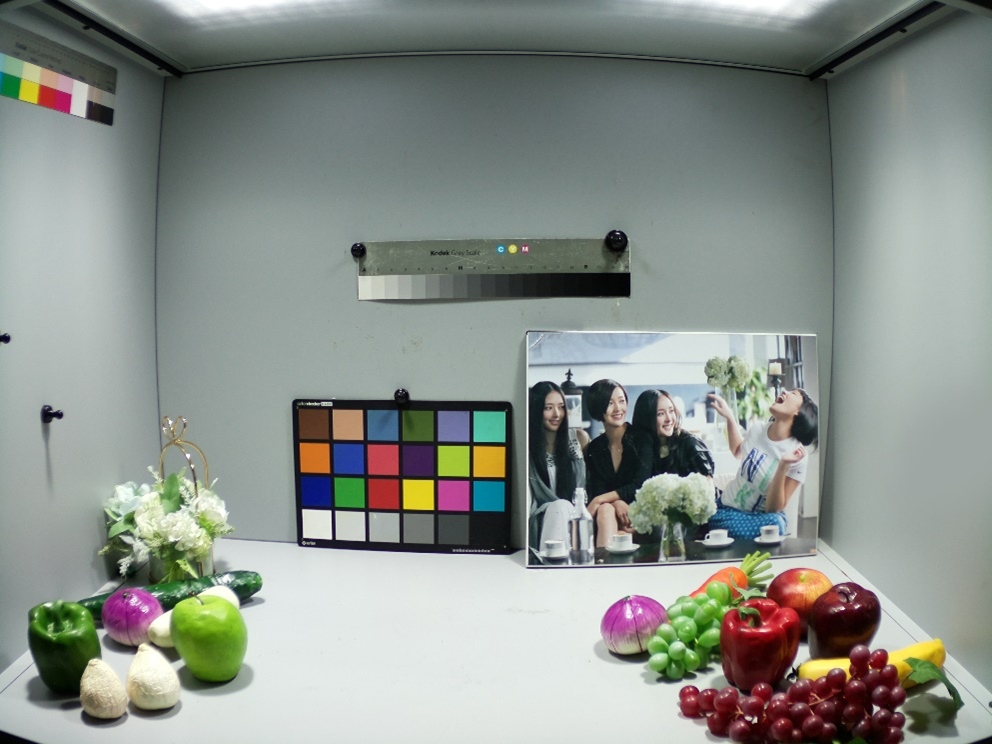

Below picture was taken by camera module with this lens in the lab, it just gives a reference about the Field of View and resolution of the lens, it may be different with the pictures taken in different light environment and other different conditions.

Ordering Code

Selection Guide

More details about Ordering Code, please check Selection Guide.
