3 Installing Device

This chapter introduces how to install the device.

3.1 DIN-rail Installation

The ED-IPC3200 series devices ​come pre-installed with the DIN rail bracket as a standard factory default configuration.​

Steps:

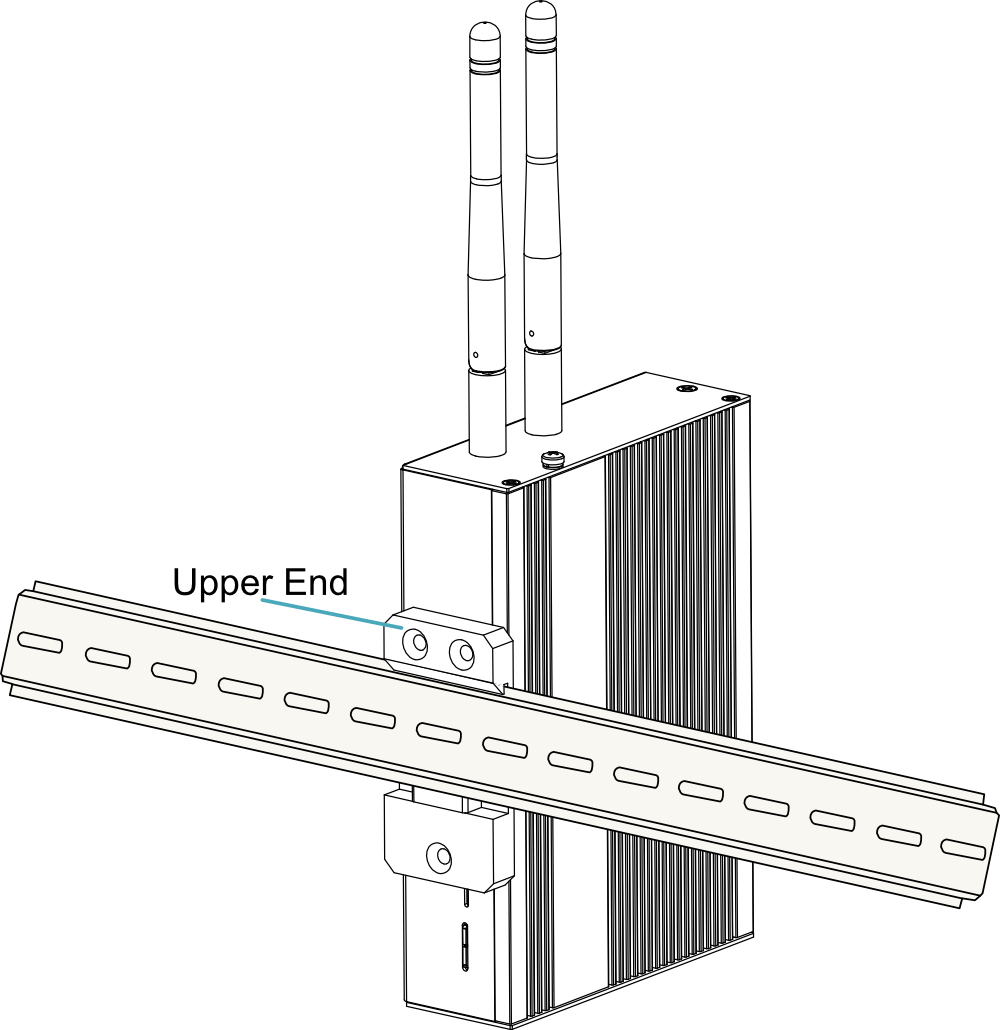

  1. Position the device's ​bracket-equipped side​ facing the DIN rail to be mounted, ​then hook the top edge of the bracket onto the top edge of the DIN rail.
install-device-1
  1. Press down the latch on the ​lower edge of the DIN rail bracket​ until it snaps securely onto the DIN rail, ​indicating successful installation.
install-device-1
