ED-IPC1200

Industrial Computer Based on Raspberry Pi CM0

  • 1GHz quad-core 64-bit Arm Cortex-A53 processor
  • 512MB SDRAM, 8GB or 16GB eMMC storage available
  • 1 x USB 2.0, 1 x 100M Ethernet, 2 x RS485, 1 x RS232
  • 4 x DI, 4 x DO
  • Supports 2.4GHz Wi-Fi & Bluetooth and 4G CAT1
  • 9V~28V wide-range power input with reverse connection protection
  • Integrated RTC with a 1F supercapacitor as the RTC backup power supply
  • Supports DIN Rail Mounting

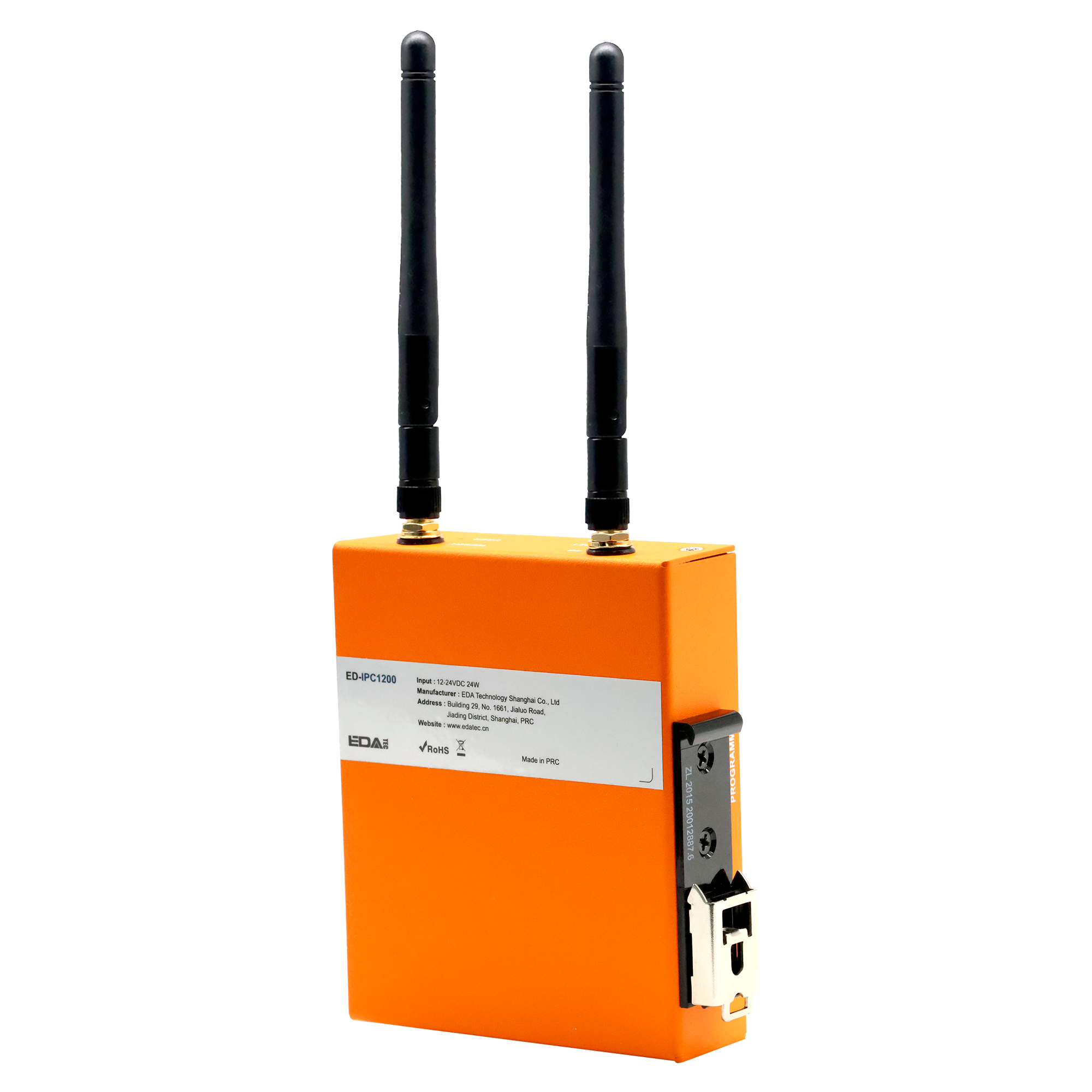

sbc1100

Specifications

System
CPU1GHz quad-core 64-bit Arm Cortex-A53 processor
VPUH.264/MPEG-4 video decoding, 1080p@30fps
H.264 encoding, 1080p@30fps
GPUOpenGL ES 1.1/2.0 graphics processing
Memory512MB SDRAM
Storage8GB or 16GB eMMC storage available
Software
Operating System Raspberry Pi OS (Desktop) 64-bit
Raspberry Pi OS (Lite) 64-bit
Raspberry Pi OS (Desktop) 32-bit
Raspberry Pi OS (Lite) 32-bit
Front I/O
RS485 Port1 x RS485, 3-Pin 3.5mm Pitch Phoenix Terminal, Signal Definition: GND/A1/B1
DI Port4 x DI, 5-Pin 3.5mm Pitch Phoenix Terminal
  • Sensor Type: Wet Contact (NPN)
  • Isolation Protection: 3.75kV
  • 4 DIs share 1 common terminal COMA
  • DI to COM:
    ON State: 5~30 VDC or -30~-5 VDC
    OFF State: 0~2 VDC or -2~0 VDC
DO Port4 x DO, 5-Pin 3.5mm Pitch Phoenix Terminal
  • Sensor Type: NPN
  • Isolation Protection: 3.75kV
  • Output: 5~36 VDC (24 VDC is recommended), maximum current is 0.2A (per channel)
  • 4 DOs share 1 common terminal COMB
100M Ethernet Port1 x adaptive 10M/100M ethernet port, RJ45 connector. It can be used to access the network.
Rear I/O
Nano SIM Card Slot1 x Nano SIM card slot for installing a Nano SIM card to obtain 4G signal.
Note: If the 4G function is not selected as an option, the Nano SIM card slot will not function.
Type-C USB Port1 x Type-C USB Port, supports eMMC flashing via this port.
Side Panel I/O
USB 2.0 Port1 x USB 2.0, Type-A Connector, supports up to 480Mbps transfer rate.
RS485 Port1 x RS485 Port, 3-Pin 3.5mm Pitch Phoenix Terminal, Signal Definition: GND/A2/B2.
RS232 Port1 x RS232 Port, 3-Pin 3.5mm Pitch Phoenix Terminal, Signal Definition: GND/TX3/RX3.
Antenna Port (Optional)2 x SMA Connectors, for connecting 4G and Wi-Fi/BT antennas.
Power Port1 x DC Input, 2-Pin 3.5mm Pitch Phoenix Terminal with Screw Holes; Supports 9V~28V Input, Signal Definition: VIN+/GND.
Button
RESET Button1 x Reset Button, hidden button, press to reboot the device.
USER Button1 x User Button, hidden button, user can define actions as needed.
Indicator
PWR1 x Power Indicator, Red, shows device power status.
ACT1 x System Status Indicator, Green, shows device working status.
4GR1 x 4G Registration Indicator, Red/Green Dual-color, shows 4G module registration status.
4GS1 x 4G Signal Indicator, Red/Green Dual-color, shows 4G signal status.
USER1 x User Indicator, Green, user can define status as needed.
COM1~COM33 x Serial Port Indicators, Green, show serial port communication status.
DI0~DI34 x DI Indicators, Green, show DI port input status.
DO0~DO34 x DO Indicators, Green, show DO port output status.
Expansion Functions
RTCBuilt-in RTC function with a 1F supercapacitor as the RTC backup power supply.
Electrical Characteristics
Input Voltage9V~28V DC
Power ConsumptionAbout 5W
Mechanical Characteristics
Dimensions105mm x 86mm x 26mm (W x D x H, DIN-rail bracket and antenna are not included)
WeightAbout 310g
InstallationDIN rail mounting
Wireless
Wi-Fi/Bluetooth (Optional)Supports 2.4GHz Wi-Fi and Bluetooth, with antenna
  • 2.4GHz Wi-Fi: Compliant with IEEE 802.11 b/g/n
  • Bluetooth 5.0: Compatible band 2402MHz ~ 2480MHz
4G (Optional)Connects to various 4G modules via connector, with antenna
  • EC800M-CN Module (China)
    • LTE FDD: B1/B3/B5/B8
    • LTE TDD: B34/B38/B39/B40/B41
  • EC800K-EU Module (Europe)
    • LTE-FDD: B1/B3/B5/B7/B8/B20/B28
  • EC800Q-NA Module (America)
    • LTE-FDD: B2/B4/B5/B12/B13/B66
Environmental & Regulatory
Operating Temperature-20°C ~ 60°C
Storage Temperature-20°C ~ 60°C
Ambient humidity5% ~ 95% (non-condensing)

System Diagram

ED-ipc1200-diagram

Dimensions

Unit: mm

ipc1200-dimension

Ordering Information

Coding Rules

ipc1200-orderingcode

Ordering Code

ModelDescriptionStocking Level
ED-IPC1200-10008-4CNWi-Fi/BT, 8GB eMMC, China Version 4G Module, 4 x DI, 4 x DOPreview
ED-IPC1200-10008-4EUWi-Fi/BT, 8GB eMMC, Europe Version 4G Module, 4 x DI, 4 x DOPreview
ED-IPC1200-10008-4USWi-Fi/BT, 8GB eMMC, USA Version 4G Module, 4 x DI, 4 x DOPreview

TIP

If you require products with other configurations, please contact our sales team separately.​

Optional Accessory

You can choose a power adapter according to actual needs.

ModelDescriptionPicture
ED-PSU1202-UK-3.5PL100~240VAC to 12VDC/2A Adapter, with UK AC plug, 3.5mm pitch phoenix plug with lock.psu1202-3.5pl.png
ED-PSU1202-US-3.5PL100~240VAC to 12VDC/2A Adapter, with US AC plug, 3.5mm pitch phoenix plug with lock.
ED-PSU1202-AU-3.5PL100~240VAC to 12VDC/2A Adapter, with AU AC plug, 3.5mm pitch phoenix plug with lock.
ED-PSU1202-EU-3.5PL100~240VAC to 12VDC/2A Adapter, with EU AC plug, 3.5mm pitch phoenix plug with lock.
Note: Each model includes only one type of AC plug among UK, US, AU, and EU.

Packing List

  • 1 x ED-IPC1200 Unit
  • [WiFi/BT Version - optional] 1 x 2.4GHz Wi-Fi/BT Antenna
  • [4G Version - optional] 1 x 4G Antenna
  • 1 x 3-Pin Phoenix Terminal
  • 1 x 2-Pin Phoenix Terminal with lock
  • 1 x 6-Pin Phoenix Terminal
  • 2 x 5-Pin Phoenix Terminals
