ED-HMI2630-101C

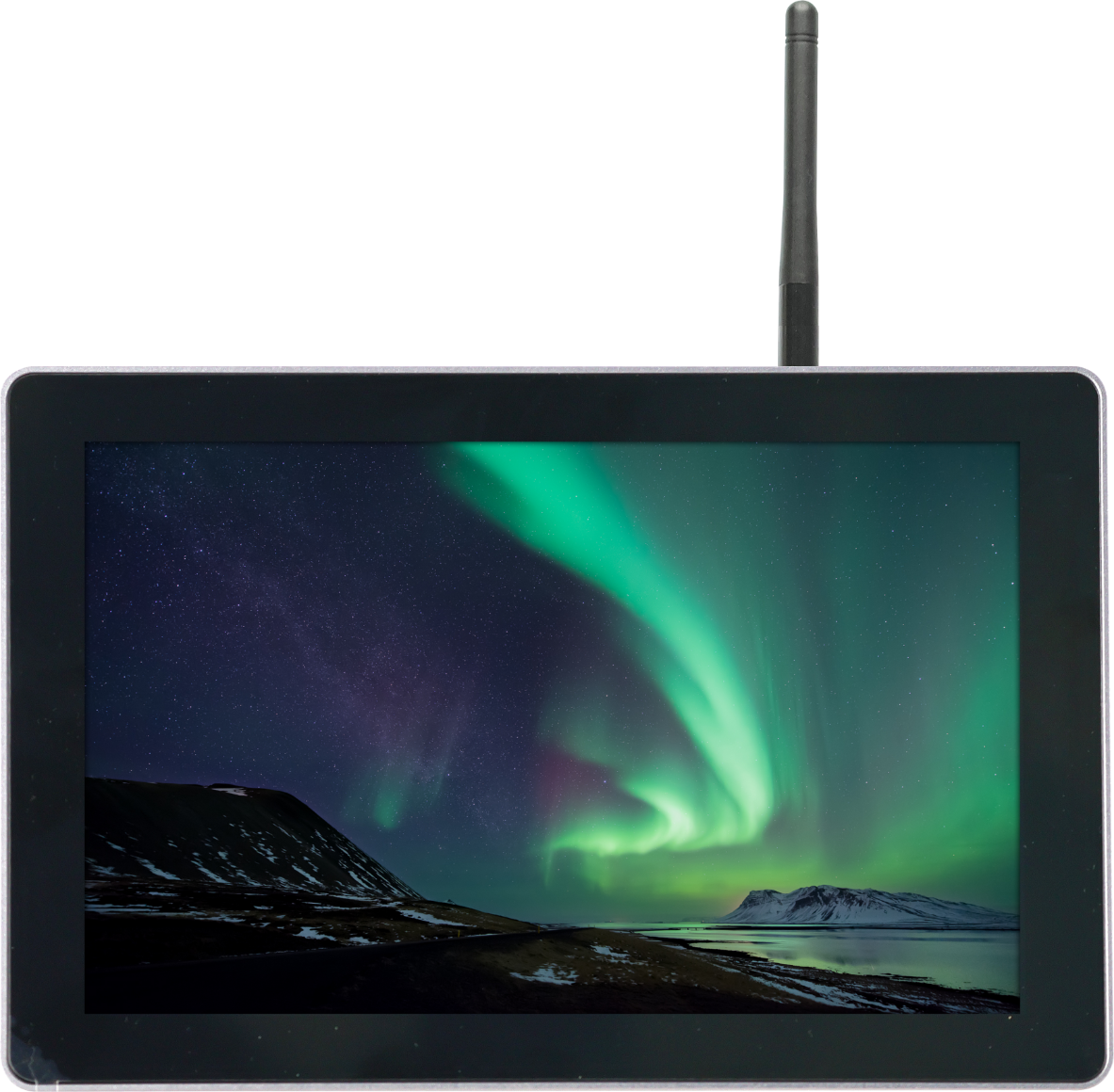

10.1-inch Industrial HMI Based on Raspberry Pi CM4
|  |
Specifications
| System | |
|---|---|
| CPU | Broadcom BCM2711, quad core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz |
| VPU | H.265(HEVC), up to 4Kp60 decode H.264, up to 1080p60 decode, 1080p30 encode |
| GPU | OpenGL ES 3.1 & Vulkan 1.0 |
| Memory | Options for 1GB, 2GB, 4GB, 8GB LPDDR4-3200 SDRAM |
| Storage | Options for 8GB, 16GB, 32GB eMMC storage Micro SD card (user storage expansion) M.2 NVMe SSD (options for 128GB, 256GB, 512GB) |
| software | |
|---|---|
| Operating System | Raspberry Pi OS (Desktop) 32-bit Raspberry Pi OS (Lite) 32-bit Raspberry Pi OS (Desktop) 64-bit Raspberry Pi OS (Lite) 64-bit |
| Front I/O | |
|---|---|
| Camera | Built-in 8-megapixel front camera (optional) |
| Side I/O | |
|---|---|
| Power | 1 x DC IN, 2-Pin 3.5mm spacing phoenix terminals with screw holes. It supports 9V~36V input, the signal is defined as VIN+/GND. |
| RS485/232 | 12-Pin 3.5mm spacing phoenix terminals with IO isolator, which are equipped with electrostaticand surge protection. Different numbers of RS232 and RS485 ports can beselected accordingto actual application. The signal of RS485 is defined as IGND/A/B, and the signal of RS232 isdefined as IGND/TX/RX.
|
| Audio | 1 x Audio In/Stereo Out, 3.5mm audio jack connector. It can be used as MIC IN and LINE OUT.
|
| 1000M Ethernet | 1 x adaptive 10/100/1000M ethernet port, RJ45 connector. It can be used to access thenetwork. |
| 100M Ethernet | 1 x adaptive 10/100M ethernet port, RJ45 connector. It can be used to access the network. |
| CAN | 2 x CAN ports, 6-Pin 3.5mm spacing phoenix terminals.
|
| DI | 8 x DI ports, 10-Pin 3.5mm spacing phoenix terminals
|
| DO | 8 x DO ports, 10-Pin 3.5mm spacing phoenix terminals
|
| SD Card Slot | 1 x Micro SD card slot, which is used to install SD card for storing user data. |
| SIMCard Slot | 1 x Nano SIM card slot, which is used to install SIM card for getting 4G signal. |
| Micro USB | 1 x PROGRAMMING port, which supports to flash to eMMC for the system. |
| HDMI | 1 x HDMI port, type A connector. It is compatible with HDMI 2.1 and supports 4K 60Hz. |
| USB 2.0 | 2 x USB 2.0 ports, type A connector, supporting up to 480Mbps. |
| Antenna | 2 x SMA ports, using to connect 4G antenna and Wi-Fi/BT antenna. |
| Speaker | 1 x PA output, built-in a 4Ω 3W speaker. |
| Buttons and Indicators | |
|---|---|
| Reset | 1 x Reset button, which can reset the device. |
| PWR | 1 x red power indicator, which is used to check the status of device power-on and power-off. |
| 4G | 1 x green 4G indicator, which is used to check the status of 4G signal. |
| ACT | 1 x green system indicator, which is used to check the working status of device. |
| USER | 1 x green user indicator, user can customize a status according to actual application. |
| COM1~COM4 | 4 x green UART indicators, using to check the communication status of UART ports. |
| CAN0~CAN1 | 2 x green CAN indicators, using to check the communication status of CAN ports. |
| X0~X7 | 8 x green DI indicators, using to check the input status of DI ports. |
| Y0~Y7 | 8 x green DO indicators, using to check the output status of DO ports. |
| Expansion I/O | |
|---|---|
| 12V 1A | 3 x DC OUT, 2-Pin 2.0mm spacing WTB connector, supporting 12V 1A output. These pins are defined as GND/12V, reserving to provide power supply for extended LCD. |
| 10-Pin GPIO | 1 x GPIO Pin Header, 2x5-Pin 2.54mm spacing, using to lead out the expansion GPIO ports. User can customize the function according to actual application, these pins aredefined as 8xGPIO/3V3/GND. |
| USB | 1 x USB 2.0, 5-Pin 1.5mm spacing WTB connector, supporting to expand the USB 2.0 port. |
| M.2 B | 1 x M.2 B, M.2 B Key connector, supporting to connect SSD. It is compatible withM.2 2230 and M.2 2242. |
| Expansion Performance | |
|---|---|
| EEPROM | It supports 4K byte storage and improves the ease of use of device. |
| Crypto Authentication | It can be matched to realize the required upper layer application and improves the security of device. |
| RTC | RTC with 1F SuperCAP backup, which can ensure that the system clock is not affected bydevice power-off. We also provide a battery base, and you can buy a CR1220 batterybackup for RTC. |
| Buzzer | A tip or an abnormity can be configurated according to actual application, which realizes the alarm function. |
| Watch Dog* | This function has been reserved on hardware. But we need additional software to support it,which is under development. |
| LCD | |
|---|---|
| LCD Size | 10.1" TFT |
| Resolution | 1280 x 800 |
| Colors | 16.7MB |
| Active Area | 216.576mm (H) x 135.36mm (V) |
| Backlight | LED |
| MTBF | >30000h |
| Pixel Pitch | 400cd/m^2 |
| Contrast Ratio | 1000:1 |
| Response Time | 30ms |
| Viewing Angle (CR≥10) | 80° (L) / 80° (R) / 80° (U) / 80° (D) |
| Input Type | LVDS |
| Touch Screen | |
|---|---|
| Type | Multi-point Capacitive Touch Screen |
| Transmittance | ≥85％ |
| ConnectionMethod | COF |
| ControllerInterface | I2C |
| Driver Support | Linux |
| Multi-touch | 10 points |
| SurfaceHardness | 6H |
| Electrical Characteristics | |
|---|---|
| Input Voltage | 9V ~ 36V DC |
| Power Consumption | 25W (Max) |
| Mechanical Characteristics | |
|---|---|
| Dimensions | 258mm x 172mm x 61.5mm (WxDxH, antenna is not included.) |
| Weight | 1.3Kg |
| Installation | Embedded front installation |
| Wireless | |
|---|---|
| Wi-Fi/Bluetooth (optional) | 2.4GHz & 5GHz dual-band Wi-Fi and Bluetooth with antenna.
|
| 4G (optional) | Connect with various 4G LTE modules through the Mini PCIe interface, with antenna.
|
| Environmental & Regulatory | |
|---|---|
| Operating Temperature | -20°C ~ 60°C |
| Storage Temperature | -25°C ~ 60°C |
| Ambient humidity | 5% ~ 95% (non-condensing) |
| Certifications | FCC FCC 47 CFR Part 15 Subpart B CE EN IEC 62368-1/EN IEC 62311/EN IEC 61000-3-2/EN IEC 61000-3-3 EN 55032/EN 55035 EN 301 489-1/EN 301 489-3/EN 301 489-17/EN 301 489-52 EN 301 328/EN 301 440/EN 301 511/EN 301 908-1/EN 301 908-2 |
System Diagram
Dimensions
Unit: mm
Ordering Code
Optional Accessory
You can choose a power adapter according to actual needs.
| Model | Description | Picture |
|---|---|---|
| ED-PSU1202-UK | 100~240VAC to12VDC/2A Adapter, with UK AC plug,5.5mm DC plug |  |
| ED-PSU1202-US | 100~240VAC to 12VDC/2A Adapter, with US AC plug,5.5mm DC plug | |
| ED-PSU1202-AU | 100~240VAC to 12VDC/2A Adapter, with AU AC plug,5.5mm DC plug | |
| ED-PSU1202-EU | 100~240VAC to 12VDC/2A Adapter, with EU AC plug,5.5mm DC plug | |
| NOTE: Each model contains only one of the UK, US, AU and EU plugs. | ||
Packing List
- 1 x ED-HMI2630-101C Unit
- 1 x Mounting Kit (including 4 x buckles, 4xM410 screws and 4xM416 screws)
- [Wi-Fi/BT Version - optional] 1 x 2.4GHz/5GHz Wi-Fi/BT Antenna
- [4G Version - optional] 1 x 4G/LTE Antenna
