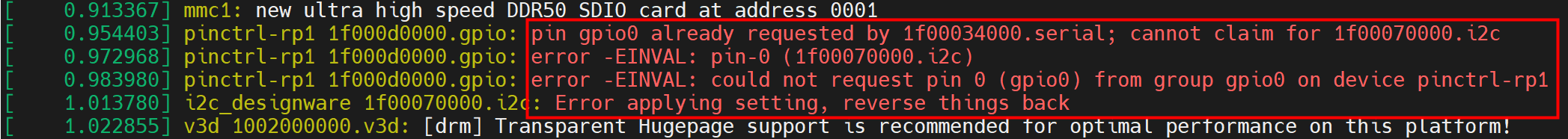

After executing the dmesg command, an error message appears in the printed log indicating that GPIO0 is occupied, as shown in the figure below. What should I do?

gpio9

Solution:​

  1. Execute the following command in the command window to open the config.txt file.
sudo nano /boot/firmware/config.txt

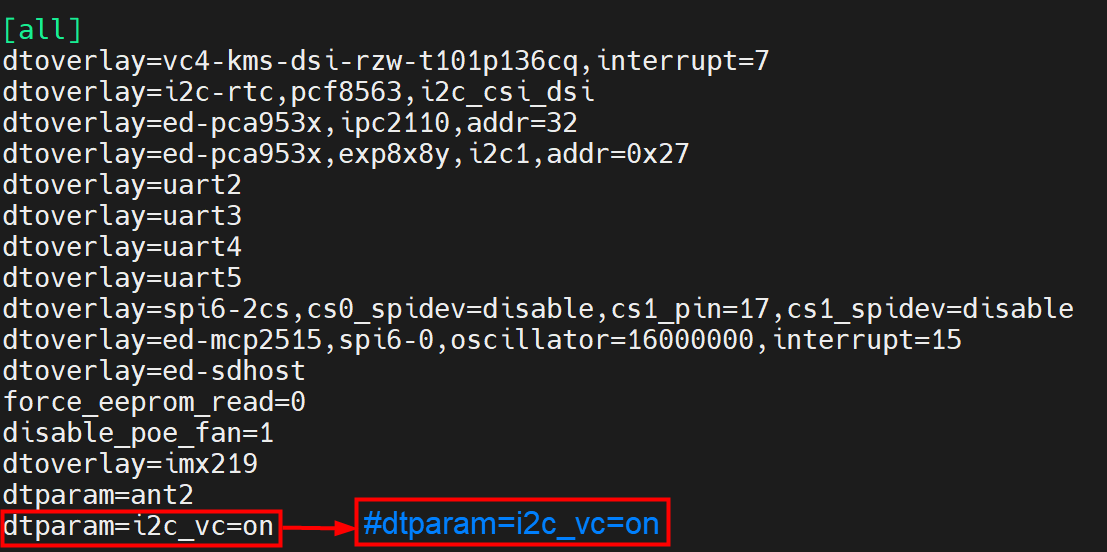

  1. Find the parameter dtparam=i2c_vc=on in the config.txt file and add a # symbol in front of it (as shown in the figure below) to disable the i2c_vc interface.
gpio0

  1. Press Ctrl+S to save the changes to the file, and then press Ctrl+X to exit the file editing mode.

  2. Execute the following command to restart the device and make the configuration take effect.

sudo reboot
