EtherCAT High-Speed Counter Module
|

Specifications
| Input | |
|---|---|
| Number of Input Signal Channels | 2 |
| Pulse Output Mode | Differential (5V) |
| Powe Input | Voltage: 5V DC(±10%) Current Dissipation: 210mA |
| Input Frequency | Up to 1MHz |
| Counting Mode | Linear Counting, Ring Counting |
| Counting Range | Linear Counting: -2147483648~2147483648 |
| Encoder Mode | X1 (default), X2, X4 |
| Input Impedance | >500KΩ |
| Isolation Type | Opto-coupler Isolation |
| Connection Distance | 10m (Max) |
| Software | |
|---|---|
| Fieldbus | EtherCAT |
| EtherCAT Master Software Platform | CODESYS |
| Mechanical Characteristics | |
|---|---|
| Dimensions | 100mm x 67.6mm x 14.8 mm |
| Weight | About 51g |
| Wiring Specifications | 0.2mm² ~ 1.5mm² |
| Wiring Method | Screwless |
| Installation | DIN-rail installation |
| Environmental & Regulatory | |
|---|---|
| Operating Temperature | -10℃ ~ 55℃ |
| Storage Temperature | -20℃ ~ 85℃ |
| Ambient Humidity | 5% ~ 95% (non-condensing) |
| Air Pressure | ≥ 795 hPa (altitude ≤ 2000 m), compliant with IEC 61131-2 |
| Overvoltage Categories | I |
| Protection Class | IP20 |
| Certifications | CE and RoHS |

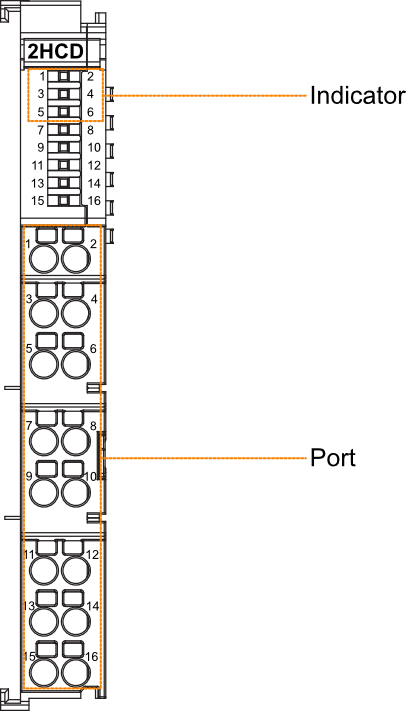

Interface Definition

| Indicator | |||
|---|---|---|---|
| LED No. | Input | Color | Description |
| 1~6 | 1, 3 and 5 corresponds to channel 1 2, 4 and 6 corresponds to channel 2 | Green | The states of indicators are on, blink and off.
|

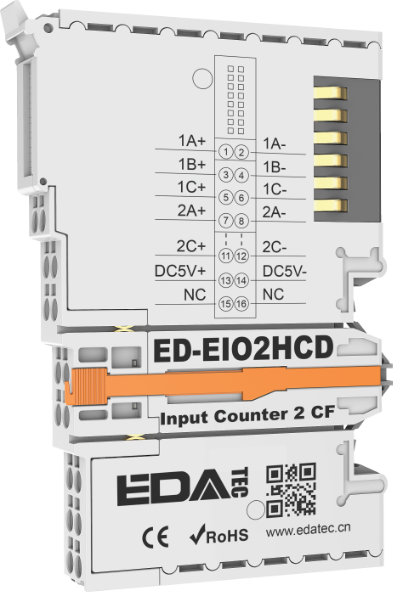

| Port | |||
|---|---|---|---|
| Pin No. | Input | Pin No. | Input |
| 1 | 1A+ | 2 | 1A- |
| 3 | 1B+ | 4 | 1B- |
| 5 | 1C+ | 6 | 1C- |
| 7 | 2A+ | 8 | 2A- |
| 9 | 2B+ | 10 | 2B- |
| 11 | 2C+ | 12 | 2C |
| 13 | DC5V+ | 14 | DC5V- |
| 15 | NC | 16 | NC |
Dimensions
Unit: mm

Ordering Code
| Model | Description |
|---|---|
| ED-EIO2HCD | 2-channel High-Speed Counter Module |
Adapted PLC Unit or EtherCAT Coupler
| Model | Description |
|---|---|
| ED-PLC2010 | EtherCAT Master based on CODESYS |
| ED-EIOBRG-EC | EtherCAT Coupler |
Packing List
- 1 x EtherCAT High-Speed Counter Module
Installation
TIP
- DIN-rail is not included in the box, the following is intended as an installation illustration only.
- Before you start installing, please turn off the power to the module.
- If you encounter a situation where the module cannot be installed, please do not force the installation to avoid damaging the module.
Steps
The following is an example of the installation of an 8-terminal module only.
- Align the notches in the I/O module.

- Secure the I/O module to the DIN-rail by pushing the I/O module in the direction of the arrow onto the DIN snap pin.

Dismantling
TIP
- Before you start installing, please turn off the power and disconnect the cable to the module.
- If you encounter a situation where the module cannot be installed, please do not force the installation to avoid damaging the module.
Step
The following is an example of the dismantling of an 8-terminal module only.
- Hold the snap pin of the I/O module by hand and then pull it out in the direction of the arrow to disengage the module from the DIN-rail.
