- 8-channel digital output or 16-channel digital output, equipped with the LED for an operation check
- Output signals support Transistor and Relay
- Transistor type support PNP or NPN
- Opto-coupler isolated output
- Plug-in construction, DIN-rail installation
- PT removable terminal block for screwless wiring
- Support cascading up to 32 modules without additional power supply
|
| Output (Relay) |
|---|
| Number of output signal channels | 4 |
| Power Dissipation | 45mA |
| Driving Ability | 230V AC or 30V DC |
| Load Type | Resistive load, Inductive load, Lamp load |
| Isolation Voltage | AC 500V |
| Isolation | Opto-coupler Isolation |
| Output (Transistor) |
|---|
| Signal Type | PNP | NPN |
| Number of input signal channels | 8 | 16 | 8 | 16 |
| Power Dissipation | 66mA | 106mA | 66mA | 106mA |
| Rated Output Voltage | 24V DC (±25%) | 0V DC (±3%) |
| Driving Ability | Single-channel load 500mA |
| Load Type | Resistive load, Inductive load, Lamp load |
| Isolation Voltage | AC 500V |
| Isolation Type | Opto-coupler Isolation |
| Software |
|---|
| Fieldbus | EtherCAT |
| EtherCAT Master Software Platform | CODESYS |
| Mechanical Characteristics |
|---|
| Dimensions | 100mm x 67.6mm x 14.8 mm |
| Weight | About 51g |
| Wiring Specifications | 0.2mm² ～ 1.5mm² |
| Wiring Method | Screwless |
| Installation | DIN-rail installation |
| Environmental & Regulatory |
|---|
| Operating Temperature | -10℃ ~ 55℃ |
| Storage Temperature | -20℃ ~ 85℃ |
| Ambient Humidity | 5% ~ 95% (non-condensing) |
| Air Pressure | ≥ 795 hPa (altitude ≤ 2000 m), compliant with IEC 61131-2 |
| Overvoltage Categories | I |
| Protection Class | IP20 |
| Certifications | CE and RoHS |
4-channel digital output module (Relay):
| Indicator |
|---|
| led No. | Output | Color | Description |
| 1~4 | CONTACT 1~CONTACT 4 | Green | 4 Indicators correspond to CONTACT 1~CONTACT 4, which are independent of each other. The states of indicators are on and off. - on: Relay is closed
- off: Relay is open
|
| Port |
|---|
| Pin No. | Output | Pin No. | Output |
| 1 | CONTACT 1A | 2 | CONTACT 1B |
| 3 | CONTACT 2A | 4 | CONTACT 2B |
| 5 | CONTACT 3A | 6 | CONTACT 3B |
| 7 | CONTACT 4A | 8 | CONTACT 4B |
8-channel digital output module (PNP):
| Indicator |
|---|
| led No. | Output | Color | Description |
| 1~8 | Y1~Y8 | Green | 8 Indicators correspond to Y1~Y8, which are independent of each other. The states of indicators are on and off. - on: Output a high level signal
- off: No output signal
|
| Port |
|---|
| Pin No. | Output | Pin No. | Output |
| 1 | Y1 | 2 | Y2 |
| 3 | Y3 | 4 | Y4 |
| 5 | Y5 | 6 | Y6 |
| 7 | Y7 | 8 | Y8 |

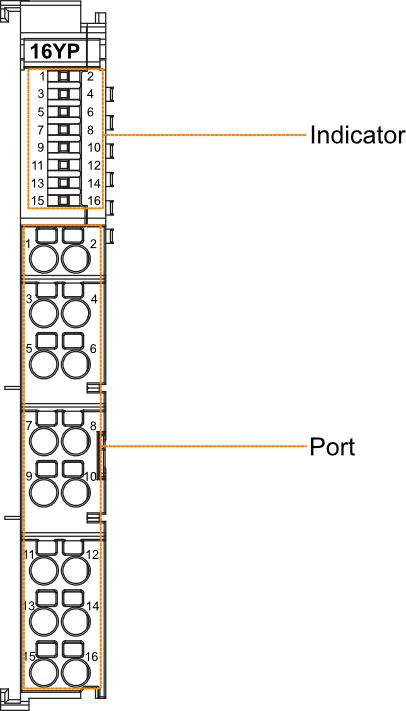

16-channel digital output module (PNP):
| Indicator |
|---|
| led No. | Output | Color | Description |
| 1~16 | Y1~Y16 | Green | 16 Indicators correspond to Y1~Y16, which are independent of each other. The states of indicators are on and off. - on: Output a high level signal
- off: No output signal
|
| Port |
|---|
| Pin No. | Output | Pin No. | Output |
| 1 | Y1 | 2 | Y2 |
| 3 | Y3 | 4 | Y4 |
| 5 | Y5 | 6 | Y6 |
| 7 | Y7 | 8 | Y8 |
| 9 | Y9 | 10 | Y10 |
| 11 | Y11 | 12 | Y12 |
| 13 | Y13 | 14 | Y14 |
| 15 | Y15 | 16 | Y16 |
8-channel digital output module (NPN):
| Indicator |
|---|
| led No. | Output | Color | Description |
| 1~8 | Y1~Y8 | Green | 8 Indicators correspond to Y1~Y8, which are independent of each other. The states of indicators are on and off. - on: Output a low level signal
- off: No output signal
|
| Port |
|---|
| Pin No. | Output | Pin No. | Output |
| 1 | Y1 | 2 | Y2 |
| 3 | Y3 | 4 | Y4 |
| 5 | Y5 | 6 | Y6 |
| 7 | Y7 | 8 | Y8 |
16-channel digital output module (NPN):
| Indicator |
|---|
| led No. | Output | Color | Description |
| 1~16 | Y1~Y16 | Green | 16 Indicators correspond to Y1~Y16, which are independent of each other. The states of indicators are on and off. - on: Output a low level signal
- off: No output signal
|
| Port |
|---|
| Pin No. | Output | Pin No. | Output |
| 1 | Y1 | 2 | Y2 |
| 3 | Y3 | 4 | Y4 |
| 5 | Y5 | 6 | Y6 |
| 7 | Y7 | 8 | Y8 |
| 9 | Y9 | 10 | Y10 |
| 11 | Y11 | 12 | Y12 |
| 13 | Y13 | 14 | Y14 |
| 15 | Y15 | 16 | Y16 |
Unit: mm
4-channel digital output module (Relay):
8-channel digital output module:
16-channel digital output module:

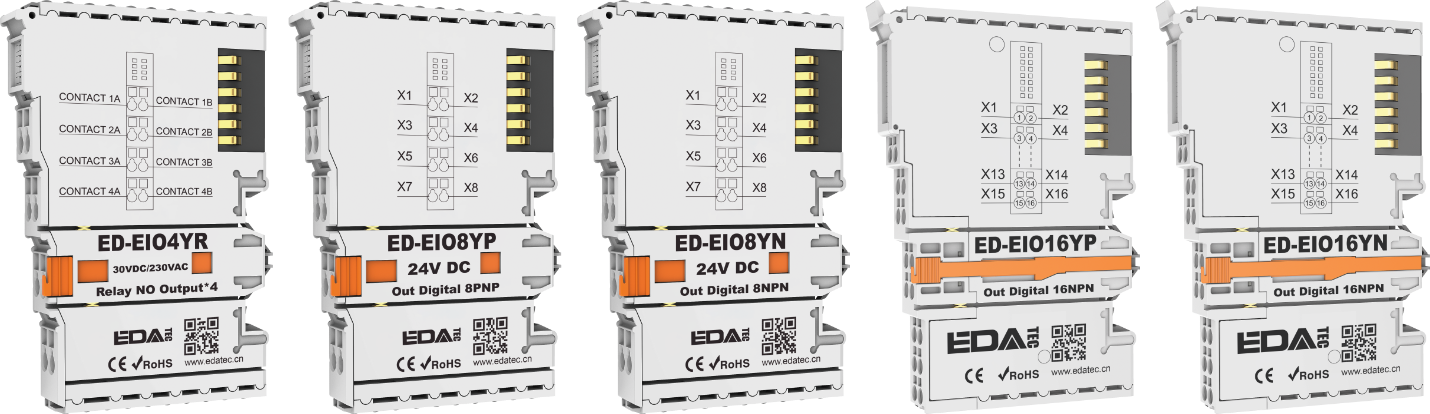

| Model | Description |
|---|
| ED-EIO4YR | 4-channel digital output module (Relay) |
| ED-EIO8YP | 8-channel digital output module (PNP) |
| ED-EIO8YN | 8-channel digital output module (NPN) |
| ED-EIO16YP | 16-channel digital output module (PNP) |
| ED-EIO16YN | 16-channel digital output module (NPN) |
| Model | Description |
|---|
| ED-PLC2010 | EtherCAT Master based on CODESYS |
| ED-EIOBRG-EC | EtherCAT Coupler |
- 1 x EtherCAT Digital Output Module
TIP
- DIN-rail is not included in the box, the following is intended as an installation illustration only.
- Before you start installing, please turn off the power to the module.
- If you encounter a situation where the module cannot be installed, please do not force the installation to avoid damaging the module.
Steps
The following is an example of the installation of an 8-terminal module only.
- Align the notches in the I/O module.
- Secure the I/O module to the DIN-rail by pushing the I/O module in the direction of the arrow onto the DIN snap pin.
TIP
- Before you start installing, please turn off the power and disconnect the cable to the module.
- If you encounter a situation where the module cannot be installed, please do not force the installation to avoid damaging the module.
Steps
The following is an example of the dismantling of an 8-terminal module only.
- Hold the snap pin of the I/O module by hand and then pull it out in the direction of the arrow to disengage the module from the DIN-rail.
