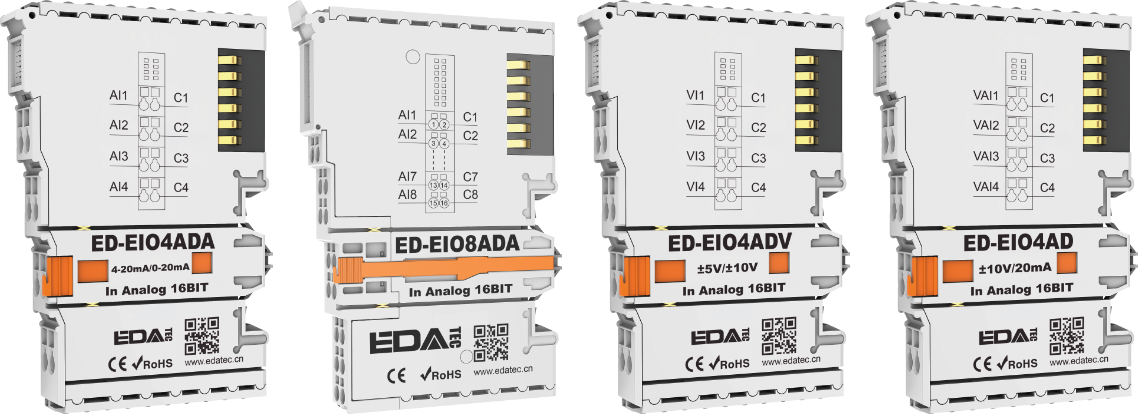

EtherCAT Analog Input Modules

  • 4-channel analog input (current/voltage module) or 8-channel analog input (current module)
  • Each channel is equipped with the LED for an operation check
  • Signal current supports 4~20mA/0~20mA
  • Signal voltage supports -5~5V/0~10V/-10~10V
  • 16-bit high-precision analog input
  • Plug-in construction, DIN-rail installation
  • PT removable terminal block for screwless wiring
  • Support cascading up to 32 modules without additional power supply
digital-input

Specifications

Input (current module)
Signal Type Current input
Number of input signal channels 4 8
Input Current Range 0~20mA/4~20mA
Current Dissipation 260mA 400mA
Input Filter Configurable
Input Impedance 100Ω
Resolution 16-bit
Precision 0.1%
Overvoltage Protection Support
Isolation Voltage AC500V on field and digital side, no isolation between channels
Input (voltage module)
Signal Type Voltage input
Number of input signal channels 4
Input Voltage Range -5~5V/0~10V/-10~10V
Current Dissipation 260mA
Input Filter Configurable
Input Impedance ＞500KΩ
Resolution 16-bit
Precision 0.1%
Overvoltage Protection Support
Isolation Voltage AC500V on field and digital side, no isolation between channels
Input (voltage/current mixed module)
Signal Type Voltage/current input
Number of input signal channels 4
Input Range Voltage: -5~5V/0~10V/-10~10V
Current: 0~20mA/4~20mA
Current Dissipation 260mA
Input Filter Configurable
Input Impedance Voltage: ＞500KΩ
Current: 100Ω
Resolution 16-bit
Precision 0.1%
Overvoltage Protection Support
Isolation Voltage AC500V on field and digital side, no isolation between channels
Software
FieldbusEtherCAT
EtherCAT Master Software PlatformCODESYS
Mechanical Characteristics
Dimensions100mm x 67.6mm x 14.8 mm
WeightAbout 51g
Wiring Specifications0.2mm² ～ 1.5mm²
Wiring MethodScrewless
InstallationDIN-rail installation
Environmental & Regulatory
Operating Temperature-10℃ ~ 55℃
Storage Temperature-20℃ ~ 85℃
Ambient Humidity5% ~ 95% (non-condensing)
Air Pressure≥ 795 hPa (altitude ≤ 2000 m), compliant with IEC 61131-2
Overvoltage Categories I
Protection ClassIP20
CertificationsCE and RoHS

Interface Definition

4-channel analog input (current module):

4ada-led
Indicator
led No.InputColorDescription
1~4AI1/C1~AI4/C4Green4 indicators correspond to AI1/C1~AI4/C4, which are independent of each other. The states of indicators are on, blink and off.
  • on: the module is powered on
  • blink: corresponding channel detects input as 0~20mA/4~20mA
  • off: the module is not powered on
Port
Pin No.InputPin No.Input
1AI12C1
3AI24C2
5AI36C3
7AI48C4

8-channel analog input (current module):

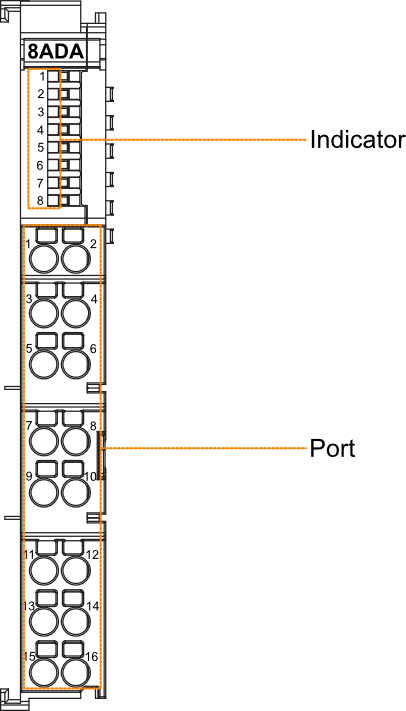

8ada-led
Indicator
led No.InputColorDescription
1~8AI1/C1~AI8/C8Green8 indicators correspond to AI1/C1~AI8/C8, which are independent of each other. The states of indicators are on, blink and off.
  • on: the module is powered on
  • blink: corresponding channel detects input as 0~20mA/4~20mA
  • off: the module is not powered on
Port
Pin No.InputPin No.Input
1AI12C1
3AI24C2
5AI36C3
7AI48C4
9AI510C5
11AI612C6
13AI714C7
15AI816C8

4-channel analog input (voltage module):

4adv-led
Indicator
led No.InputColorDescription
1~4VI1/C1~VI4/C4Green4 indicators correspond to VI1/C1~VI4/C4, which are independent of each other. The states of indicators are on, blink and off.
  • on: the module is powered on
  • blink: corresponding channel detects input as -5~5V/0~10V/-10~10V
  • off: the module is not powered on
Port
Pin No.InputPin No.Input
1VI12C1
3VI24C2
5VI36C3
7VI48C4

4-channel analog input (voltage/current mixed module):

4ad-led
Indicator
led No.InputColorDescription
1~4VAI1/C1~VAI4/C4Green4 indicators correspond to VI1/C1~VI4/C4, which are independent of each other. The states of indicators are on, blink and off.
  • When used as a voltage input channel:
    • on: the module is powered on
    • blink: corresponding channel detects input as -5~5V/0~10V/-10~10V
    • off: the module is not powered on
  • When used as a current input channel:
    • on: the module is powered on
    • blink: corresponding channel detects input as 0~20mA/4~20mA
    • off: the module is not powered on
Port
Pin No.InputPin No.Input
1VAI12C1
3VAI24C2
5VAI36C3
7VAI48C4

Dimensions

Unit: mm

4-channel analog input modules:

4ada-4adv-4ad-dimension

8-channel analog input module:

8ada-dimension

Ordering Code

ModelDescription
ED-EIO4ADA4-channel analog input module (current), 4-20mA/0-20mA, configurable
ED-EIO8ADA8-channel analog input module (current), 4-20mA/0-20mA, configurable
ED-EIO4ADV4-channel analog input module (voltage), -5~5V/0~10V/-10~10V, configurable
ED-EIO4AD4-channel analog input module (voltage/current mixed), -5~5V/0~10V/-10~10V/4-20mA/0-20mA, configurable

Adapted PLC Unit or EtherCAT Coupler

ModelDescription
ED-PLC2010EtherCAT Master based on CODESYS
ED-EIOBRG-ECEtherCAT Coupler

Packing List

  • 1 x EtherCAT Analog Input Module

Installation

TIP

  • DIN-rail is not included in the box, the following is intended as an installation illustration only.
  • Before you start installing, please turn off the power to the module.
  • If you encounter a situation where the module cannot be installed, please do not force the installation to avoid damaging the module.

Steps

The following is an example of the installation of an 8-terminal module only.

  1. Align the notches in the I/O module.
installing-1
  1. Secure the I/O module to the DIN-rail by pushing the I/O module in the direction of the arrow onto the DIN snap pin.
installing-2

Dismantling

TIP

  • Before you start installing, please turn off the power and disconnect the cable to the module.
  • If you encounter a situation where the module cannot be installed, please do not force the installation to avoid damaging the module.

Steps

The following is an example of the dismantling of an 8-terminal module only.

  1. Hold the snap pin of the I/O module by hand and then pull it out in the direction of the arrow to disengage the module from the DIN-rail.
installing-3
