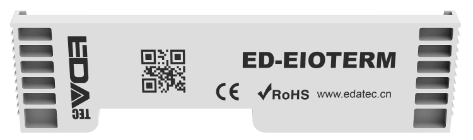

Bus End Cover

  • Covers the E-bus contacts of the EtherCAT Bus End I/O module and protects the E-bus contacts mechanically and electrically
  • Plug-in construction, screwless wiring
term

Specifications

Mechanical Characteristics
Dimensions100mm x 27.5mm x 7.2mm
WeightAbout 8g
Environmental & Regulatory
Operating Temperature-10℃ ~ 55℃
Storage Temperature-20℃ ~ 85℃
Ambient Humidity5% ~ 95% (non-condensing)
Air Pressure≥ 795 hPa (altitude ≤ 2000 m), compliant with IEC 61131-2
Protection ClassIP20
CertificationsCE and RoHS

Dimensions

Unit: mm

term-dimension

Ordering Code

ModelDescription
ED-EIOTERMBus End Cover

Packing List

  • 1 x Bus End Cover

Installation

TIP

  • A Bus End Cover is required on the right side of I/O module at the end of each EtherCAT bus station.
  • Before you start installing, please turn off the power to the system.

Steps

  1. Align the notches in the I/O module and the Bus End Cover.
install-1
  1. Push the Bus End Cover onto the DIN-rail the the direction of the arrow, so that it covers the E-bus contacts of the I/O module and fits it over the DIN-rail.
install-2
