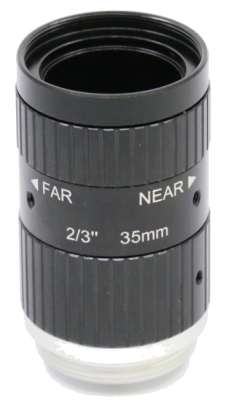

ED-LENS-C-303500-10
2/3" C-Mount 35mm Focal Length Lens
Overview
ED-LENS-C-303500-10 is a C-Mount lens compatible with the Raspberry Pi HQ Camera module. With a 35mm focal length, it supports manual focus and adjustable aperture, providing a 14.8° Horizontal Field of View on 2/3" sensors.
Specifications
| Resolution | 10 Megapixel | |||
| Optical format | 2/3" | |||
| EFL (Effective Focal Length) | 35mm | |||
| Aperture | F2.8-F16, adjustable | |||
| Mount | C-Mount | |||
| Filter Thread | M27×P0.5 | |||
| FOV (Field of View) DxHxV | 2/3" | 1/2" | 1/3" | |
| D | 18.39° | 13.4° | 10.1° | |
| H | 14.8° | 10.8° | 8.1° | |
| V | 11.1° | 8.1° | 6.1° | |
| TV Distortion | -0.172% | -0.077% | -0.0450% | |
| MOD (Minimum Object Distance) | 0.2m~∞ | |||
| BFL (Back Focal Length) | 13.63mm | |||
| Operation | Focus | Manual | ||
| Iris aperture | Manual | |||
| Dimension (mm) | Φ29×46.4 | |||
| Weigh (g) | 65 | |||
| Working Temperature | -20ºC to +60ºC | |||
Mechanical Drawing
| Unit | mm | |||
| Size Tolerance | 0-10±0.05, 10-30±0.10, 30-120±0.20 | |||
| Angle Tolerance | ±2° | |||
Actual Photo
Below picture was taken by camera module with this lens in the lab, it just gives a reference about the Field of View and resolution of the lens, it may be different with the pictures taken in different light environment and other different conditions.

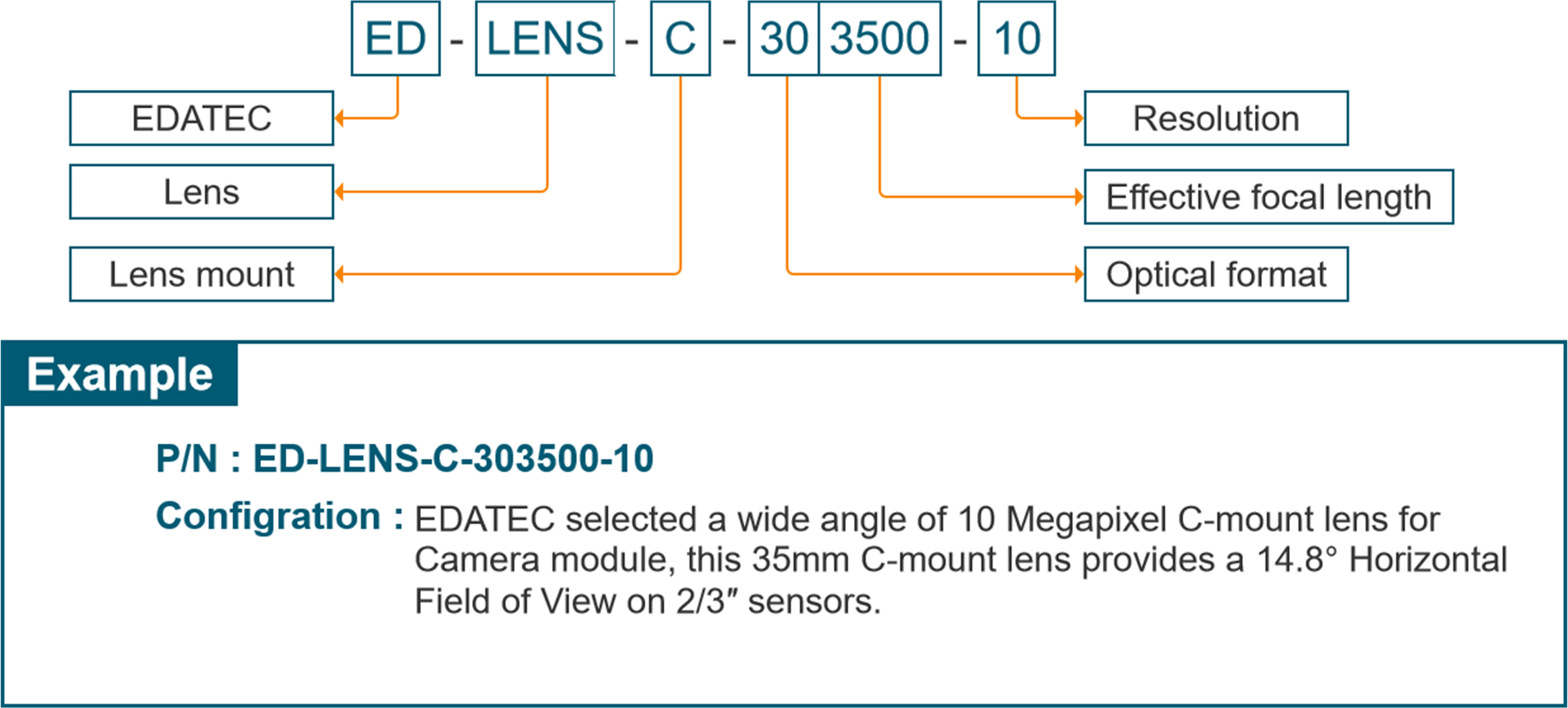

Ordering Code
Selection Guide
More details about Ordering Code, please check Selection Guide.
