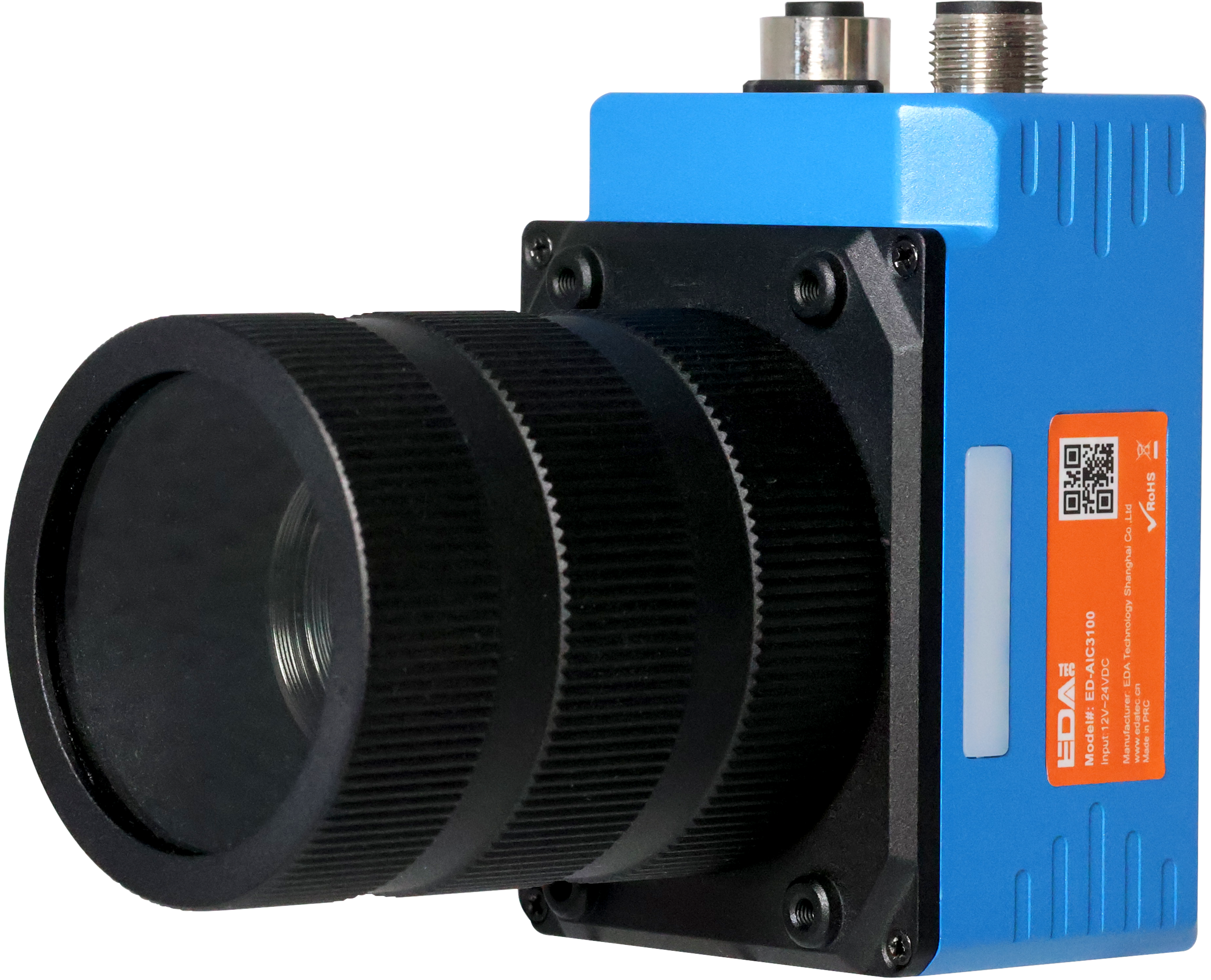

Industrial Smart Camera Based on Raspberry Pi CM5
- Broadcom BCM2712, quad core Cortex-A76 (ARM v8) 64-bit SoC @ 2.4GHz
- Up to 8GB LPDDR4 RAM and 64GB eMMC storage
- High-resolution image sensor of 12 million pixels and up to 70 FPS sampling rate for ultra-fast image acquisition
- Support C-Mount lens
- High-quality industrial blue aluminum alloy case, supporting bracket mounting
|  |
| System |
|---|
| CPU | Broadcom BCM2712, quad core Cortex-A78 (ARM v8) 64-bit SoC @ 2.4GHz |
| VPU | H.265 (HEVC), up to 4Kp60 decode |
| GPU | OpenGL ES 3.1 & Vulkan 1.2 |
| Memory | Options for 2GB, 4GB, 8GB LPDDR4-4267 SDRAM |
| Storage | Options for 16GB, 32GB, 64GB eMMC storage |
| Software |
|---|
| Operating System | Raspberry Pi OS (Desktop) 64-bit |
| Communication Protocol | Ethernet/IP, Modbus TCP, TCP/IP and MC |
| Panel I/O |
|---|
| Power & IO (12-Pin) | 1 x Power & IO port, 12-Pin aviation connector, which is used to connect the power & IO cable (12-Pin M12 connector to bare wire) to access external signals. The signals include power supply, RS232, DI and DO. - 1 x DC IN: 2-Pin, it supports DC 24V input and the signal is defined as DC-/DC+.
- 1 x RS232: 3-Pin, the signal is defined as TX/RX/GND.
- 1 x DI: 2-Pin, the signal is defined as DI/COMMON.
- 2 x DO: 3-Pin, the signal is defined as DO1/DO2/COMMON.
- 1 x Trigger: External trigger signal
- 1 x External Strobe: Control signal of screen flicker
|
| Communication (8-Pin) | 1 x Communication port, 8-Pin aviation connector, which is used to connect the ethernet cable (8-Pin M12 connector to RJ45 connector) to enable camera to access the network. |
| Lens | C-Mount Lens |
| Buttons and Indicators |
|---|
| TUNE | 1 x Adjusting button, one-click button for Auto Focus |
| TRIG | 1 x Trigger button, one-click button for camera trigger |
| Power indicator | 1 x Power indicator, which is used to check the status of camera power-on and power-off. |
| Fault indicator | 1 x Fault indicator, which is used to check the fault status of camera. |
| Working status indicator | 1 x Working status indicator, which is used to check the working status of camera. |
| Network indicator | 2 x Network indicators, which is used to view the status of network connection and data communications. |
| Performance Characteristics |
|---|
| Image Sensor | 12 million pixels |
| Sampling Rate | Up to 70 FPS |
| Electrical Characteristics |
|---|
| Input Voltage | DC 24V (±10%)
A DC 24V 2A power adapter is recommended. |
| Power Consumption | 36W (Max) |
| Mechanical Characteristics |
|---|
| Dimensions | 85mm x 60mm x 108.9mm |
| Weight | About 400g |
| Installation | Mouting bracket (optional) |
| Environmental & Regulatory |
|---|
| Operating Temperature | 0°C ~ 45°C |
| Storage Temperature | -4°C ~ 60°C |
| Ambient humidity | 5% ~ 90% (non-condensing) |
| Protection degree | IP65 |
| Shock resistance | EN 60068-2-27, 30 g; 11ms; 3 impacts per axial direction |
| Vibration resistance | EN 60068-2-6, 14 mm @ 2 ~ 10 Hz, 1.5mm @ 13 ~ 55 Hz
2 g @ 70 ~ 500 Hz, 2-way 2 hours per axial direction |
Unit: mm
Optional cables and mounting accessories are available.
| Ordering Code | Description | Picture |
|---|
| ED-ACC-AIC-ETH-A-03 | 3m ethernet cable of 8-Pin M12 male connector to RJ45 connector |  |
| ED-ACC-AIC-ETH-A-05 | 5m ethernet cable of 8-Pin M12 male connector to RJ45 connector |
| ED-ACC-AIC-ETH-A-10 | 10m ethernet cable of 8-Pin M12 male connector to RJ45 connector |
| ED-ACC-AIC-ETH-A-15 | 15m ethernet cable of 8-Pin M12 male connector to RJ45 connector |
| ED-ACC-AIC-PWR-A-03 | 3m power&IO cable of 8-Pin M12 female connector to bare wire |  |
| ED-ACC-AIC-PWR-A-05 | 5m power&IO cable of 8-Pin M12 female connector to bare wire |
| ED-ACC-AIC-PWR-A-10 | 10m power&IO cable of 8-Pin M12 female connector to bare wire |
| ED-ACC-AIC-PWR-A-15 | 15m power&IO cable of 8-Pin M12 female connector to bare wire |
| ED-ACC-AIC-DW-FIX001 | Mounting Bracket for fixing device |  |
| ED-ACC-AIC-DW-FIX002 | 3 x M4*8 Screws (with 3 spring washers and 3 flat washers)
1 x M6*10 Screw (with 1 spring washer and 1 flat washer) |
