ED-VESA-2T4
VESA Adapter Plate

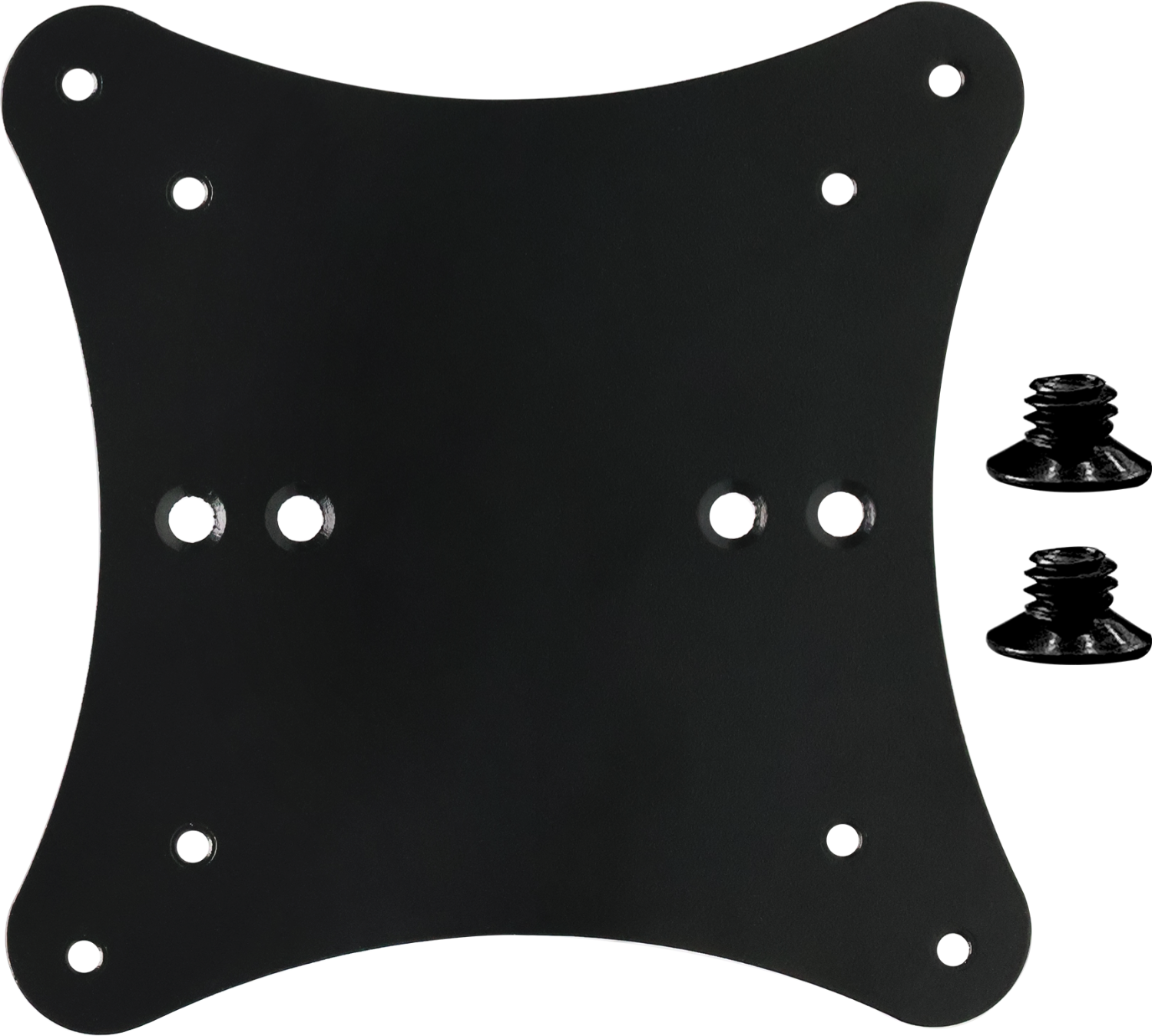

The ED-VESA-2T4 is a VESA adapter plate that converts the 2 mounting holes on a device into a standard 4-hole VESA interface, making it compatible with various VESA-standard mounts.
Specifications
| Basic Parameters | |
|---|---|
| Material | Sheet metal |
| Color | Black |
| Weight | About 90g |
| Max Load Capacity | 10kg |
| VESA Hole Pattern | 75mm/100mm |
| Applicable Devices | ED-HMI2002-070C ED-HMI2002-101C ED-HMI3010-070C ED-HMI3010-101C |

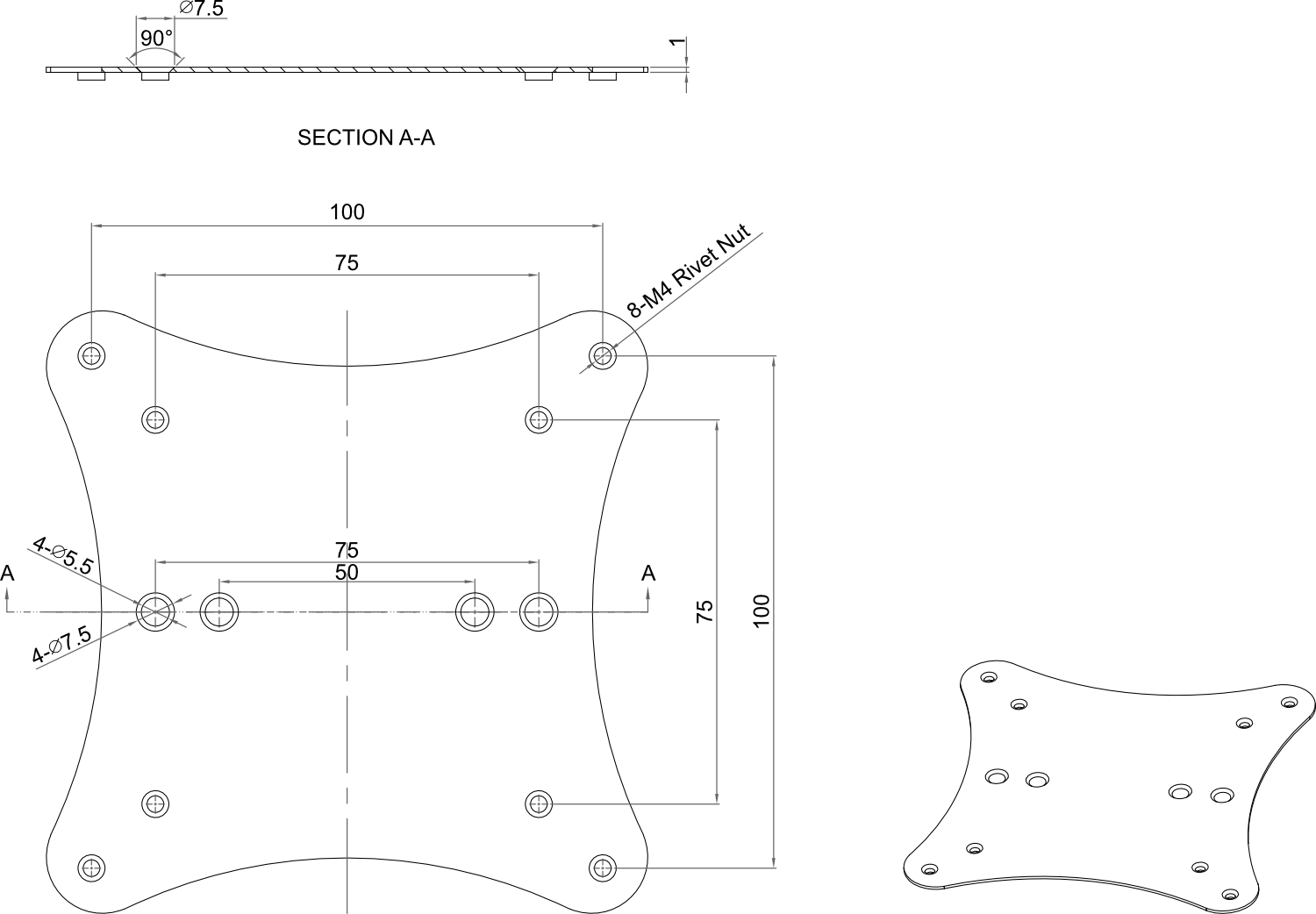

Dimensions
Unit: mm
Ordering Code
| Model | Description |
|---|---|
| ED-VESA-2T4 | VESA Adapter Plate |
Packing List
- 1 x ED-VESA-2T4 (with 2 M4*4 screws)
Installation
Parts List:
| NO. | Name | Quantity (PCS) |
|---|---|---|
| ① | ED-VESA-2T4 | 1 |
| ② | M4*4 screw | 2 |
| ③ | ED-HMI3010-101C (Not provided) | 1 |
TIP
Here, the ED-HMI3010-101C device is used as an example for illustration purposes only.
Preparation:
A Phillips screwdriver has been obtained.
Steps:
- Align the two mounting holes with 75mm hole spacing on the VESA adapter plate with the two mounting holes on the ED-HMI3010-101C. Then insert two M4*4 screws and tighten them clockwise with a screwdriver to secure the VESA adapter plate to the ED-HMI3010-101C.
- After the adapter plate is installed, the ED-HMI3010-101C device will be compatible with standard VESA mounts featuring either 75mm or 100mm hole patterns.
