ED-ACC-DRBNANO
Mounting Bracket for 35mm DIN Rail
Specifications
| Mechanical Characteristics | |
|---|---|
| Dimensions | 60mm x 2mm x 18mm (WxDxH) |
| Weight Supported | 2.5kg (Max) |
| Temperature | -40°C ~ 190°C |

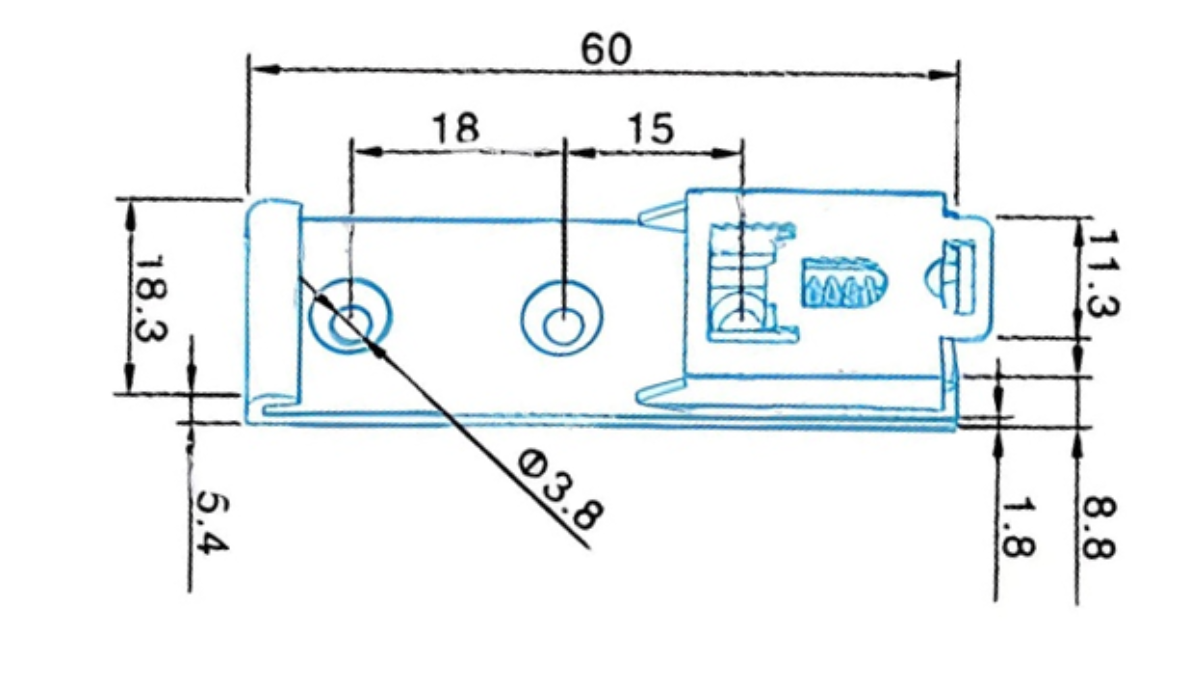

Dimensions
- Unit: mm
Ordering Code
| Model | Description |
|---|---|
| ED-ACC-DRBNANO | Mounting Bracket for 35mm DIN Rail |
Packing List
- 1 x ED-ACC-DRBNANO
Installation
Parts List
| NO. | Name | Quantity (PCS) |
|---|---|---|
| ① | ED-ACC-DRBNANO | 1 |
| ② | M3 Screw (Not provided) | 3 |
| ③ | A device to be installed (Not provided) | 1 |
| ④ | 35mm DIN Rail (Not provided) | 1 |
Steps

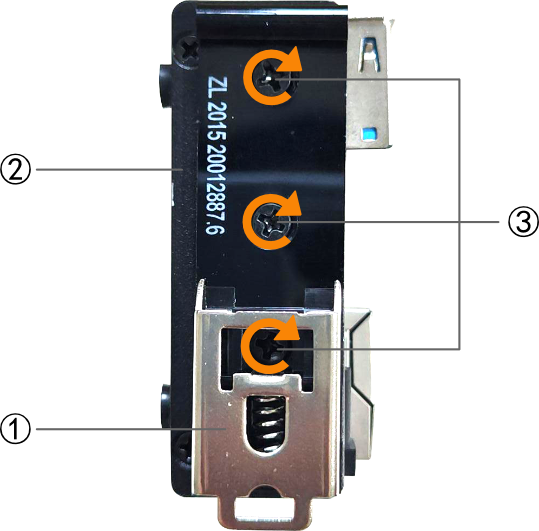

- Align the screw holes of ED-ACC-DRBNANO with the mounting holes of a device to be installed, then insert 3 M3 screws and tighten them clockwise to fix ED-ACC-DRBNANO on the device.
- Put the upper side of ED-ACC-DRBNANO over the upper side of 35mm DIN Rail.

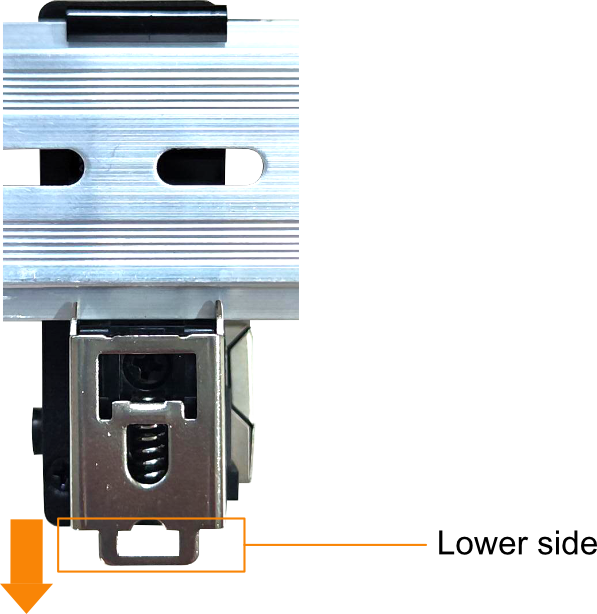

- Hold the lower side of ED-ACC-DRBNANO with your hand and pull it down in the direction of the arrow so that ED-ACC-DRBNANO can be fixed onto 35mm DIN Rail.
