3 Installing Device

This chapter introduces how to install the device.

3.1 DIN-Rail Installation

When the ED-IPC2400 series device leaves the factory, the DIN-rail bracket is installed as standard by default.

Steps:

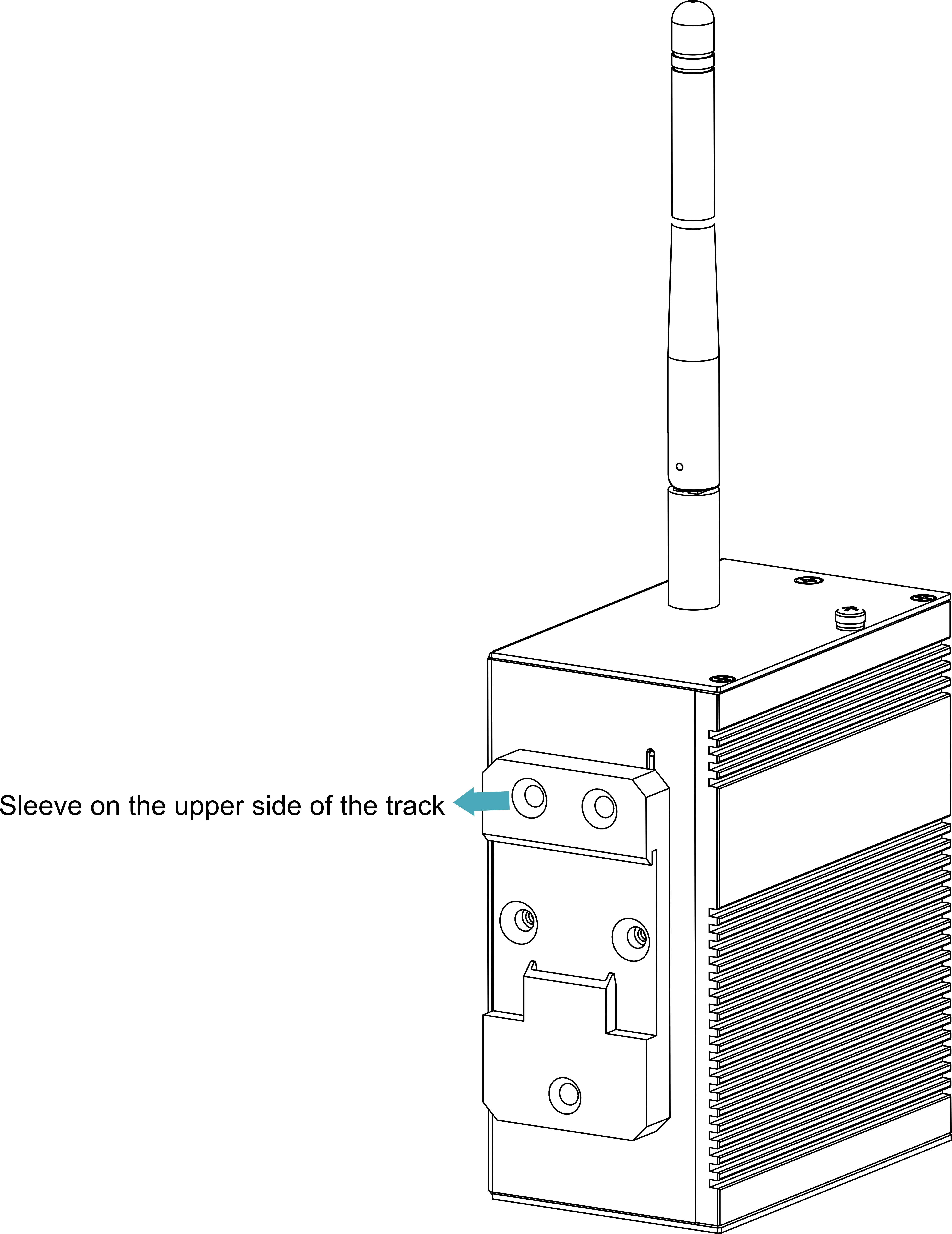

  1. Face the side of the DIN-rail bracket to the rail to be installed, and the upper side of the bracket is sleeved on the upper side of the rail.

​image

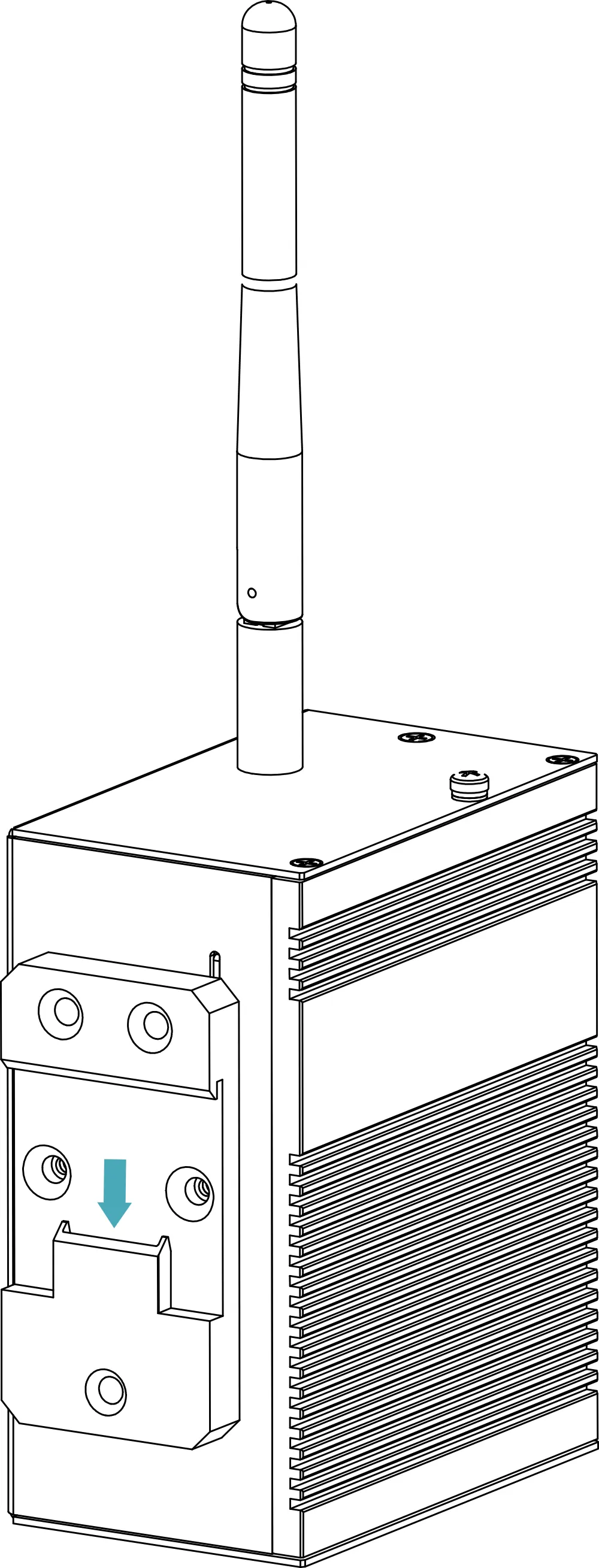

  1. Press down the buckle on the lower side of the DIN-rail bracket until the bracket can be buckled on the rail, and the installation is completed.

​IPC24002
