4 Booting the Device

This chapter introduces how to connect cables and boot the device.

4.1 Connecting Cables

This section describes how to connect cables.

Preparation:

  • Accessories such as display, mouse, keyboard and power adapter that can be used normally have been ready.
  • A network that can be used normally.
  • Get the HDMI cable and network cable that can be used normally.

Schematic diagram of connecting cables:

Please refer to 1.5 Interface for the pin definition of each interface and the specific method of wiring.

4.2 Booting The System For The First Time

The default button control of ED-HMI2320-156c device starts the device. After connecting the power supply, short press the button to start the device. After the device starts successfully, the Raspberry Pi logo will appear in the upper left corner of the screen.

TIP

Default username: pi; default password: raspberry.

4.2.1 Raspberry Pi OS (Desktop)

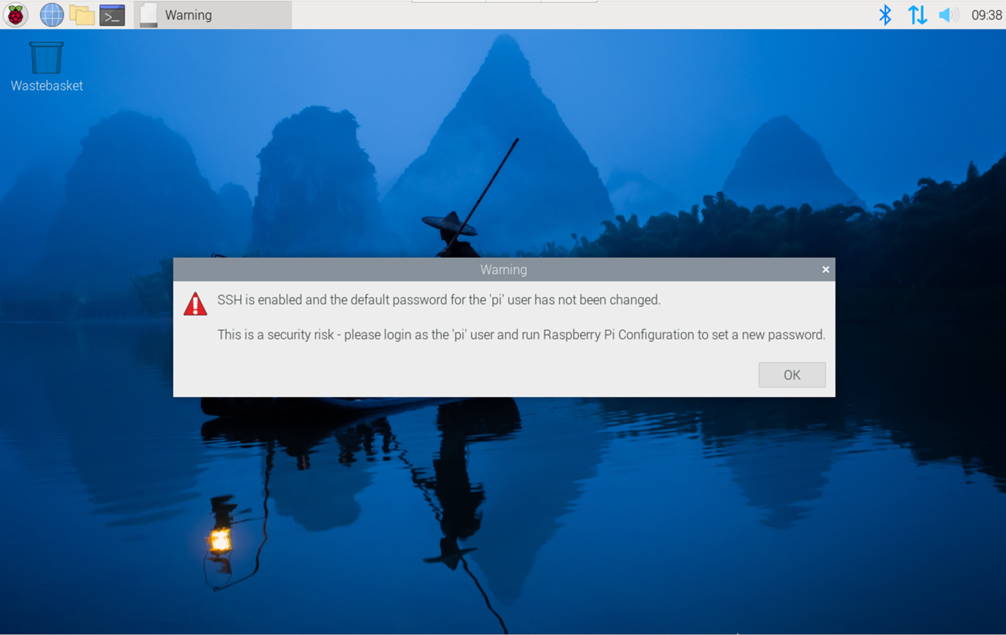

If the Desktop version of the system is installed when the product leaves the factory, after the device is started, it will directly enter the desktop, as shown in the following figure.

image-20240705113347774

4.2.2 Raspberry Pi OS (Lite)

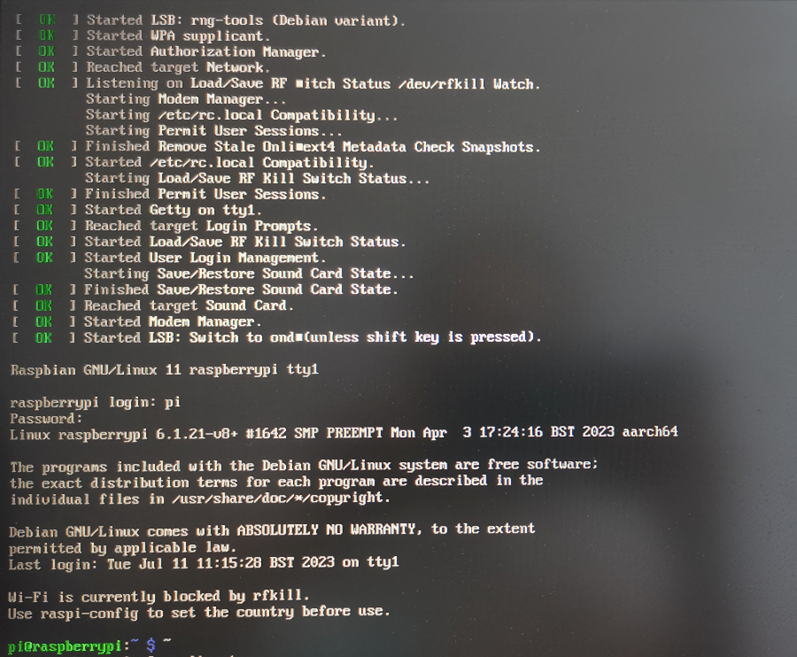

If the Lite version of the system is installed at the factory, the default username pi will be used to automatically log in after the device is started, and the default password is raspberry. The following figure shows that the system has been started normally.

image-20240605094547646
